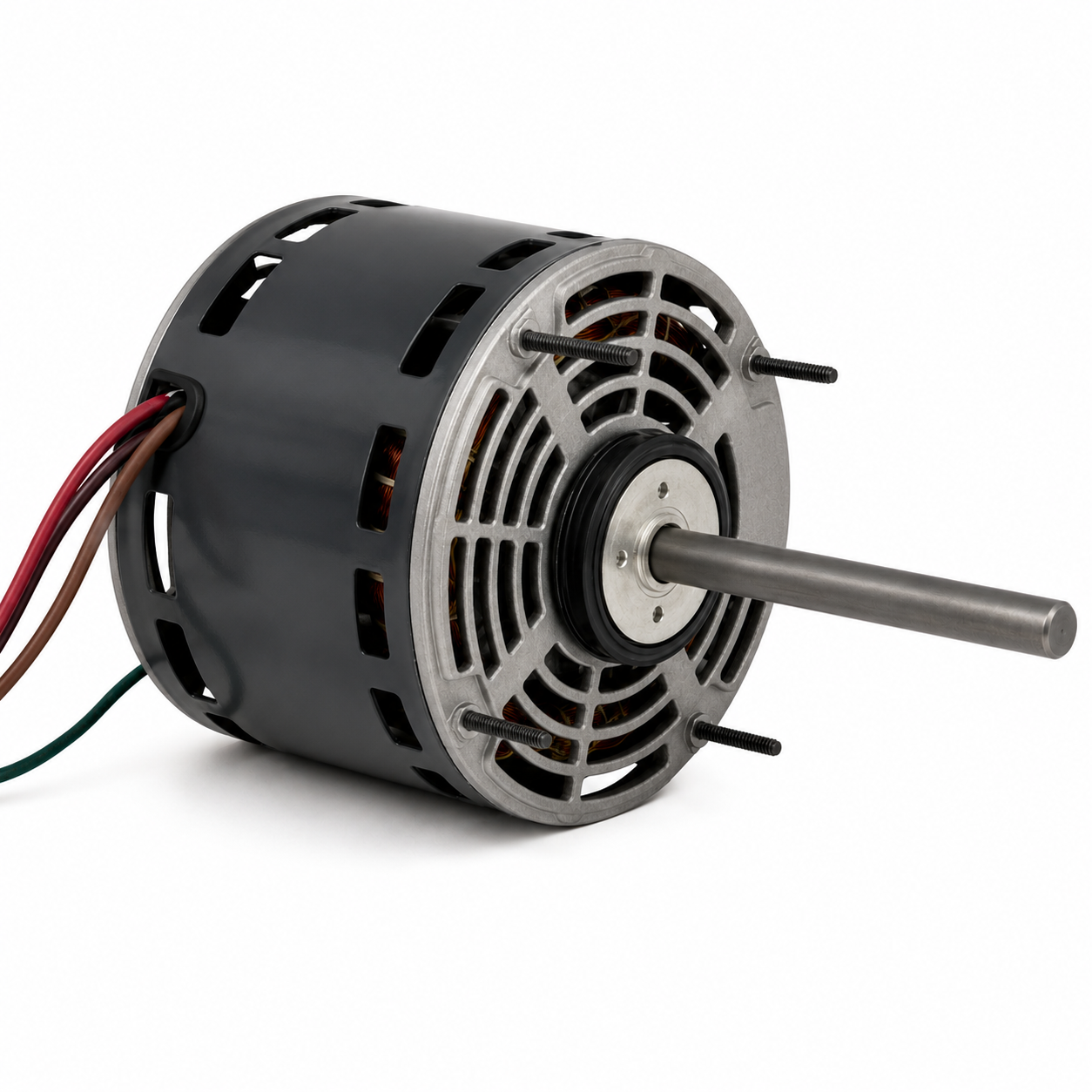

US Motors Fan & Blower Motors (HVAC/R) 1697 - 3/4 HP - 208/230 V - 1625 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 1697 - 3/4 HP - 208/230 V - 1625 RPM - Single phase

$379.00 CAD
$379.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1697

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 3/4 HP

RPM : 1625

Voltage : 208/230 V

Phase : Single

Frame : 48YZ

Mounting : Ring / Stud Mount

  • Horsepower : 3/4
  • Amps : 4.4-4.2
  • Frequency : 60 Hz
  • Length : 5.60"
  • "C" Dim. : 11.70"
  • Enclosure : Open Air Over
  • Shaft Dim. : 1/2" x 5.00"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Bearings : Self Aligning Bearing
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Feature(s) : Class 'A' Insulation, 2.5” Diameter Hub Rings Included, SAB Bearings Have All Angle Thrust System, 24” Leads
  • Weight (lbs.) : 19
  • Reference : A.O. Smith Century FD1074, Marathon X022, Universal Electric HE2H132N, HE2H132, 77-041-000
