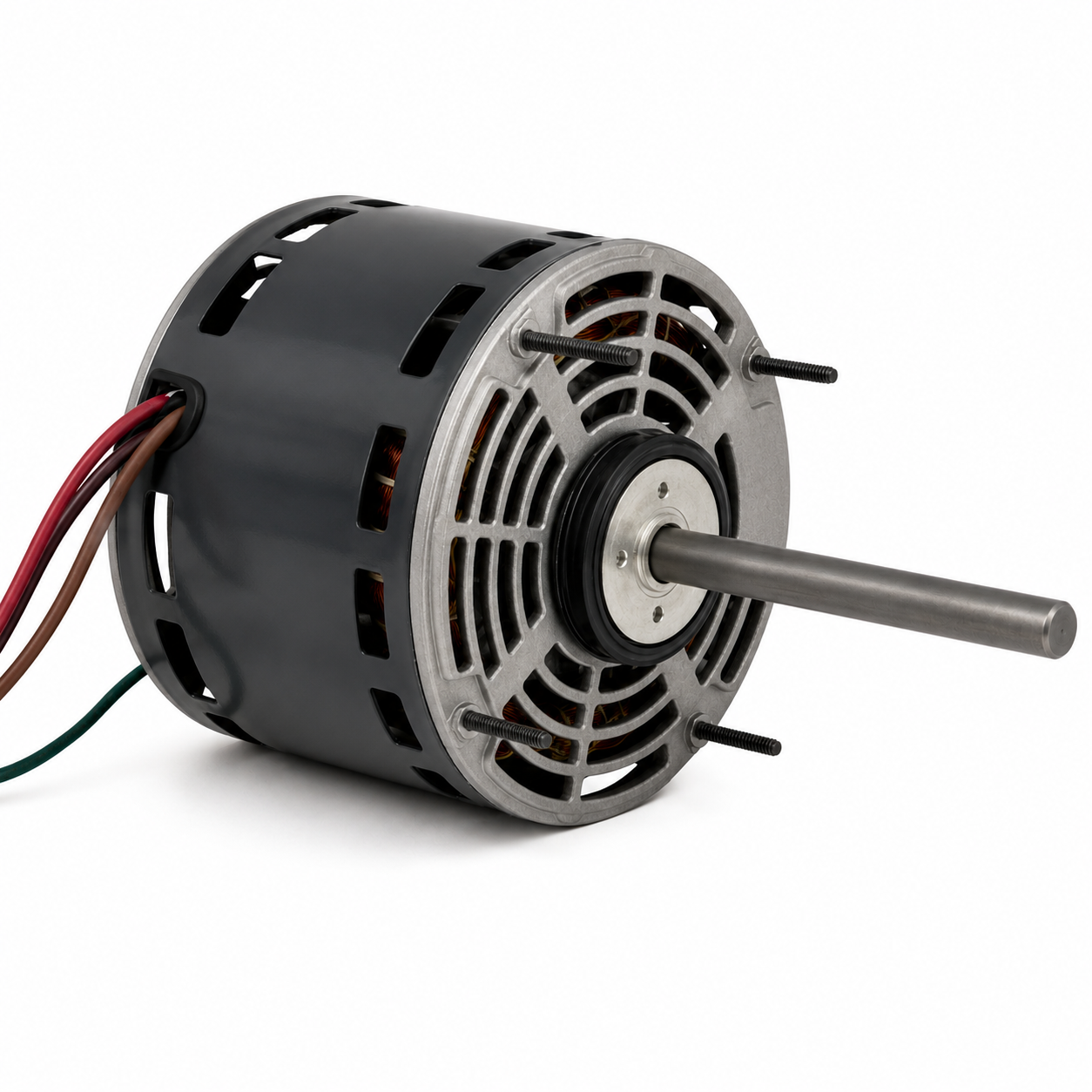

US Motors Fan & Blower Motors (HVAC/R) 1693 - 1/3 HP - 208/230 V - 1625 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 1693 - 1/3 HP - 208/230 V - 1625 RPM - Single phase

$275.00 CAD
$275.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1693

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 1625

Voltage : 208/230 V

Phase : Single

Frame : 48Y

Mounting : Ring / Stud Mount

  • Horsepower : 1/3
  • Amps : 2.10-1.40
  • Frequency : 60 Hz
  • Length : 4.70"
  • "C" Dim. : 10.40"
  • Enclosure : Open Air Over
  • Shaft Dim. : 1/2" x 5.00"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Bearings : Self-Aligning Bearings
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Feature(s) : Class 'B' Insulation, 2.5" Hub Ring Mount, 24" Leads, SAB Bearings have All Angle Thrust System
  • Weight (lbs.) : 13
  • Référence : Century FD1024, FD1034, 9612, 454, 454A, Fasco 7124-0507, D787
