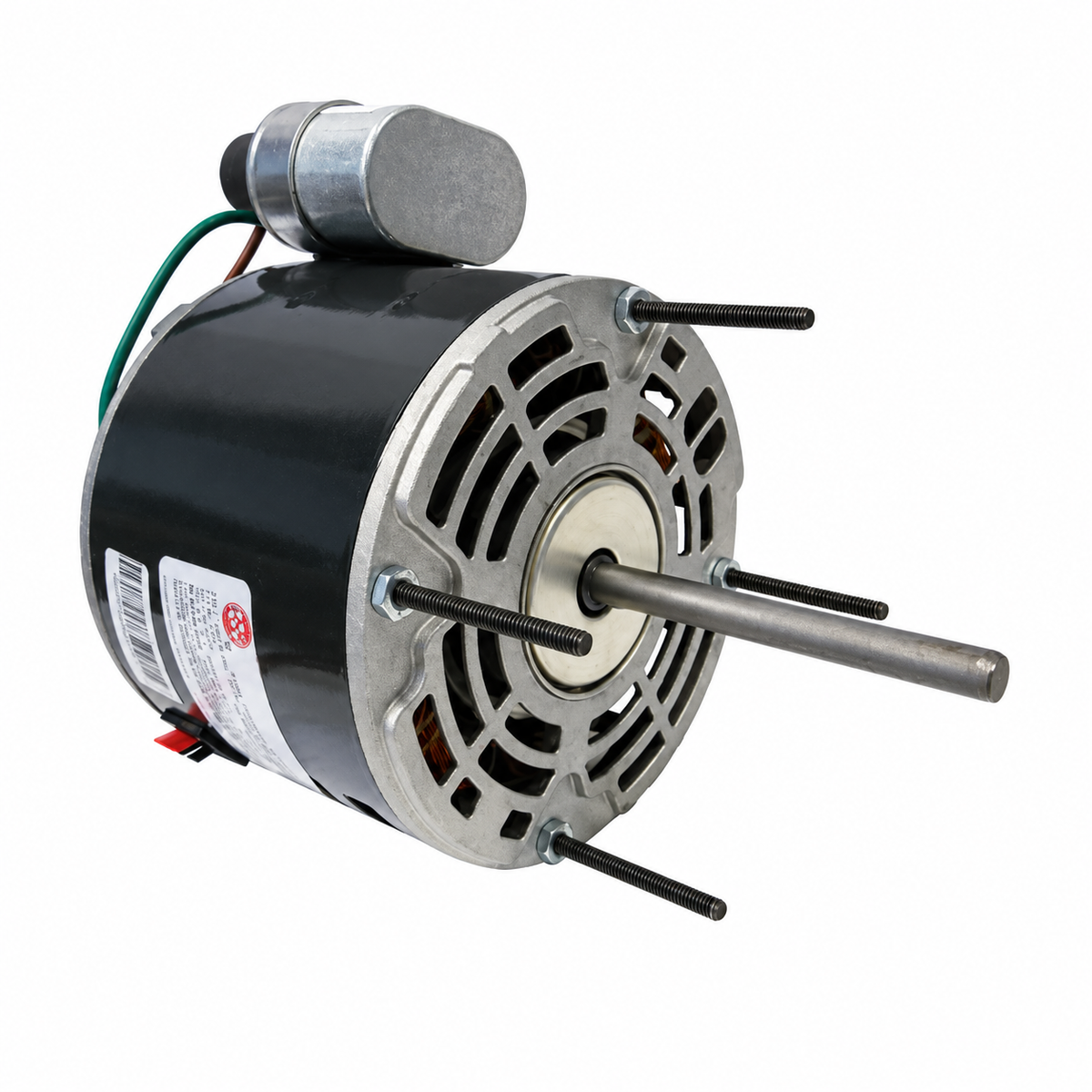

US Motors OEM Replacement Motors (HVAC/R) 1471P - 1/10 HP - 115/208-230 V - 1050 RPM - Single phase

US Motors OEM Replacement Motors (HVAC/R) 1471P - 1/10 HP - 115/208-230 V - 1050 RPM - Single phase

$221.00 CAD
$221.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1471P

Brand : US Motors

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/10 HP

RPM : 1050

Voltage : 115/208-230 V

Phase : Single

Frame : 42Y

Mounting : Hub Mount

  • Horsepower : 1/10
  • Voltage : 115/208-230
  • Amps : 1.70/0.80
  • RPM : 1050
  • Frequency : 60 Hz
  • Length : 3.80"
  • "C" Dim. : 7.60"
  • Enclosure : Open
  • Shaft Dim. : 3/8" x 3.30"
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5.0"
  • Frame : 42Y
  • Bearings : Self-Aligning Bearings
  • Rotation : CWSE
  • Protector : Automatic
  • Service Factor : 1.00
  • Phase : 1
  • Ambient Temp. : 40°C
  • Capacitor Rating : 5.0MFD-370V
  • Feature(s) : Class 'B' Insulation, Hub Mount Bracket (2-1/4")
  • Weight (lbs.) : 8
  • Model Number : K048WHH4398011B
  • Reference : A.O. Smith 326P116 329P191, Century RF6402, Emerson F48ZZSAB2691 1471 F1471, General Electric 5KSP29HK7258S, MacMillan J6125-350/40, Mars 10609, OnniDrive SS2930 J6125-482/32 J6125-482/804, Rotom R2930, Universal Electric 604 606 608
