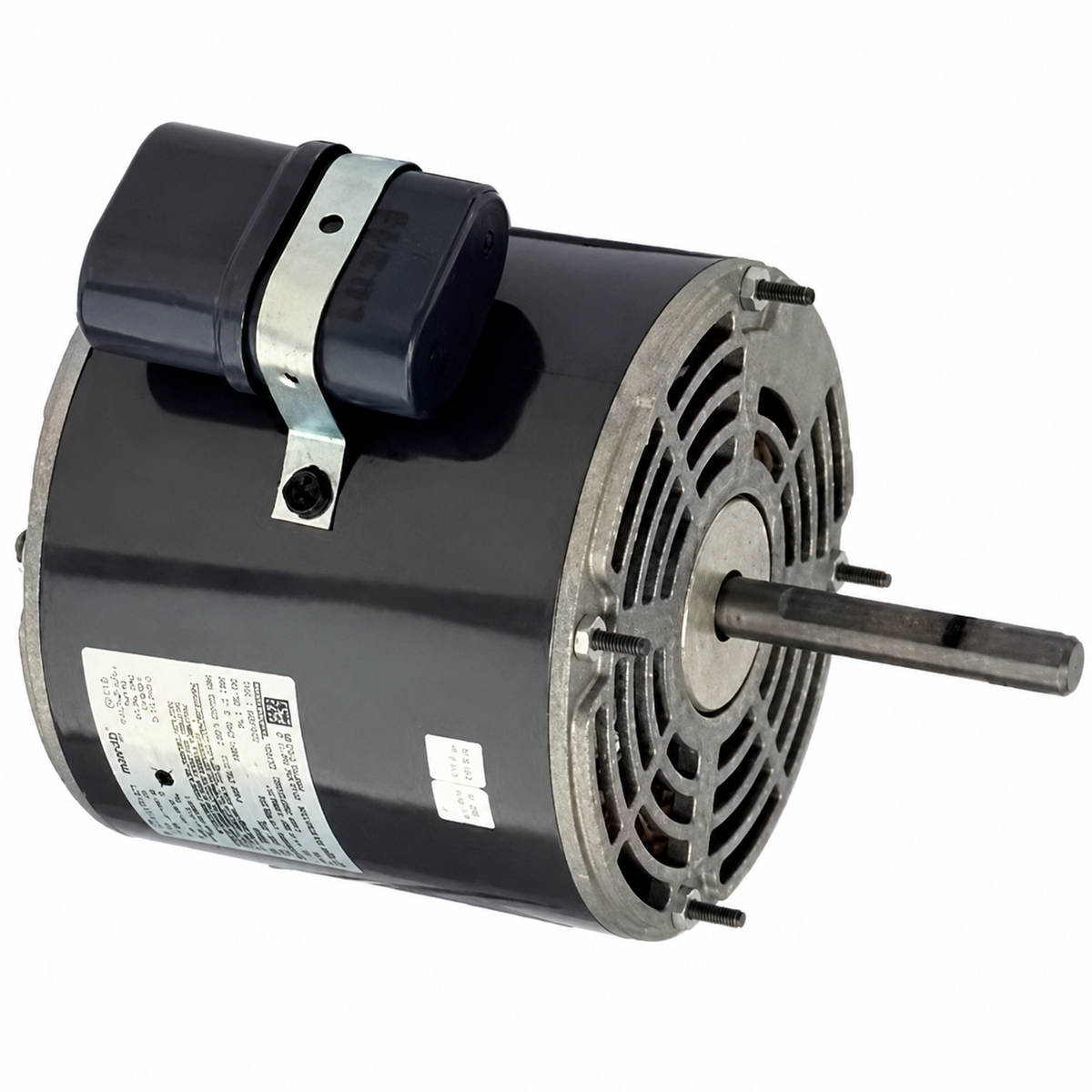

US Motors Fan & Blower Motors (HVAC/R) 1265 - 1/6 HP - 460 V - 1550 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 1265 - 1/6 HP - 460 V - 1550 RPM - Single phase

$410.00 CAD
$410.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1265

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/6 HP

RPM : 1550

Voltage : 460 V

Phase : Single

Frame : 48Y

Mounting : Stud Mount

  • Horsepower : 1/6
  • Amps : 0.55
  • Frequency : 60/50 Hz
  • Length : 4-1/16"
  • "C" Dim. : 7-1/8"
  • Enclosure : Open
  • Shaft Dim. : 1/2" x 3-1/16"
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5-5/8"
  • Bearings : Self-Aligining Bearing
  • Rotation : CWLE
  • Protector : Automatic
  • Ambient Temp. : 50°C
  • Feature(s) : Class 'B' Insulation, Thru-Bolts
  • Weight (lbs.) : 9
