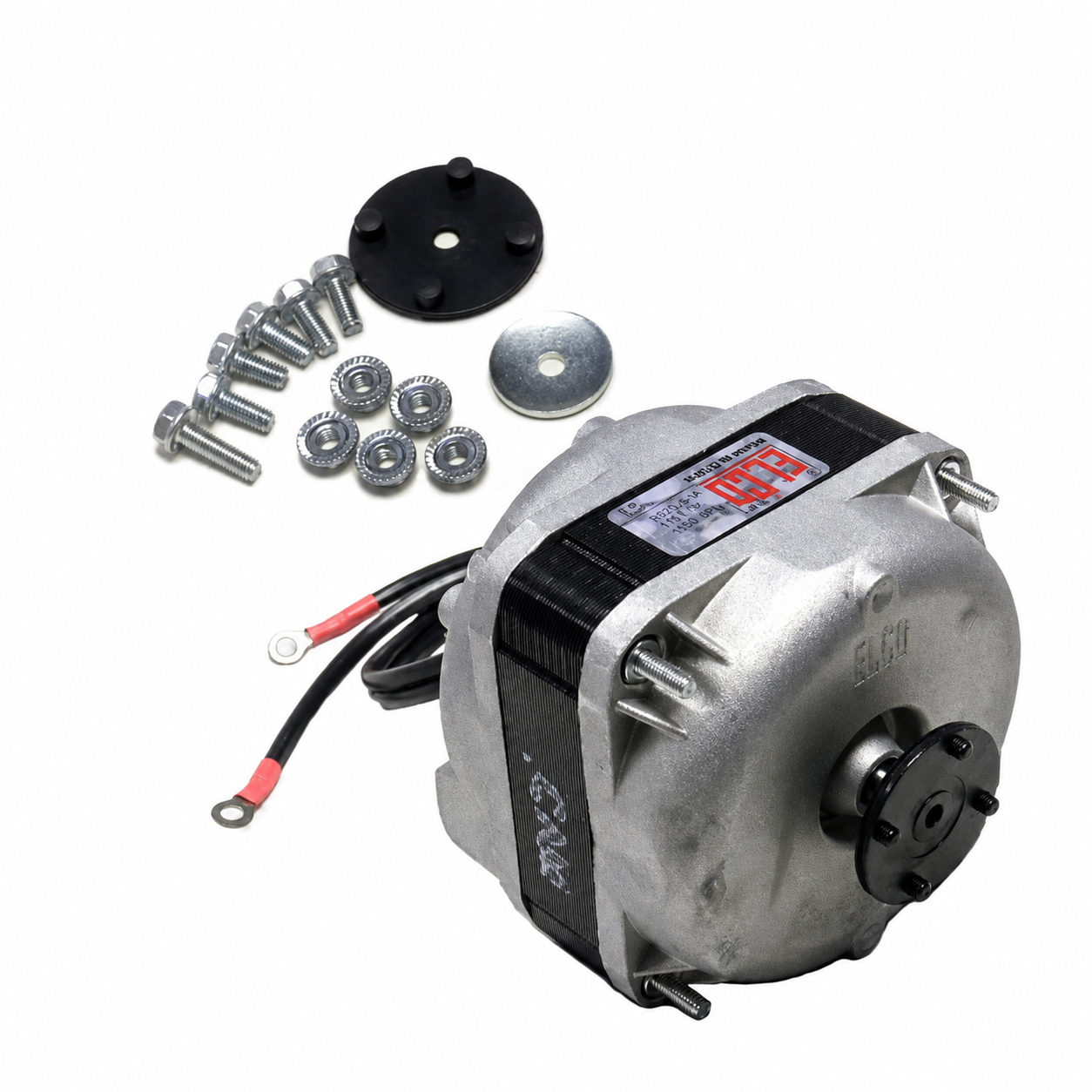

Elco Refrigeration Motors (HVAC/R) EC9W230 - 9 Watt - 230 V - 1550 RPM - Single phase

Elco Refrigeration Motors (HVAC/R) EC9W230 - 9 Watt - 230 V - 1550 RPM - Single phase

$67.00 CAD
$67.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : EC9W230

Brand : Elco

HVAC : Refrigeration Motors (HVAC/R)

Horsepower : 9 Watt

RPM : 1550

Voltage : 230 V

Phase : Single

Frame : 3.3

Mounting : Stud Mount

  • Watts :9
  • Voltage :230
  • Amps :0.35
  • RPM :1550
  • Frequency :60 Hz
  • "C" Dim. :3.05"
  • Enclosure :Totally Enclosed Air Over
  • Type :Shaded Pole
  • Diameter :3.3"
  • Bearings :Sleeve
  • Rotation :CWLE
  • Protector :Thermally Protected
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :3
  • Reference : Elco NUT6B09PUN01 EC-9W230 NUT6B09PUN201, M4Q045-CA01-01 M4Q045-CA25-04 NET2T12PVN001 NU9-20-4, VN10-20/317, OEMotors 9W230
