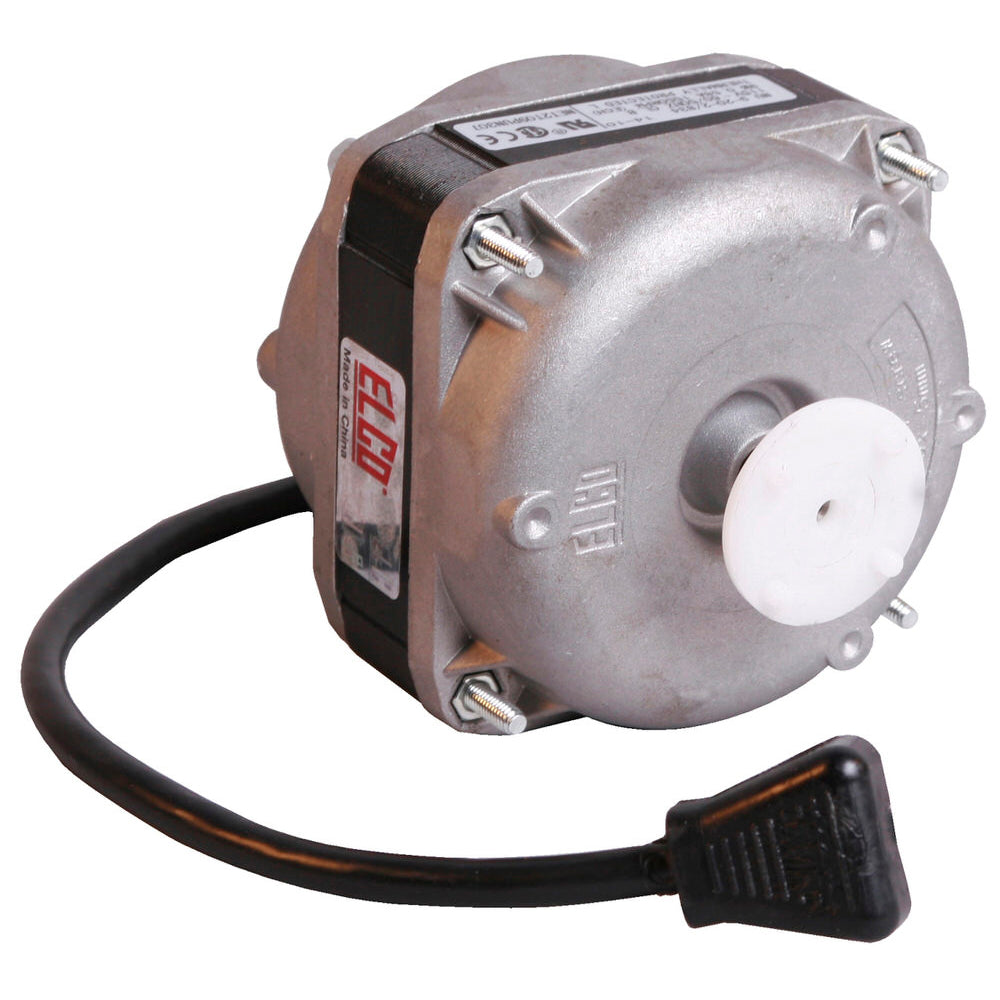

Elco Refrigeration Motors (HVAC/R) EC9W115V834 - 9 Watt - 115 V - 1550 RPM - Single phase

HP: 9W
Voltage: 115
RPM: 1550
AMPs: 0.58
Phase: 1
Rotation: CCWSE
Frame: 3.3
Enclosure: Totally Enclosed Air Over
Speeds: 1
Protector: Senata 150°C cut-off
Ambient Temp: 40°C
Service Factor: 1.00
Shaft Dimensions: 0.275" X 0.49"
Frequency: 60Hz
Diameter: 3.3"
Length: 2.56"
Bearings: Sleeve
Features: One Foot, Front Shroud, 3 Tapped Rear Holes, 21-23" Leads with Molded Plug, Shaft with 4 End-Studs, 3 Pins Lyall Plug
Weight: 3 lbs
References: Elco NET2T09PUN307, Elco NU9-20-2/834
