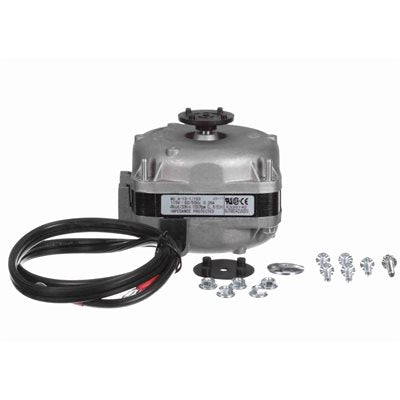

Elco Refrigeration Motors (HVAC/R) EC4W115 - 4 Watt - 115 V - 1550 RPM - Single Phase

Elco Refrigeration Motors (HVAC/R) EC4W115 - 4 Watt - 115 V - 1550 RPM - Single Phase

$61.00 CAD
$61.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : EC4W115

Brand : Elco

HVAC : Refrigeration Motors (HVAC/R)

Horsepower : 4 Watt

RPM : 1550

Voltage : 115 V

Phase : Single

Frame : Unit Bearing

Mounting : Stud Mount

  • Type : Shaded Pole
  • HP : 4 Watt
  • Voltage : 115
  • RPM : 1550
  • Current (Amp) : 0.36
  • Phase : 1
  • Rotation : Counterclockwise Shaft End
  • Frame : Unit Bearing
  • Enclosure : Totally Enclosed Air Over
  • Speeds : 1
  • Protector : Thermally Protected
  • Ambient Temp : 40°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : Hubless X 0.49 in
  • Frequency : 60Hz
  • Diameter : N/A
  • Frame Length : 2.32 in
  • Bearings : Sleeve
  • Capacitor Rating : N/A
  • Reference : Elco 3NU4-13-1 NET2T04PUN301 NET2T04PUN302 NU4-13-1 NU4-13-2/082 NUT6B04ZUN301, Tecumseh TFMel
