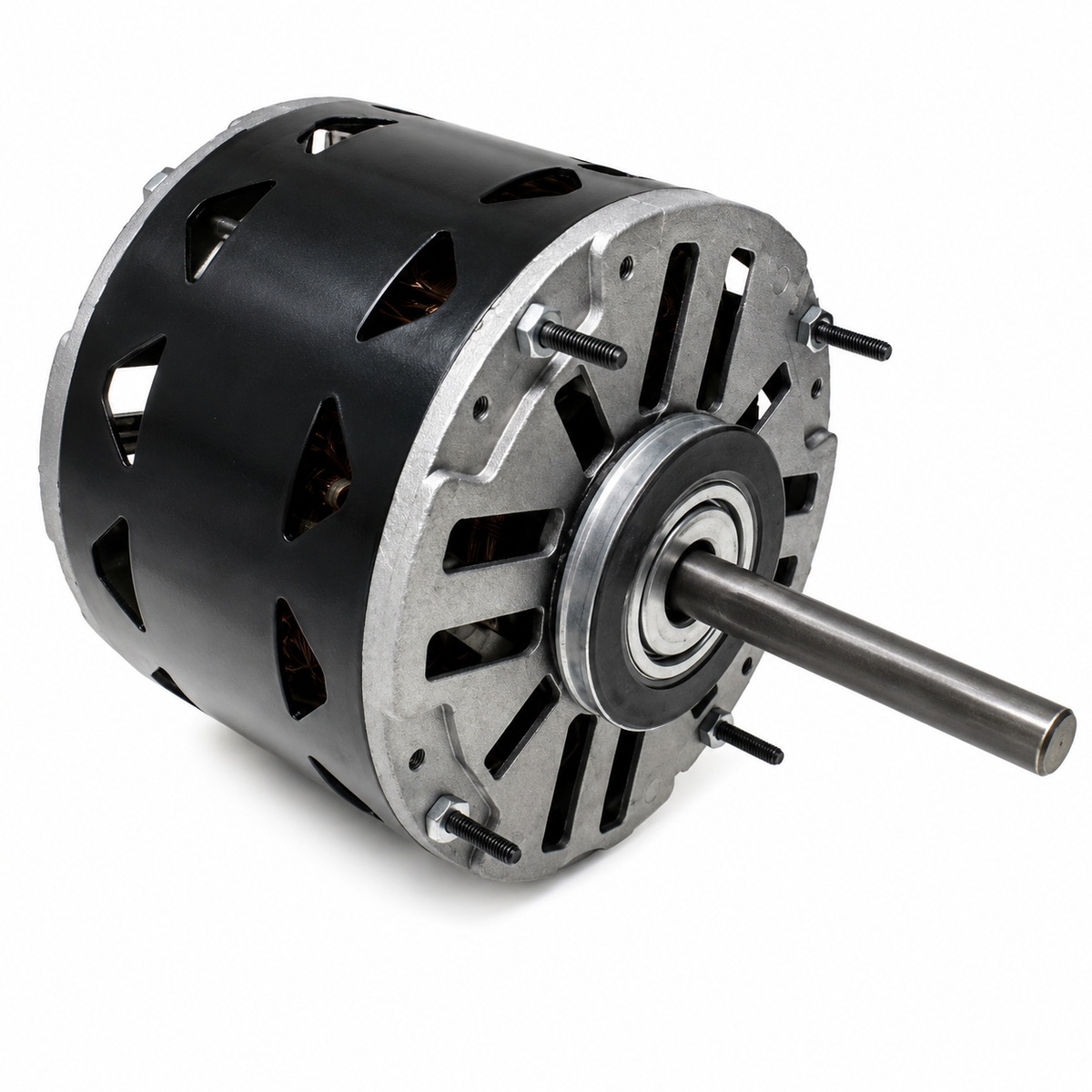

Century Indoor Blower Motor (HVAC/R) EM3463 - 1/2 HP - 115 V - 1075 RPM - Single phase

Century Indoor Blower Motor (HVAC/R) EM3463 - 1/2 HP - 115 V - 1075 RPM - Single phase

$249.00 CAD
$249.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : EM3463

Brand : Century

HVAC : Indoor Blower Motor (HVAC/R)

Horsepower : 1/2 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Resilient Ring Mount

  • Horsepower :1/2
  • Voltage :115
  • Amps :7.00
  • RPM :1075
  • Frequency :60 Hz
  • Length :4-7/8"
  • Enclosure :Open
  • Shaft Dim. :1/2" x 4-1/2"
  • Type :Permanent Split Capacitor
  • Speeds :4
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Sleeve
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :10MFD-370V, 7.5MFD-370V, 5MFD-370V
  • Feature(s) :No Base, Class 'B' Insulation, Multi-horsepower
  • Weight (lbs.) :13
  • Reference : A.O. Smith F48AE84A01 ORM1056, General Electric 5KCP39KGV804BS
