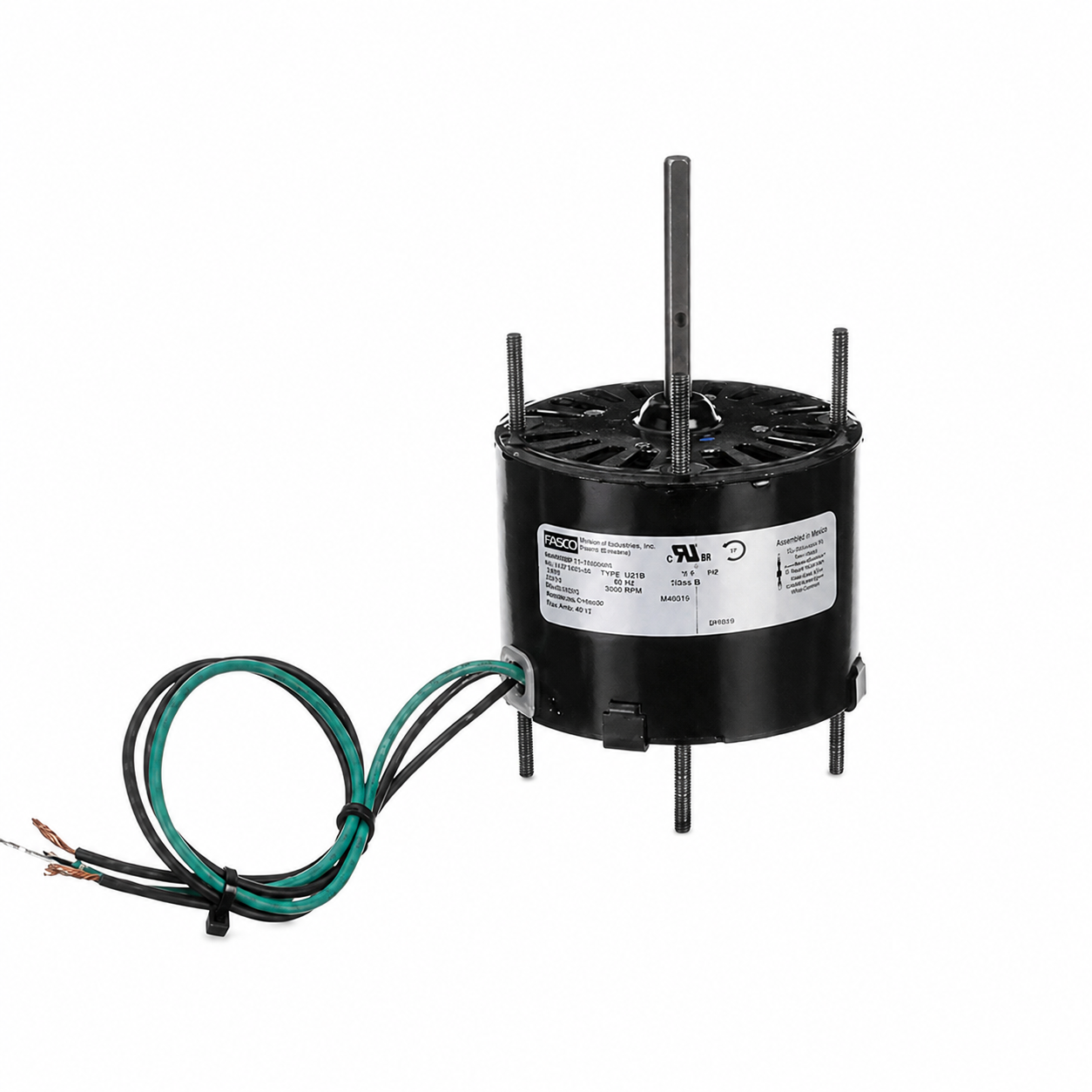

Fasco Fan & Blower Motors (HVAC/R) D206 - 1/30 HP - 115 V - 3000 RPM - Single phase

Fasco Fan & Blower Motors (HVAC/R) D206 - 1/30 HP - 115 V - 3000 RPM - Single phase

$141.00 CAD
$141.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D206

Brand : Fasco

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/30 HP

RPM : 3000

Voltage : 115 V

Phase : Single

Frame : 3.3

Mounting : Stud Mount

  • Horsepower : 1/30
  • 3000 : RPM
  • 115 : Volts
  • Amps : 1.20
  • Frequency : 60 Hz
  • Length : 2.50"
  • Enclosure : Open
  • Shaft Dim. : 1/4" x 2-1/4"
  • Type : Shaded Pole
  • Speeds : 1
  • Diameter : 3.3"
  • Bearings : Sleeve
  • Rotation : CWSE
  • Protector : Thermally Protected
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Feature(s) : Thru-Bolts
  • Weight (lbs.) : 2.4
  • Référence : Century A.O. Smith 36, U36, Fasco 7121-1718, 7121-1729, 7121-3335, Nutone 22721, Universal Electric JB1C005N, JB1C005, Rotom R233, R2602, 80600, 8351910101
