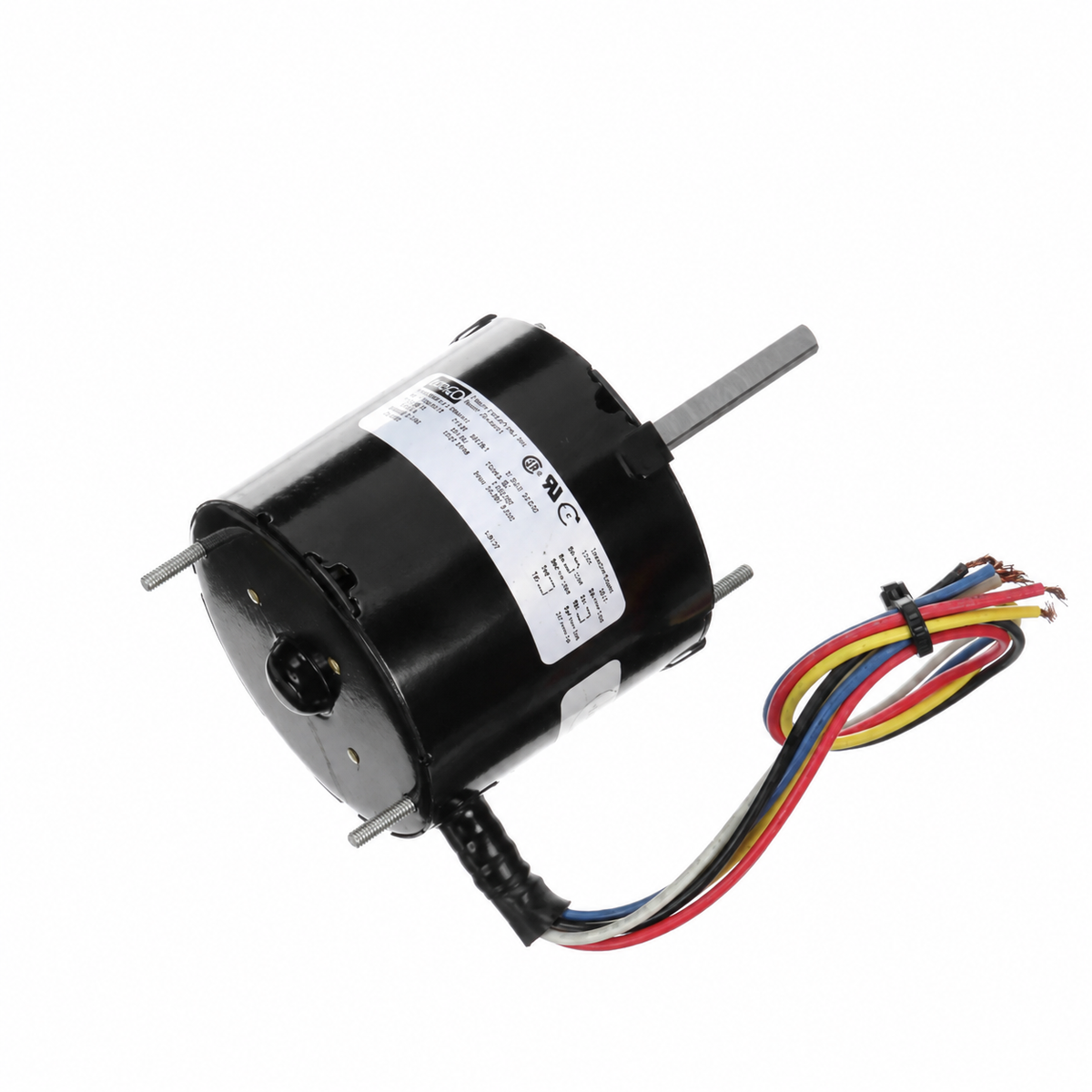

Fasco OEM Replacement Motors (HVAC/R) D1164 - 1/25 HP - 115/230 V - 1550 RPM - Single phase

Fasco OEM Replacement Motors (HVAC/R) D1164 - 1/25 HP - 115/230 V - 1550 RPM - Single phase

$148.00 CAD
$148.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D1164

Brand : Fasco

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/25 HP

RPM : 1550

Voltage : 115/230 V

Phase : Single

Frame : 48

Mounting : Stud Mount

  • Horsepower : 1/25
  • Amps : 1.30/0.65
  • Frequency : 60 Hz
  • Length : 3-1/8"
  • Enclosure : Totally Enclosed, Air Over
  • Shaft Dim. : 5/16" x 2-1/2"
  • Type : Shaded Pole
  • Diameter : 3.3"
  • Bearings : Sleeve
  • Rotation : CWSE
  • Protector : Automatic
  • Service Factor : 1.00
  • Weight (lbs.) : 3.8
  • Référence : A.O. Smith 9523, Emerson F33HXHMC3404, F33HXHTT3530, F33HXJNK3877, Fasco 7163-6478, 71636478, 7163-3196, 7163-3197, 7163-6478, 7163-7329, 7163-7885, Universal JA2P091N, JA2P063N, JA2P090N, JA2R025N, JA2R107, JA2R165, JA2R168, JA2S040, JA2S041, JA2S047, JA2S076, JA2S095, JB2R091N
