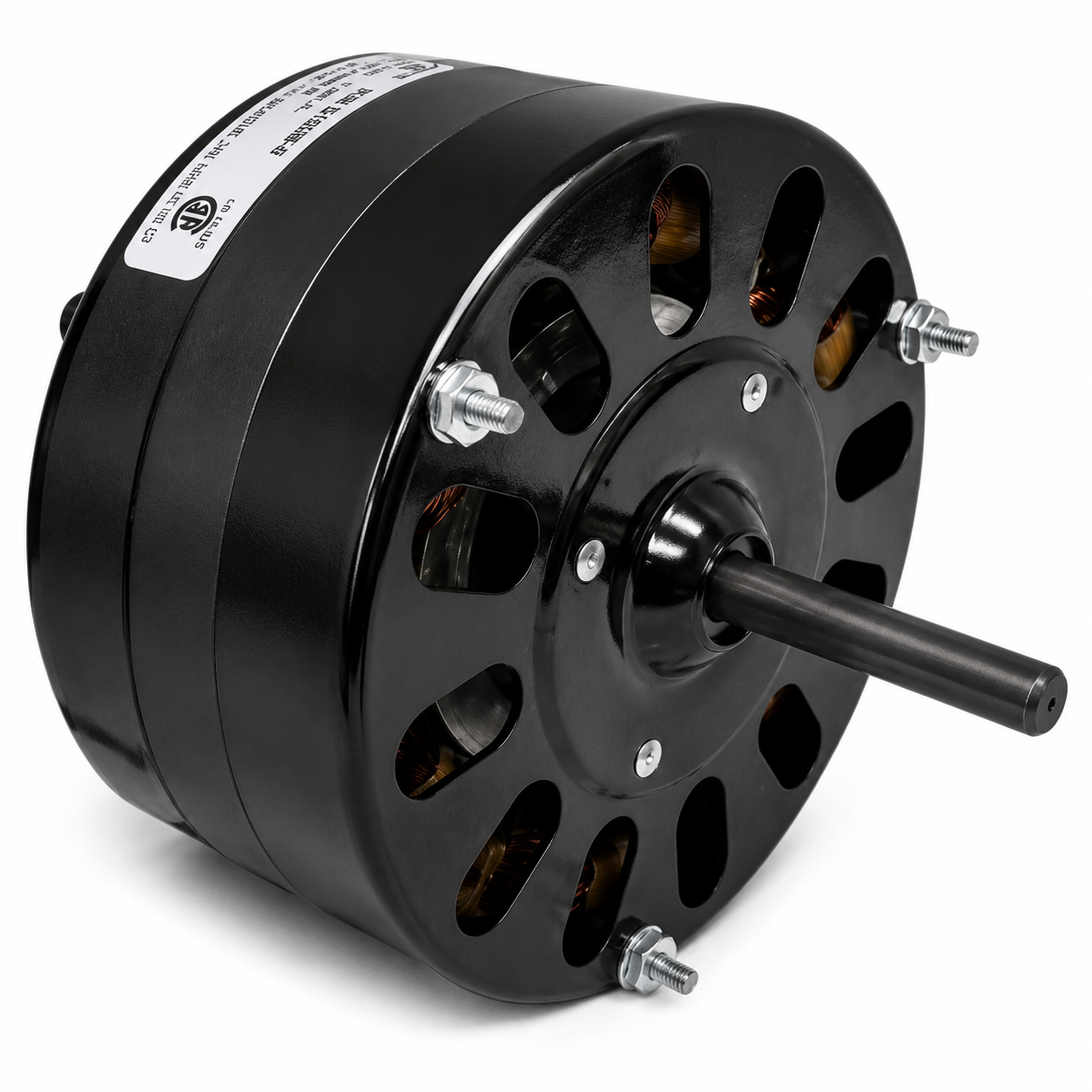

Emotortek Fan & Blower Motors (HVAC/R) D1036-0 - 1/20 HP - 115 V - 1045 RPM - Single phase

Emotortek Fan & Blower Motors (HVAC/R) D1036-0 - 1/20 HP - 115 V - 1045 RPM - Single phase

$272.00 CAD
$272.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D1036-0

Brand : Emotortek

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/20 HP

RPM : 1045

Voltage : 115 V

Phase : Single

Frame : 42

Mounting : Thru-Bolt Mount

  • Horsepower : 1/20
  • Amps : 1.95
  • Frequency : 60 Hz
  • Length : 2-3/8"
  • Enclosure : Open
  • Shaft Dim. : 3/8" x 2-1/8"
  • Type : Shaded Pole
  • Speeds : 1
  • Diameter : 5"
  • Bearings : Sleeve
  • Rotation : CWSE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Feature(s) : Plug Included
  • Weight (lbs.) : 5.4
  • Reference : A.O.Smith 326P109, Dayton 4VA19, Fasco 7151-2138 7151-3081 7151-3496 7151-3565 7151-3595 7151-2139 7151-3496, Fasco No. D0975 D1033 D1036 D1037, MacMillan AO516B2317, Universal Electric DA3B039, Universal No. 975, D6125-482/90
