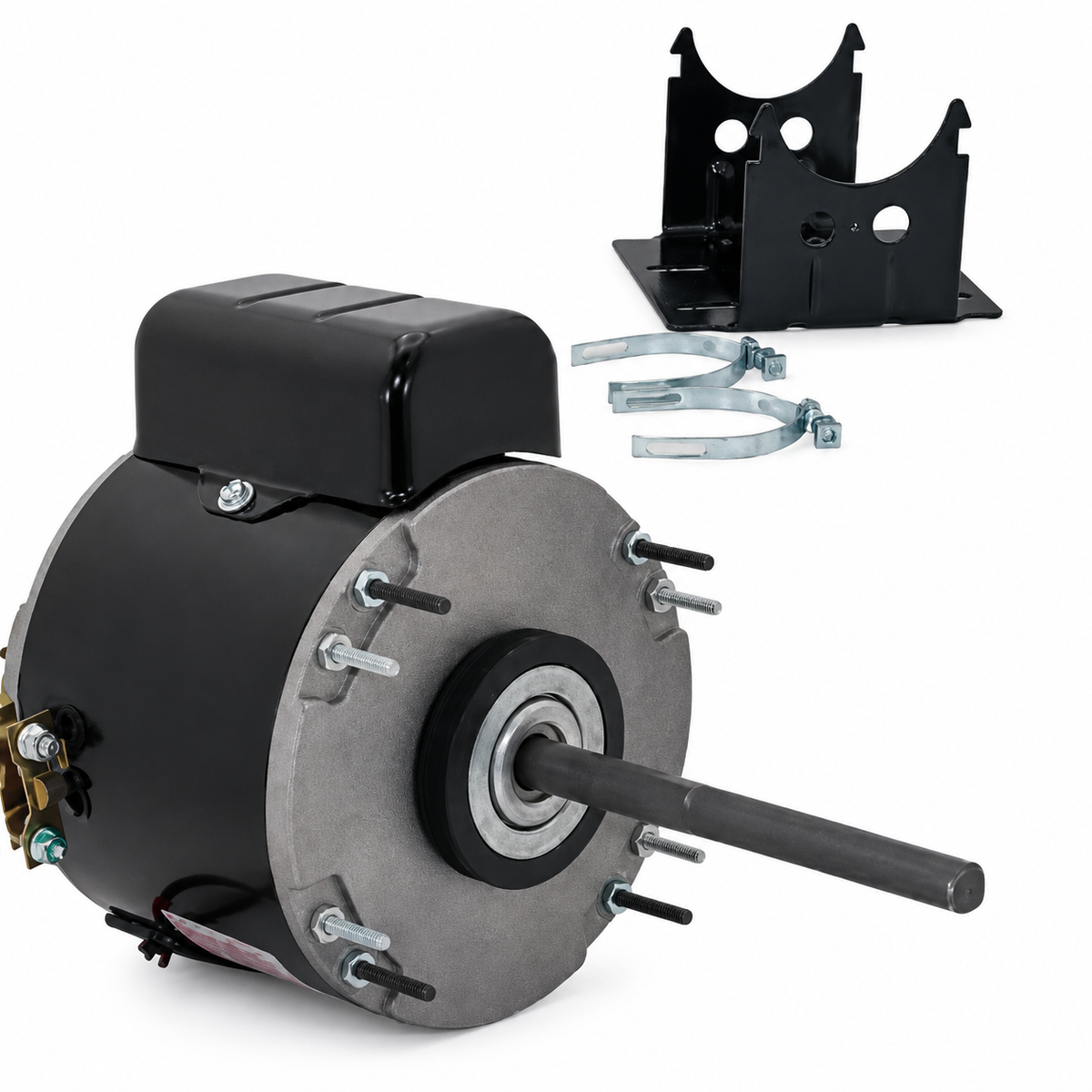

Century Unit Heater Motors (HVAC/R) UH1036V1 - 1/3 HP - 115 V - 1075 RPM - Single phase

Century Unit Heater Motors (HVAC/R) UH1036V1 - 1/3 HP - 115 V - 1075 RPM - Single phase

$391.00 CAD
$391.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : UH1036V1

Brand : Century

HVAC : Unit Heater Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Resilient Base

  • Horsepower :1/3
  • Voltage :115
  • Amps :5.30
  • RPM :1075
  • Frequency :60 Hz
  • Length :4-5/8"
  • "C" Dim. :10-1/8"
  • Enclosure :Totally Enclosed Air Over
  • Shaft Dim. :1/2" x 5-1/2"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :5MFD-370VAC
  • Feature(s) :Class 'B' Insulaion, Resilient Base, Includes split bushing and key fo 5/8" shafts, Thru-bolts
  • Weight (lbs.) :13
  • Reference : A.O. Smith F48V02A01, Dayton 3M802, Dayton 4UE28, Fasco D732, General Electric 5KH43MG1149 3212, Universal Electric HF3H033N 183, SS751
