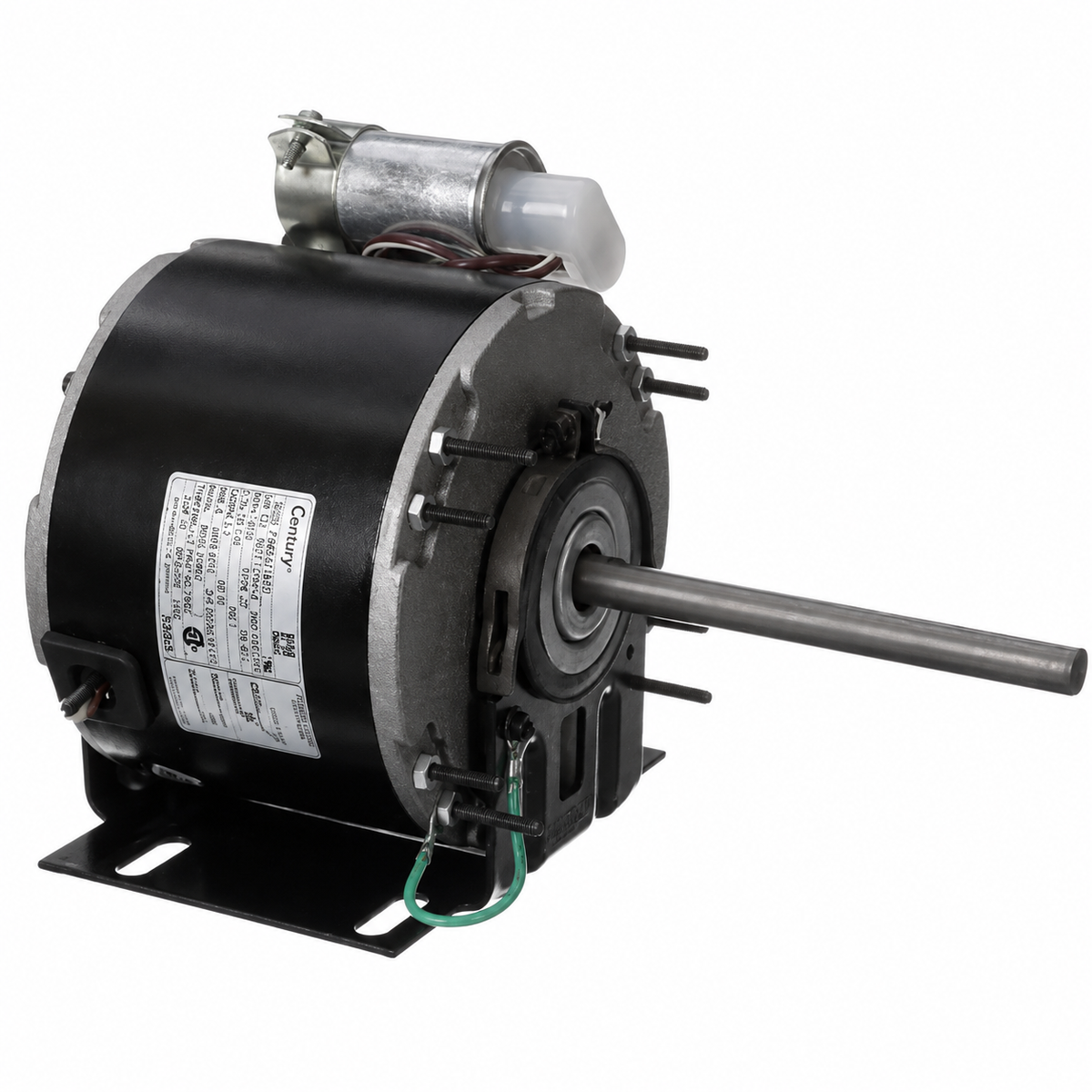

Century Unit Heater Motors (HVAC/R) 566A - 1/4 HP - 115 V - 1075 RPM - Single phase

Century Unit Heater Motors (HVAC/R) 566A - 1/4 HP - 115 V - 1075 RPM - Single phase

$387.00 CAD
$387.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 566A

Brand : Century

HVAC : Unit Heater Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Resilient Base

  • Horsepower :1/4
  • Voltage :115
  • Amps :3.30
  • RPM :1075
  • Frequency :60 Hz
  • Length :4-1/4"
  • "C" Dim. :9-25/32"
  • Enclosure :Totally Enclosed Air Over
  • Shaft Dim. :1/2" x 5-1/2"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Sleeve
  • Rotation :CCWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :60°C
  • Capacitor Rating :10MFD-370VAC
  • Feature(s) :Resilient Base, Class 'B' Insulation
  • Weight (lbs.) :15

  • Reference : Marathon X303, A.O. Smith 323P973, Leland Faraday EM3-206, A.O. Smith 48SJ6V11, A.O. Smith 566, A.O. Smith F48SJ6V11, A.O. Smith F48Z47A01, A.O. Smith ORZ1026, Century C040, Johnstone Supply S88-068, Packard 70973, Universal Electric C040, Universal Electric HE3G293, Universal Electric HE3G433, Universal Electric HE3G7293, Universal Electric HE3H213
