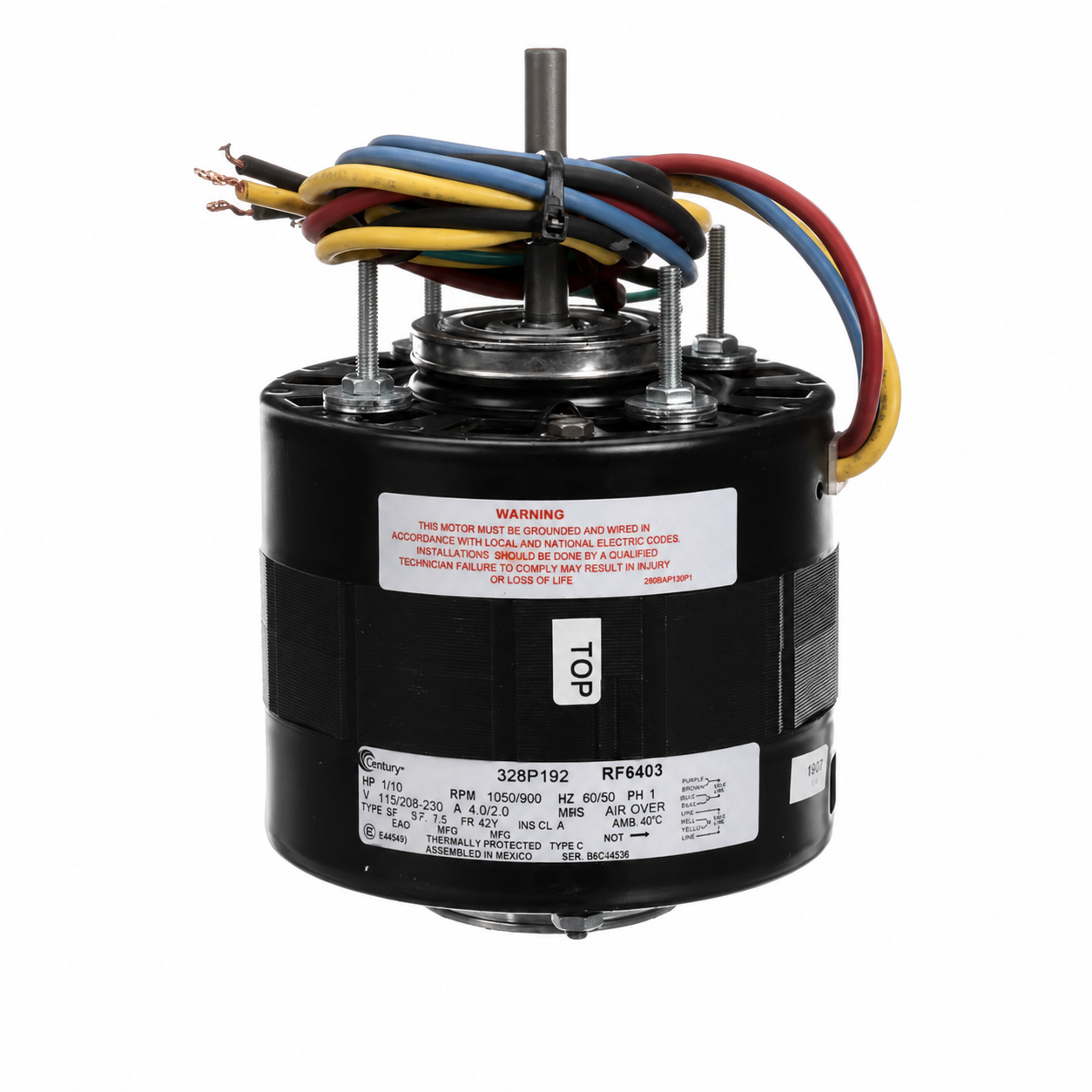

Century Refrigeration Motors (HVAC/R) RF6403 - 1/10 HP - 115/208-230 V - 1050 RPM - Single phase
Century Refrigeration Motors (HVAC/R) RF6403 - 1/10 HP - 115/208-230 V - 1050 RPM - Single phase
Couldn't load pickup availability
Model : RF6403
Brand : Century
HVAC : Refrigeration Motors (HVAC/R)
Horsepower : 1/10 HP
RPM : 1050
Voltage : 115/208-230 V
Phase : Single
Frame : 42Y
Mounting : Stud Mount
• HP : 1/10
• Voltage : 115/208-230
• RPM : 1050/900
• AMPs : 4.0/2.0
• Phase : 1
• Rotation : CCWLE
• Frame : 42Y
• Enclosure : Open Enclosed
• Speeds : 1
• Protector : Thermally Protected
• Ambient Temp : 40°C
• Service Factor : 1.00
• Shaft Dimensions : 0.375 in X 2.25 in
• Frequency : 60Hz
• Diameter : 5.0 in
• Length : 4.92 in
• Bearings : Sleeve
• Features : Class A Insulation, 3/8” Diameter Shaft with Flat, 1/2” Shaft Adaptor Included, 29” Leads, Extended Studs Shaft End, Resilient Mounting Rings Shaft End and Opposite Shaft End, Resilient Base Mounting Clamps, Mounting Ring Adaptors, and Hex Nuts Included
• Weight (lbs) : 12
• Reference : A.O. Smith 326P117 326P186 326P192, Century 609, Dayton 4UU76, Fasco D493, Dayton 3M466, Dayton 4UU76, General Electric 5KSP29DG2661, Mars 10609, Universal Electric 607 609, A.O. Smith 326P117, Fasco D491, Fasco D495, Johnstone Supply S88-445, Rotom R2940, SS2940
