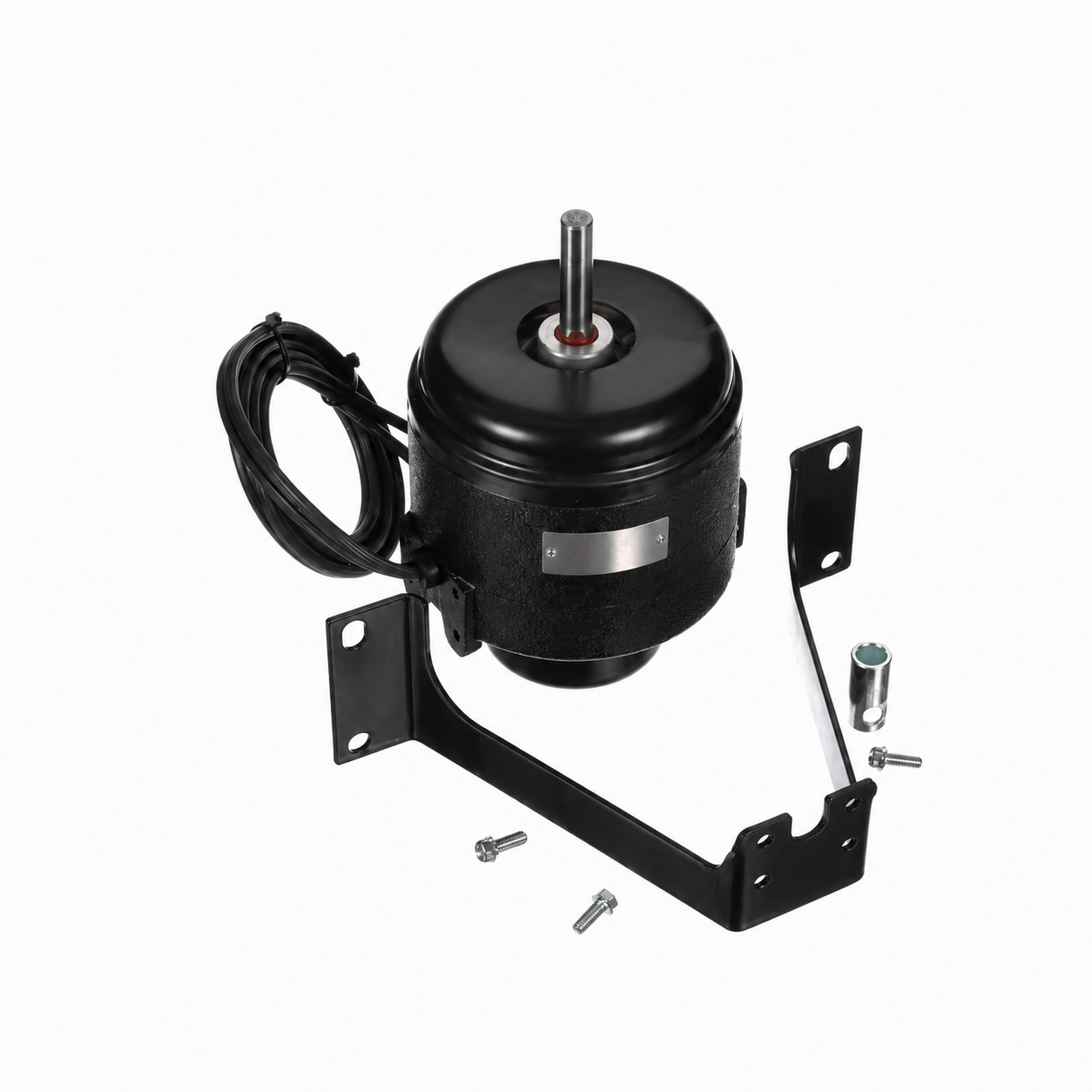

Century Refrigeration Motors (HVAC/R) 289 - 50 Watt - 115 V - 1500 RPM - Single phase

Century Refrigeration Motors (HVAC/R) 289 - 50 Watt - 115 V - 1500 RPM - Single phase

$279.00 CAD
$279.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 289

Brand : Century

HVAC : Refrigeration Motors (HVAC/R)

Horsepower : 50 Watt

RPM : 1500

Voltage : 115 V

Phase : Single

Frame : 3.3

Mounting : Hole Mount

• HP : 50 Watt
• Voltage : 115
• RPM : 1500
• Current (Amp) : 1.70
• Phase : 1
• Rotation : Clockwise Lead End
• Frame : Unit Bearing
• Enclosure : Totally Enclosed Air Over
• Speeds : 1
• Protector : Thermally Protected
• Ambient Temp : 40°C
• Service Factor : 1.00
• Shaft Dimensions : 0.375 in X 1.6 in
• Frequency : 60Hz
• Diameter : 3.3 in
• Frame Length : 4.61 in
• Bearings : Unit
• Features : Class A Insulation, 34 in Leads, Tapped Double Boss, 3 Tapped Holes Opposite Shaft End
• Reference : Copeland 998-1008-00 050-0244-01 998-1008-00, Morrill EMS         ESPOL50EM13, Rotom R5011
