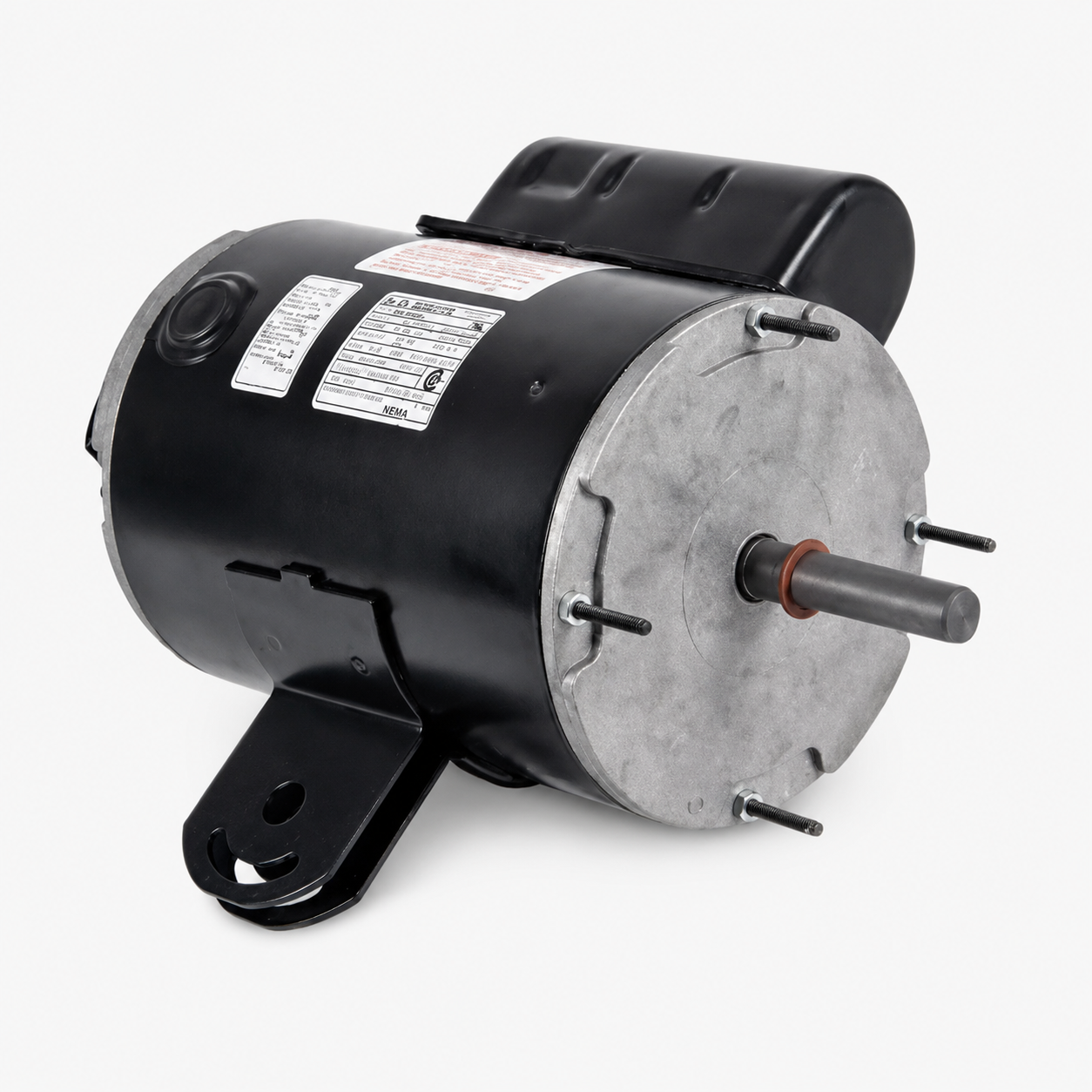

Century Pedestal Fan Motors (HVAC/R) 647A - 1/3 HP - 115 V - 1100 RPM - Single phase

Century Pedestal Fan Motors (HVAC/R) 647A - 1/3 HP - 115 V - 1100 RPM - Single phase

$402.00 CAD
$402.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 647A

Brand : Century

HVAC : Pedestal Fan Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 1100

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Yoke Mount

  • Horsepower :1/3
  • Voltage :115
  • Amps :4.70
  • RPM :1100
  • Frequency :60 Hz
  • "C" Dim. :9-7/8"
  • Enclosure :Totally Enclosed Air Over
  • Shaft Dim. :1/2" x 3"
  • Type :Permanent Split Capacitor
  • Speeds :2
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Class 'B' Insulation, Yoke mounting, Thru-Bolts
  • Weight (lbs.) :20
  • Reference : A.O. Smith F48V02A01, Dayton 3M802, Dayton 4UE28, Fasco D732, General Electric 5KH43MG1149 3212, Universal Electric HF3H033N 183, SS751
