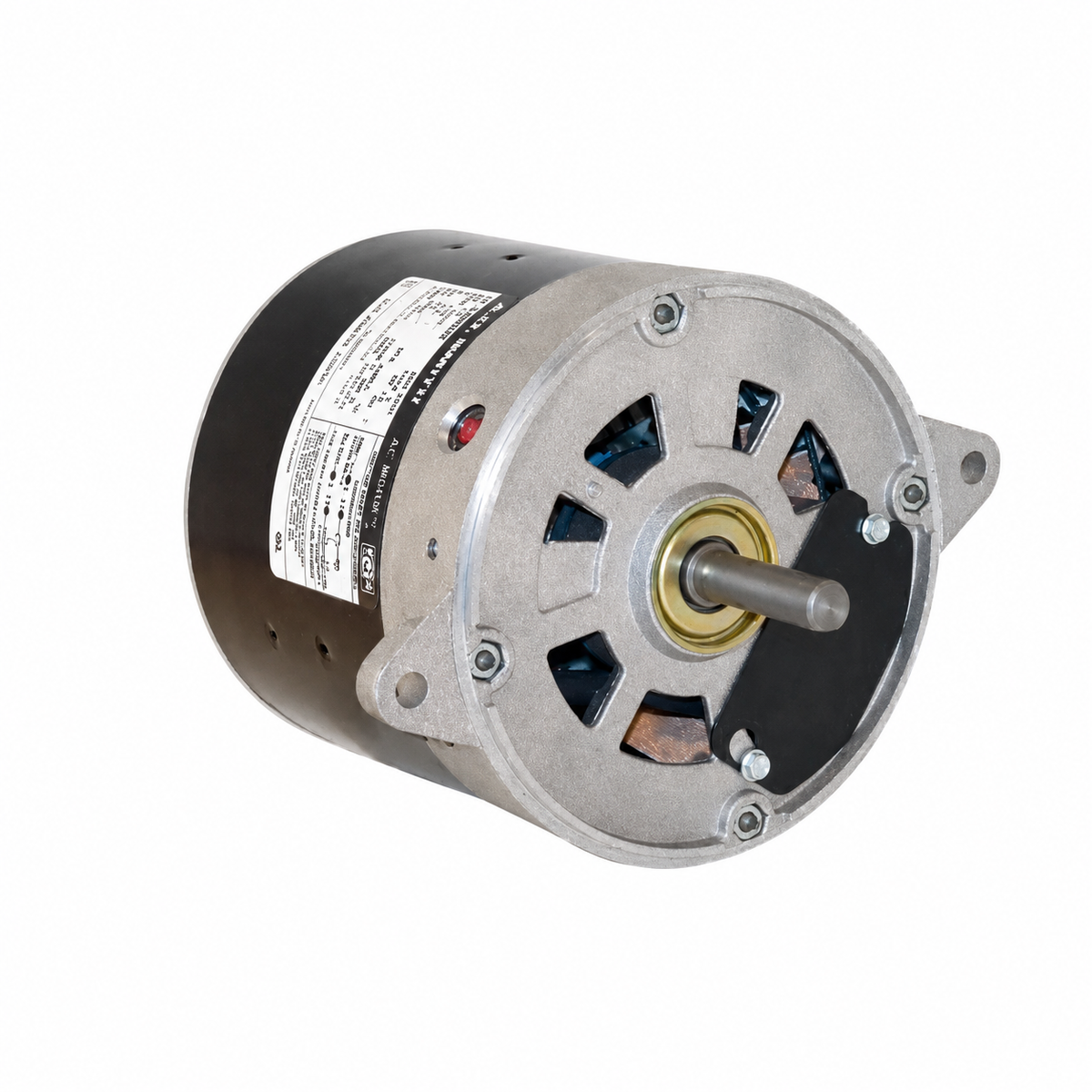

Leeson Oil Burner Motor (HVAC/R) O010 - 1/3 HP - 115/208-230 V - 3600 RPM - Single phase

Leeson Oil Burner Motor (HVAC/R) O010 - 1/3 HP - 115/208-230 V - 3600 RPM - Single phase

$301.00 CAD
$301.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : O010

Brand : Leeson

HVAC : Oil Burner Motor (HVAC/R)

Horsepower : 1/3 HP

RPM : 3600

Voltage : 115/208-230 V

Phase : Single

Frame : 48Z

Mounting : Flange Mount

• HP: 1/3
• Voltage: 115/208-230
• RPM: 3600
• AMPs: 5.6/2.7-2.8
• Phase: 1
• Rotation: Selective CCW
• Frame: 48NZ
• Enclosure: Open Drip Proof
• Speeds: 1
• Protector: Manual
• Ambient Temp: 40°C
• Service Factor:
• Shaft Dimensions: 1/2" X 1.94"
• Frequency: 60Hz
• Diameter: 5-5/8"
• Length: 6.75"
• Bearings: Ball
• Features: Class B Insulation, Oil Burner Mount, 1/2" Diameter Shaft With Flat
• Weight: 14 lbs
• Manufacturer Model #: 048C34D2024
• Reference : A.O. Smith OL2032, Emerson S55GYLDM6017 2319 3268, General Electric 4788, Marathon 48C34D2017
