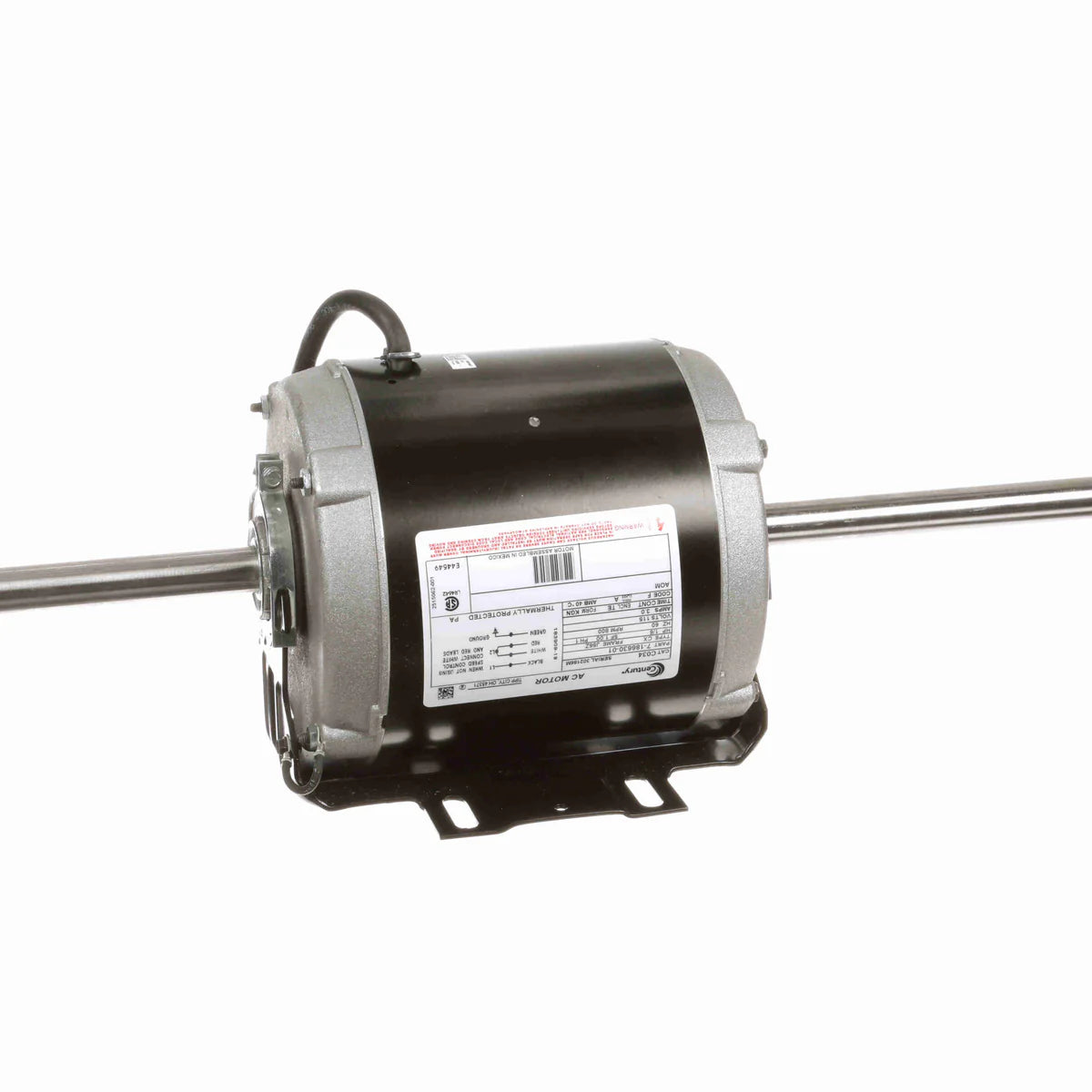

Century OEM Replacement Motors (HVAC/R) C034 - 1/6 HP - 115 V - 800 RPM - Single phase

Century OEM Replacement Motors (HVAC/R) C034 - 1/6 HP - 115 V - 800 RPM - Single phase

$1,295.00 CAD
$1,295.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : C034

Brand : Century

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/6 HP

RPM : 800

Voltage : 115 V

Phase : Single

Frame : 56Z

Mounting : Resilient Base

  • Horsepower :1/6
  • Voltage :115
  • Amps :3.00
  • RPM :800
  • Frequency :60 Hz
  • "C" Dim. :51-1/4"
  • Enclosure :Totally Enclosed Air Over
  • Shaft Dim. :21-1/2" x 3/4" x 21-1/2"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :6-1/2"
  • Frame :56Z
  • Bearings :Ball
  • Rotation :CWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Class 'A' Insulation, Resilient Base
  • Weight (lbs.) :45
  • Reference : Century CB2024AV1, Emerson S55CXNSK7294 S55NXNSK7294
