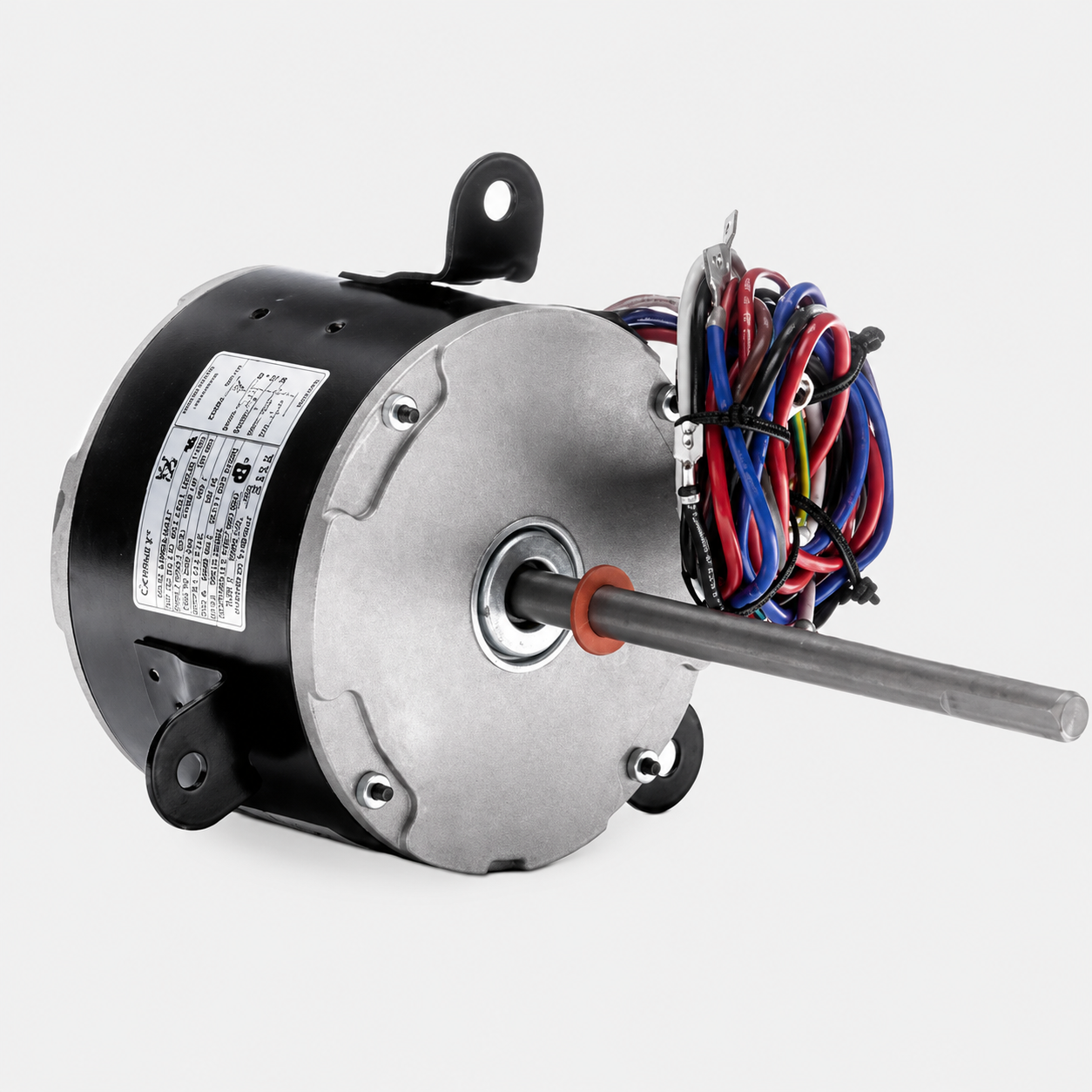

Century OEM Replacement Motors (HVAC/R) 513A - 1/6 HP - 208/230 V - 1040 RPM - Single phase

Century OEM Replacement Motors (HVAC/R) 513A - 1/6 HP - 208/230 V - 1040 RPM - Single phase

$426.00 CAD
$426.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 513A

Brand : Century

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/6 HP

RPM : 1040

Voltage : 208/230 V

Phase : Single

Frame : 48Y

Mounting : Lug Mount

  • Horsepower :1/6
  • Voltage :208-230
  • Amps :1.30
  • RPM :1040
  • Frequency :60 Hz
  • Length :3-7/8"
  • Enclosure :Totally Enclosed
  • Shaft Dim. :7" x 1/2" x 2-1/8"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Sleeve
  • Rotation :CWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :60°C
  • Capacitor Rating :3MFD-370V
  • Feature(s) :Double Shaft, Class 'B' Insulation, Lug Mount
  • Weight (lbs.) :10

  • Reference : A.O. Smith 513, A.O. Smith F48Z44A01, Fasco 7126-0043, Fasco D864, Johnstone Supply S88-687, Marathon X272, Universal Electric HE3E150, Universal Electric HE3E7150
