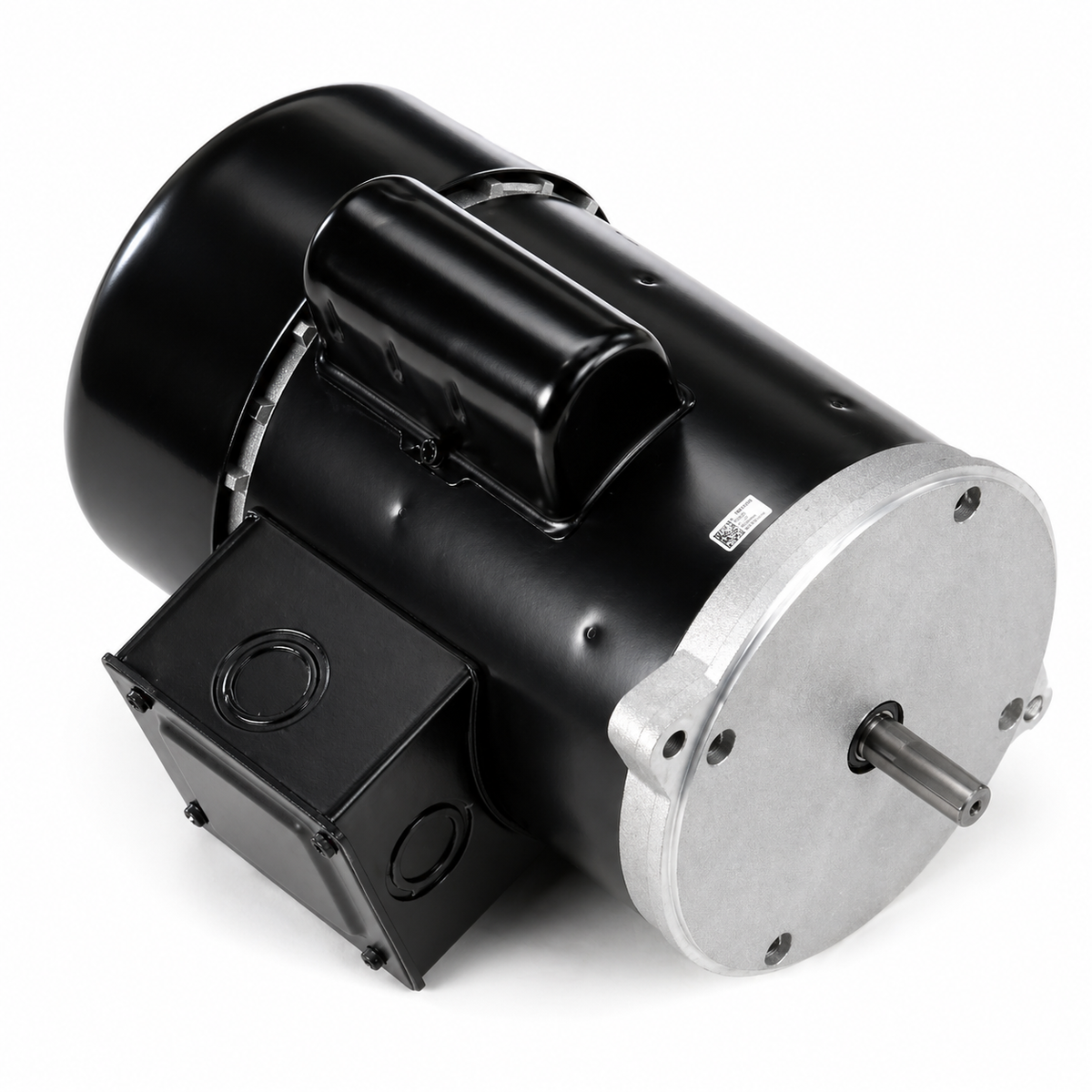

Century General Purpose Motors (HVAC/R) C332 - 3/4 HP - 115/230 V - 1800 RPM - Single phase

• HP: 3/4
• Voltage: 115/230
• RPM: 1800
• AMPs: 5.2/10.4
• Phase: 1
• Rotation: Reversible
• Frame: 56N
• Enclosure: Totally Enclosed Fan Cooled
• Speeds: 1
• Protector: Manual
• Ambient Temp: 40°C
• Service Factor: 1.00
• Shaft Dimensions: 1/2" X 1-3/4"
• Frequency: 60Hz
• Diameter: 6-1/2"
• Length: 6.25"
• Bearings: Ball
• Features: class b insulation, high starting torque, torque switch & governor, no base
• Weight: 32 lbs

• References: A.O. Smith 186457, Baldor ANFL3507M, Century 186457, GE 5KC45RG1750U, GE 5KCR49PN0077U, General Electric C1293, Dayton 3K996, Dayton 4K120, Dayton 5K046, Dayton 9K833, Leeson 101119, Leeson 101437, Leland Faraday M2660
