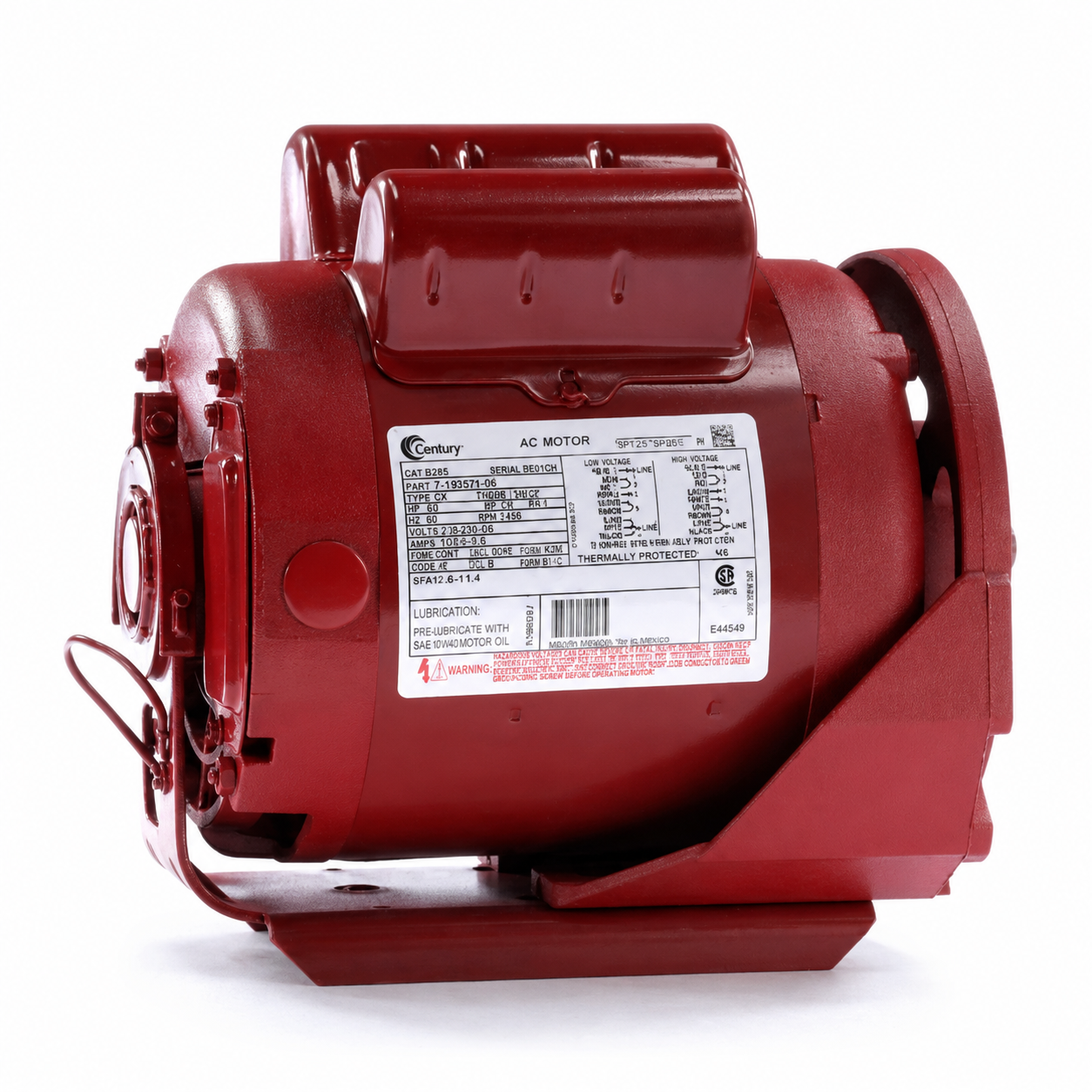

Century Motors Circulator Pump (HVAC/R) C249 - 1/2 HP - 115/208-230 V - 1725 RPM - Single phase

Century Motors Circulator Pump (HVAC/R) C249 - 1/2 HP - 115/208-230 V - 1725 RPM - Single phase

$609.00 CAD
$609.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : C249

Brand : Century

HVAC : Motors Circulator Pump (HVAC/R)

Horsepower : 1/2 HP

RPM : 1725

Voltage : 115/208-230 V

Phase : Single

Frame : 56YZ

Mounting : Bracket Mount

  • Horsepower :1/2
  • Voltage :115/208-230
  • Amps :5.80/2.80-2.90
  • RPM :1725
  • Frequency :60 Hz
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :5/8" x 1-1/8"
  • Type :Single Phase
  • Speeds :1
  • Diameter :6-1/2"
  • Frame :56YZ
  • Bearings :Sleeve
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.50
  • Phase :1
  • Ambient Temp. :50°C
  • Feature(s) :Class 'B' Insulation, Type 2C, Brackets included
  • Weight (lbs.) :28

  • Reference : Armstrong 81157-001 S-55, Bell & Gossett 111044, Emerson 3258, Emerson T55CXTHJ1232, Dayton 4UE16, Dayton 5GD86, Marathon 56A17D72 56B17D11009 56B17D135, Rotom R1459, SS1459
