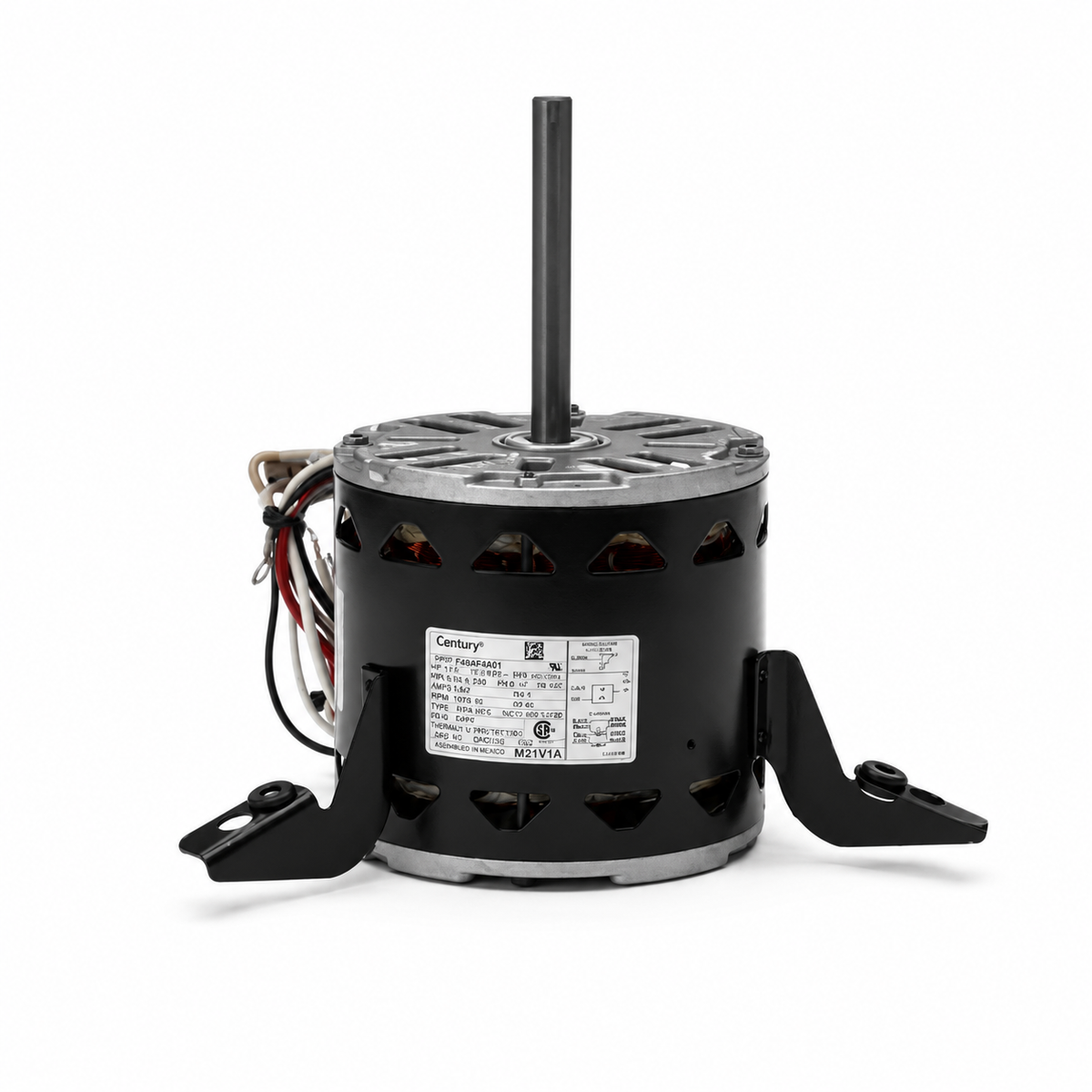

Century Fan Coil Motors (HVAC/R) 9421V1A - 1/2 HP - 460 V - 1075 RPM - Single phase
Century Fan Coil Motors (HVAC/R) 9421V1A - 1/2 HP - 460 V - 1075 RPM - Single phase
Couldn't load pickup availability
Model : 9421V1A
Brand : Century
HVAC : Fan Coil Motors (HVAC/R)
Horsepower : 1/2 HP
RPM : 1075
Voltage : 460 V
Phase : Single
Frame : 48Y
Mounting : Lug Mount
• HP : 1/2
• Voltage : 460
• RPM : 1075
• Current (Amp) : 1.51/0.92
• Phase : 1
• Rotation : Reversible
• Frame : 48Y
• Enclosure : Open Air Over
• Speeds : 2
• Protector : Automatic
• Ambient Temp : 40°C
• Service Factor : 1.00
• Shaft Dimensions : 0.500 in X 4.50 in
• Frequency : 60Hz
• Diameter : 5.5 in
• Frame Length : 4.50 in
• Bearings : Sleeve
• Capacitor Rating : 7.5-44
• Features : Class B Insulation, 12 in Leads, Flex Mount, Capacitor Required 7.5Mfd-370V
• References : A.O. Smith 9421, A.O. Smith 9421V1, A.O. Smith F48Z91A01, GE 5KCP39NGN367S, Universal Electric 9421, Universal Electric HE3J7277, Universal Electric HE3J7289
