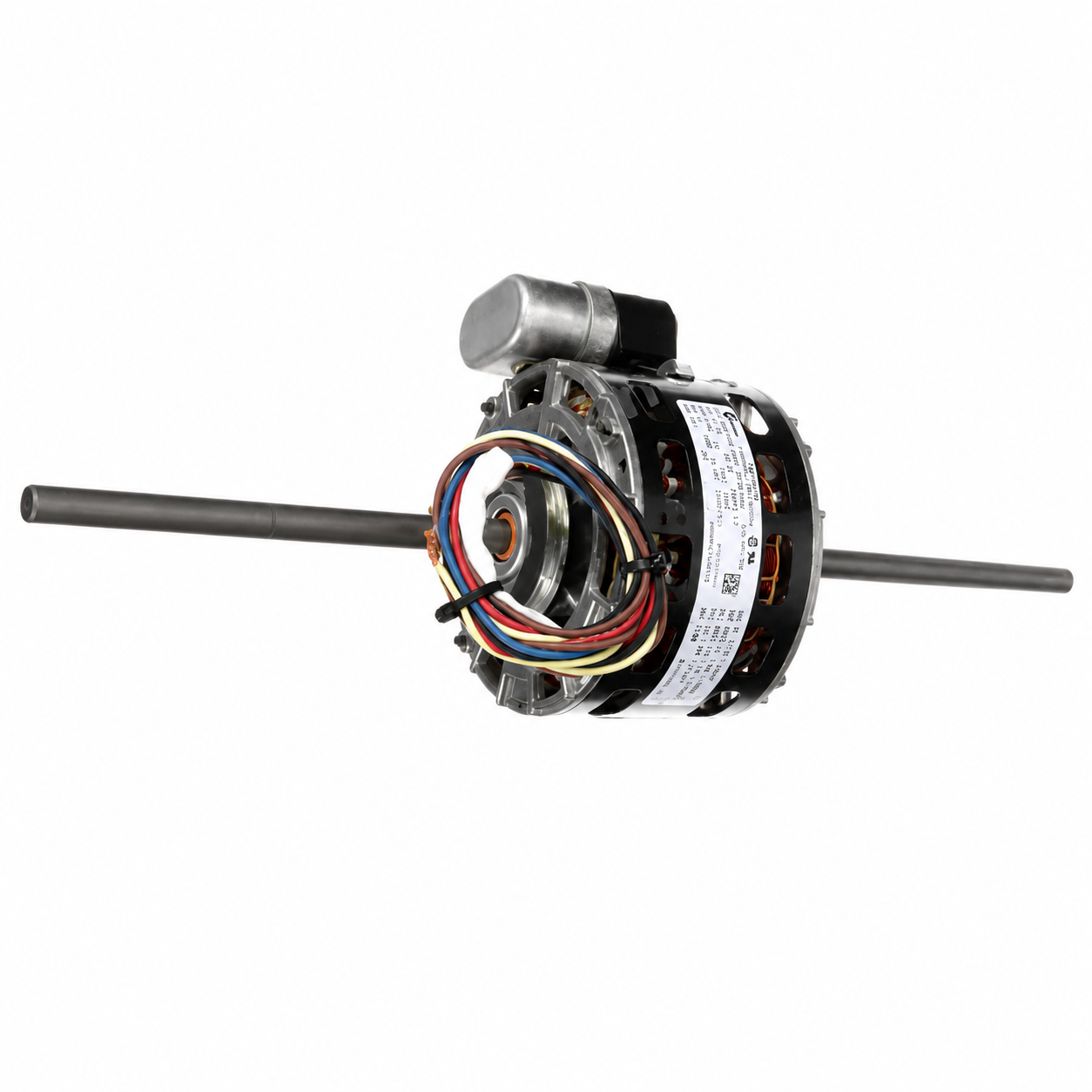

Century Fan Coil Motors & Air Conditioner Motor (HVAC/R) 9408 - 1/8 HP - 115 V - 1550 RPM - Single phase

Century Fan Coil Motors & Air Conditioner Motor (HVAC/R) 9408 - 1/8 HP - 115 V - 1550 RPM - Single phase

$560.00 CAD
$560.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 9408

Brand : Century

HVAC : Fan Coil Motors & Air Conditioner Motor (HVAC/R)

Horsepower : 1/8 HP

RPM : 1550

Voltage : 115 V

Phase : Single

Frame : 42

Mounting : Lug Mount

  • Horsepower :1/8
  • Voltage :115
  • Amps :2.1-1.6-1.3-0.9
  • RPM :1550
  • Frequency :60 Hz
  • Length :3-1/4"
  • Enclosure :Open
  • Shaft Dim. :10-3/8" x 1/2" x 10-3/8"
  • Type :Permanent Split Capacitor
  • Speeds :4
  • Diameter :5"
  • Frame :42
  • Bearings :Sleeve
  • Rotation :CWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Class 'B' Insulation, Mouting rings not included
  • Weight (lbs.) :11
  • Reference : Century DE2C001, Fasco D347, Universal Electric DE2C7001
