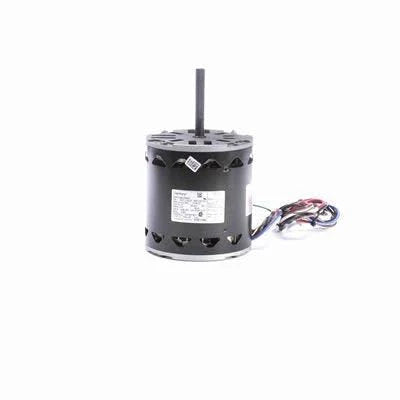

Century Fan & Blower Motors (HVAC/R) OYK1106 - 1 HP - 115 V - 1075 RPM - Single phase

Century Fan & Blower Motors (HVAC/R) OYK1106 - 1 HP - 115 V - 1075 RPM - Single phase

$325.00 CAD
$325.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : OYK1106

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Belly Band Mount

• HP: 1
• Voltage: 115
• RPM: 1075
• Current (Amp): 12.90
• Phase: 1
• Rotation: Counterclockwise Lead End
• Frame: 48Y
• Enclosure: Open Enclosed
• Speeds: 3
• Protector: Automatic
• Ambient Temp: 40°C
• Service Factor: 1.00
• Shaft Dimensions: 0.50 in X 3.50 in
• Frequency: 60Hz
• Diameter: 5.5 in
• Frame Length: 6.00 in
• Bearings: Ball
• Capacitor Rating: 15-44
• Features: class b insulation, belly band mount, 1/2" diameter shaft with flat, 29" leads with female terminal, capacitor required: 15mfd-440volts (not supplied with motor)
