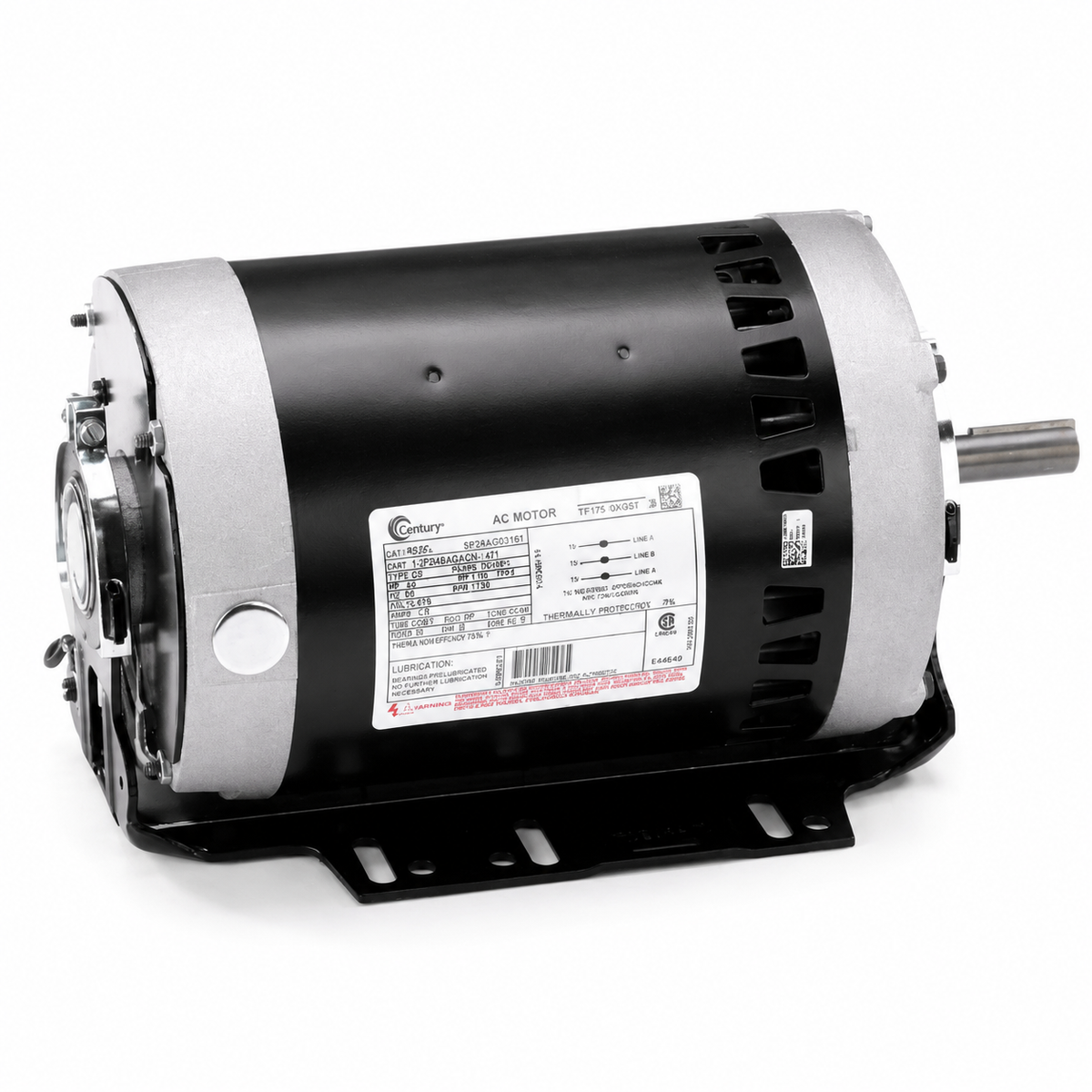

Century Fan & Blower Motors (HVAC/R) H942L - 1 HP - 575 V - 1725 RPM - Three phase

Century Fan & Blower Motors (HVAC/R) H942L - 1 HP - 575 V - 1725 RPM - Three phase

$559.00 CAD
$559.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : H942L

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1 HP

RPM : 1725

Voltage : 575 V

Phase : Three

Frame : 56H

Mounting : Resilient Base

  • Horsepower :1
  • Voltage :575
  • Amps :1.50
  • RPM :1725
  • Frequency :60 Hz
  • Length :10-13/16"
  • "C" Dim. :12-23/32"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :5/8” x 1-7/8"
  • Type :Three Phase
  • Speeds :1
  • Diameter :6-1/2"
  • Frame :56H
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.15
  • Phase :3
  • Ambient Temp. :40°C
  • Feature(s) :Resilient Base, Horizontal mount only, Class 'B' Insulation
  • Weight (lbs.) :29
  • Reference : A.O. Smith 5BK3104, A.O. Smith H942, A.O. Smith P56AD81A01, Century 164197, General Electric 4J145BB 5K37PN270 5K38SN284 K8013, Rotom T2135, Trane B724129P01
