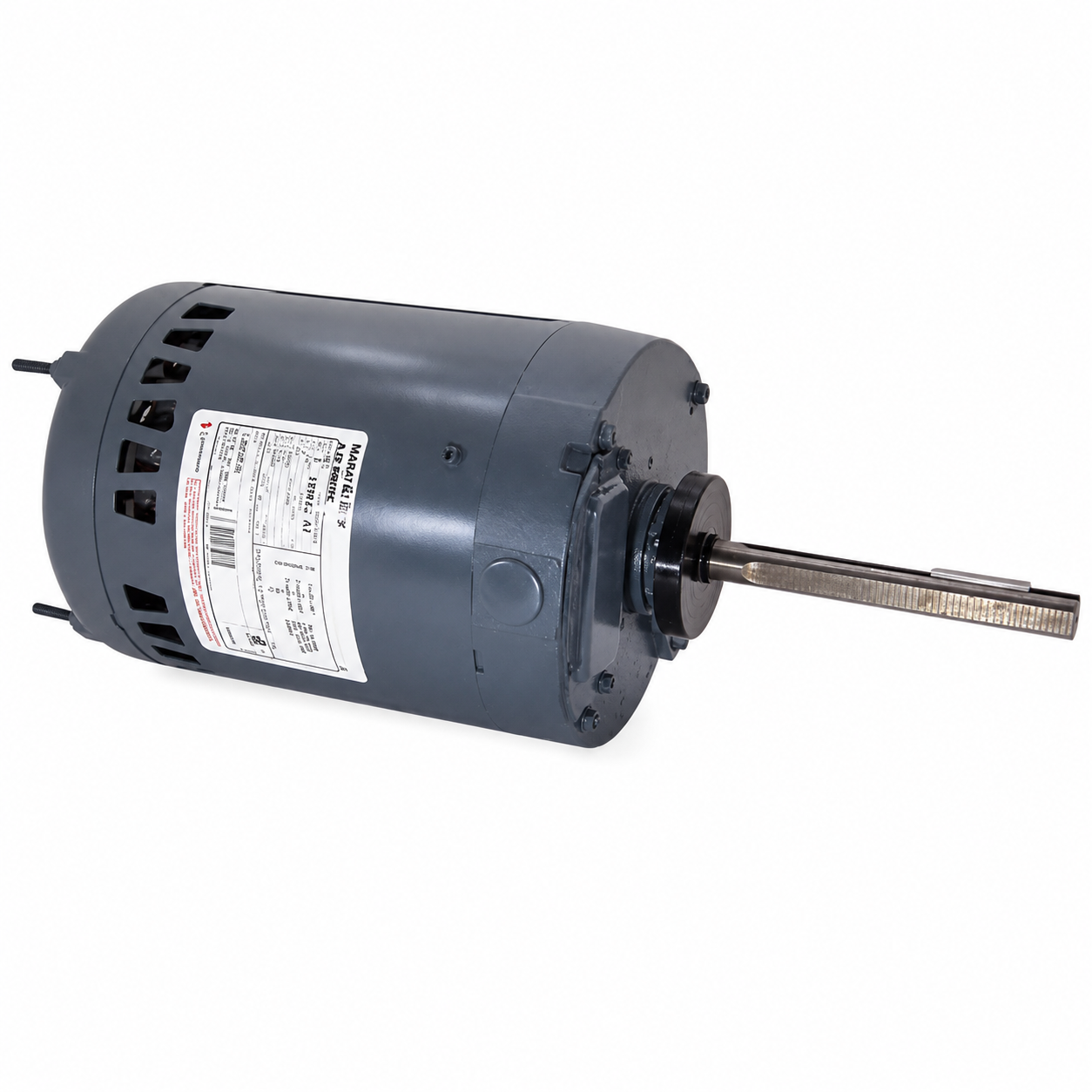

Century Fan & Blower Motors (HVAC/R) H767V1 - 1.5 HP - 230/460 V - 1140 RPM - Three phase

Century Fan & Blower Motors (HVAC/R) H767V1 - 1.5 HP - 230/460 V - 1140 RPM - Three phase

$710.00 CAD
$710.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : H767V1

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1.5 HP

RPM : 1140

Voltage : 230/460 V

Phase : Three

Frame : 56

Mounting : Stud Mount

  • Horsepower :1-1/2
  • Voltage :200-230/460
  • Amps :5.80-6.0/3.00
  • RPM :1140
  • Frequency :60 Hz
  • Length :10-13/16"
  • "C" Dim. :16-13/16"
  • Enclosure :Open Opposite Shaft-End
  • Shaft Dim. :5/8” x 6.00”
  • Type :Three Phase
  • Speeds :1
  • Diameter :6-1/2"
  • Frame :56Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :3
  • Ambient Temp. :60°C
  • Feature(s) :Class 'B' Insulation, Round Body
  • Weight (lbs.) :34
  • Reference : 182759, 165833, 182759, 193927, H765, H766, K1819, 4MB83, S88-156, MFK-12276, 713012C-01, 879-292251-00, 879-292252-00, 879-417614-00, 77604, MOT 1272, MOT 1273, MOT 1274, MOT 2464, MOT 6077, FC3156, P48SX6V3, P48SX6V3A1, P48SX6V4A1, Carrier/BDP HD54SX680, Carrier/BDP P257-E380, Carrier/BDP P257-X503, H767, F5030, 10542, 3N470, 3N648, S88-408, M2-1134, W56T1105303, 720, CFM3166A, 1819, D6610, 111148, X503, K380
