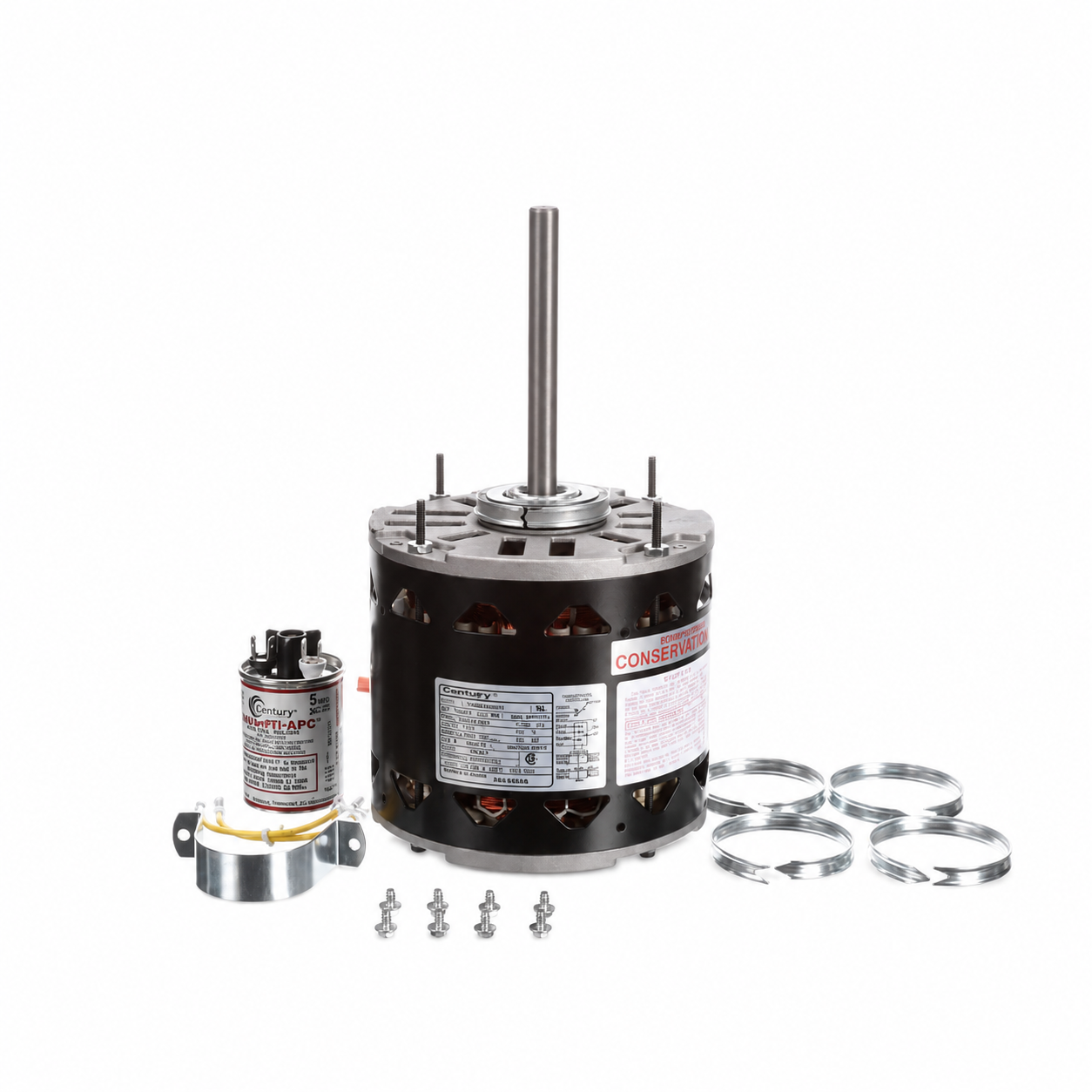

Century Fan & Blower Motors (HVAC/R) FDL6002A - 3/4 HP - 115 V - 1075 RPM - Single phase

• HP : 3/4
• Voltage : 115
• RPM : 1075
• AMPs : 9.1
• Phase : 1
• Rotation : Reversible
• Frame : 48
• Enclosure : Open Air Over
• Speeds : 4
• Protector : Thermally Protected
• Ambient Temp : 40°C
• Service Factor : 1.00
• Shaft Dimensions : 0.500 in X 5.0 in
• Frequency : 60Hz
• Diameter : 5.5 in
• Length : 4.25 in
• Bearings : Ball
• Features : Class B Insulation, 36" Leads with Quick Connect Terminals, Extended Studs Shaft End, Resilient Ring Mounting, Mounting Holes in Shell, Belly Band. Fan and Blower, Permanent Split Capacitor
• Weight (lbs) : 16
• Reference : A.O. Smith F48AD80A01 F48AE82A01 F48T74A01, Emerson Catalogue No.      5470, General Electric 3466
