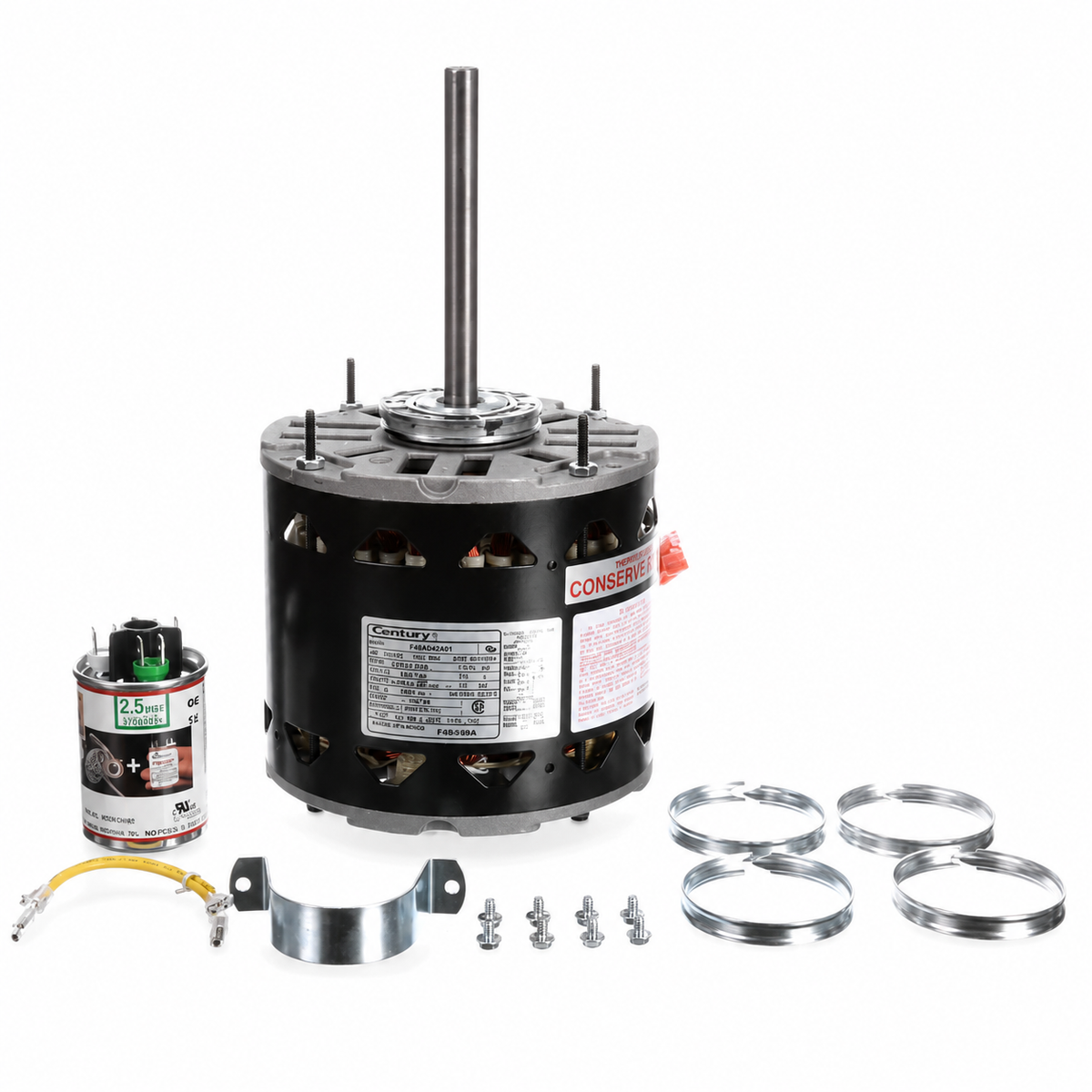

Century Fan & Blower Motors (HVAC/R) FD6001A - 3/4 HP - 208/230 V - 1075 RPM - Single phase

Century Fan & Blower Motors (HVAC/R) FD6001A - 3/4 HP - 208/230 V - 1075 RPM - Single phase

$228.00 CAD
$228.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : FD6001A

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 3/4 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Resilient Ring Mount

• HP : 3/4
• Voltage : 208-230
• RPM : 1075
• AMPs : 4.0
• Phase : 1
• Rotation : Reversible
• Frame : 48
• Enclosure : Open Air Over
• Speeds : 4
• Protector : Thermally Protected
• Ambient Temp : 40°C
• Service Factor : 1.00
• Shaft Dimensions : 0.500 in X 5.0 in
• Frequency : 60Hz
• Diameter : 5.5 in
• Length : 4.25 in
• Bearings : Ball
• Features : Class B Insulation, 36" Leads with Quick Connect Terminals, Extended Studs Shaft End, Resilient Ring Mounting, 8 Mounting Holes in Shell, Belly Band, Capacitor Supplied with Motor
• Weight (lbs) : 16
• Reference : Emerson Catalogue No. 5471, General Electric 5KCP39MGDD709
