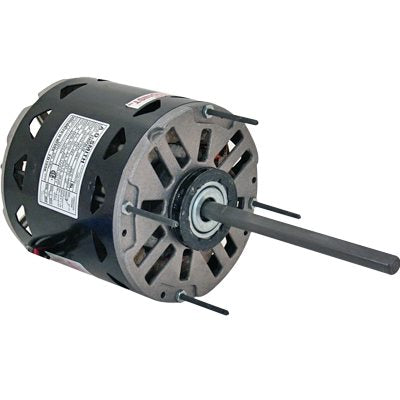

Century Fan & Blower Motors (HVAC/R) FD1054 - 1/2 HP - 208/230 V - 1625 RPM - Single phase

Century Fan & Blower Motors (HVAC/R) FD1054 - 1/2 HP - 208/230 V - 1625 RPM - Single phase

$415.00 CAD
$415.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : FD1054

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1625

Voltage : 208/230 V

Phase : Single

Frame : 48Y

Mounting : Resilient Ring / Extended Studs

  • Horsepower :1/2
  • Voltage :208/230
  • Amps :2.80
  • RPM :1625
  • Frequency :60 Hz
  • Length :5-1/8"
  • "C" Dim. :11-9/16"
  • Enclosure :Open Air Over
  • Shaft Dim. :1/2" x 6-7/16"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Sleeve
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :7.5MFD/370V
  • Feature(s) :Class 'A' Insulation, Thru-Bolts
  • Weight (lbs.) :17
  • Reference : FD1054 AO Smith, K055TBZ8217012B, U.S. Motors 1695
