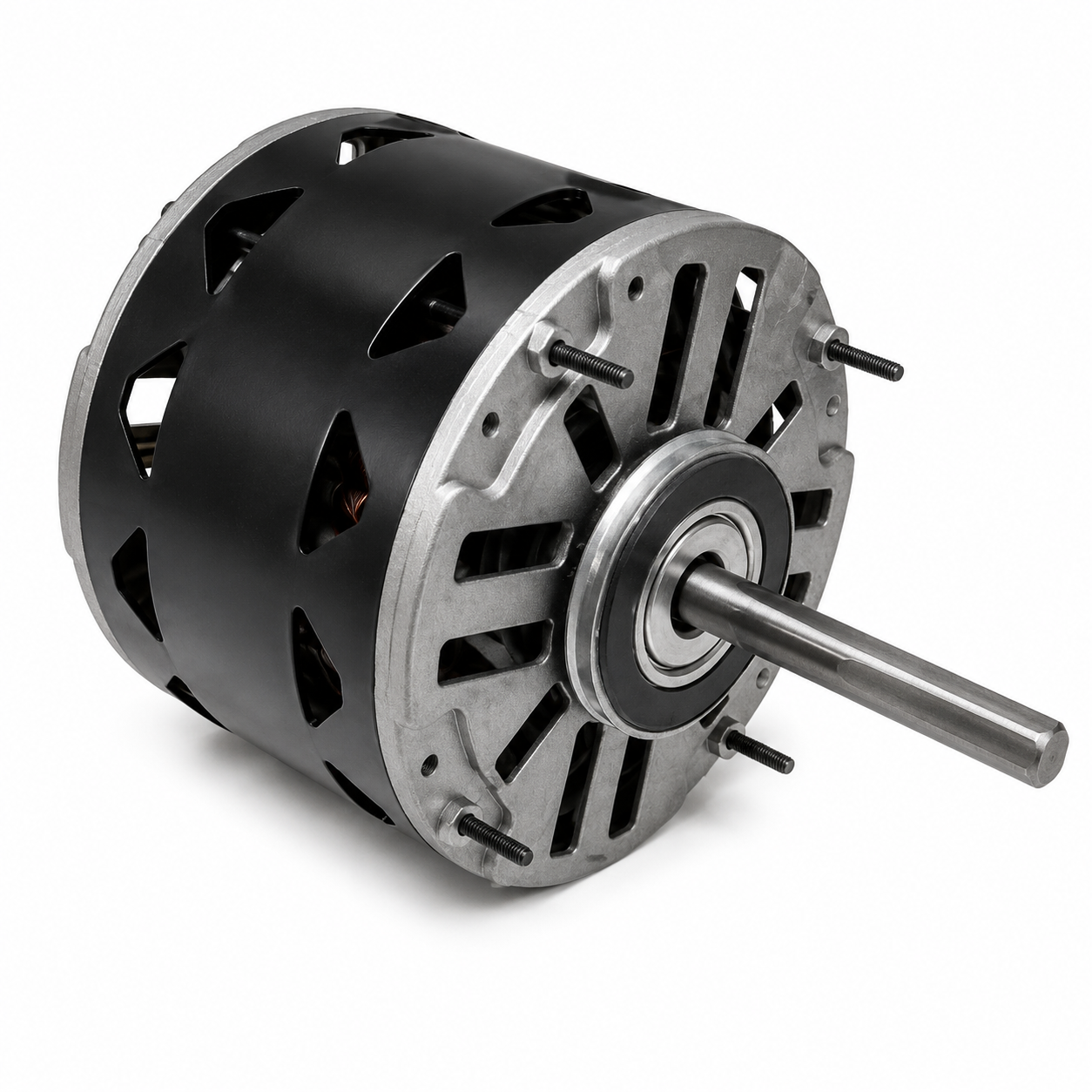

Century Fan & Blower Motors (HVAC/R) EM3587 - 1/2 HP - 115 V - 1075 RPM - Single phase

Century Fan & Blower Motors (HVAC/R) EM3587 - 1/2 HP - 115 V - 1075 RPM - Single phase

$181.00 CAD
$181.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : EM3587

Brand : Emotortek

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 48

Mounting : Resilient Ring Mount

  • Horsepower :1/2
  • Voltage :115
  • Amps :6
  • RPM :1075
  • Frequency :60 Hz
  • Length :5-1/8"
  • Enclosure :Open
  • Shaft Dim. :1/2” x 5.00”
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Sleeve
  • Rotation :Reversible
  • Protector :Thermally Protected
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :10MFD-370V
  • Feature(s) :Resilient Rings, Reversing Plug, Extended Thru-Bolts
  • Weight (lbs.) :17

  • Reference : A.O. Smith F48AD25A01 SS3587, Emerson K55HXTGA8796 5460, General Electric 5KCP39NGAA04 5KCP39PGV503
