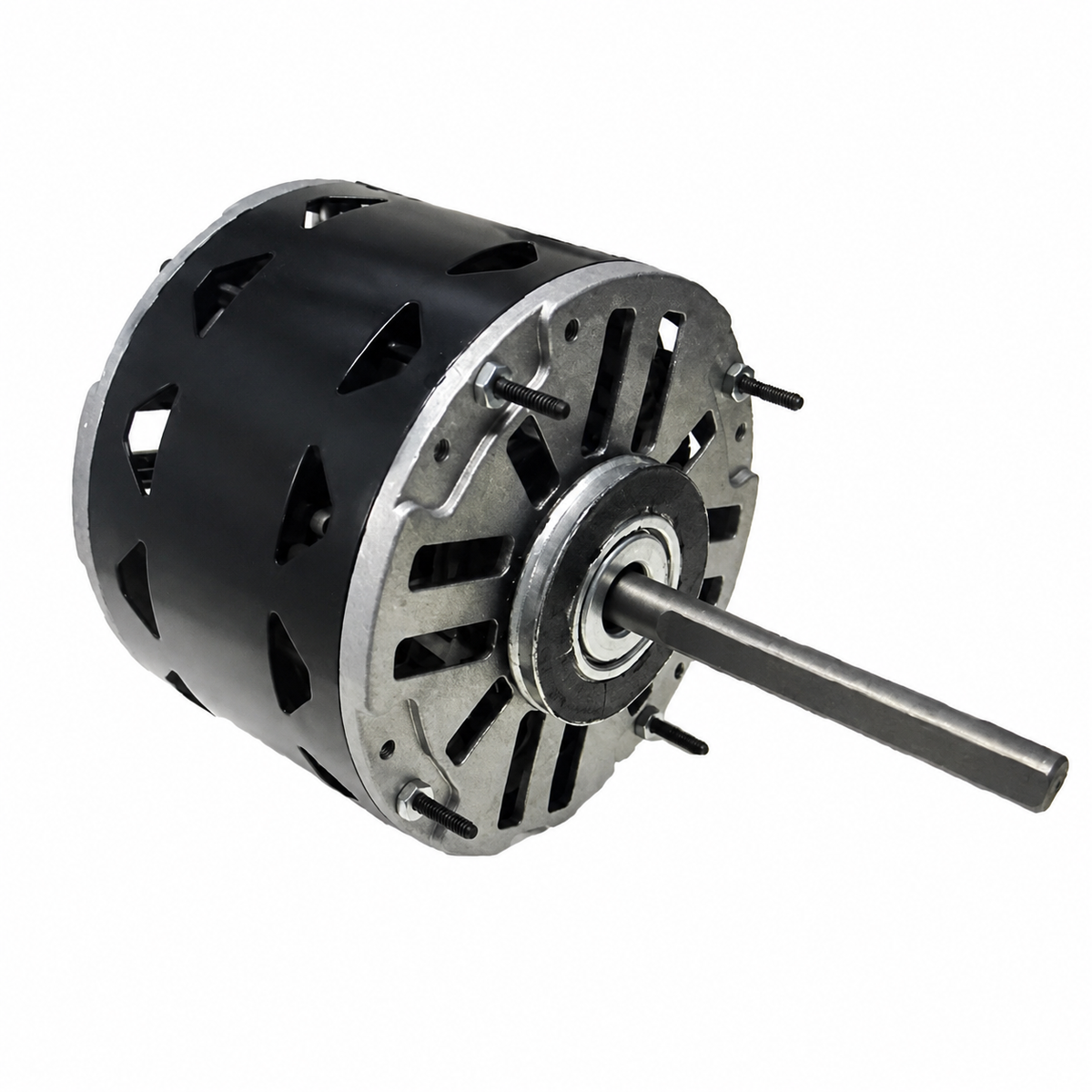

Century Fan & Blower Motors (HVAC/R) EM3586 -1/3 HP - 208/230 V - 1075 RPM - Single phase

Century Fan & Blower Motors (HVAC/R) EM3586 -1/3 HP - 208/230 V - 1075 RPM - Single phase

$150.00 CAD
$150.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : EM3586

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Stud Mount

  • Horsepower :1/3
  • Voltage :208/230
  • Amps :2.2
  • RPM :1075
  • Frequency :60 Hz
  • Length :4-5/8"
  • Enclosure :Open
  • Shaft Dim. :1/2” x 5.00”
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Sleeve
  • Rotation :Reversible
  • Protector :Thermally Protected
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :10MFD-370V
  • Feature(s) :Resilient Rings, Reversing Plug, Extended Thru-Bolts
  • Weight (lbs.) :12
  • Reference : A.O. Smith 322P131 F48AD28A01 F48Z71C04 SS3586, Emerson K55HXFWB7952 K55HXHSH8846, General Electric 5KCP39GGT773 5KCP39HGAA33
