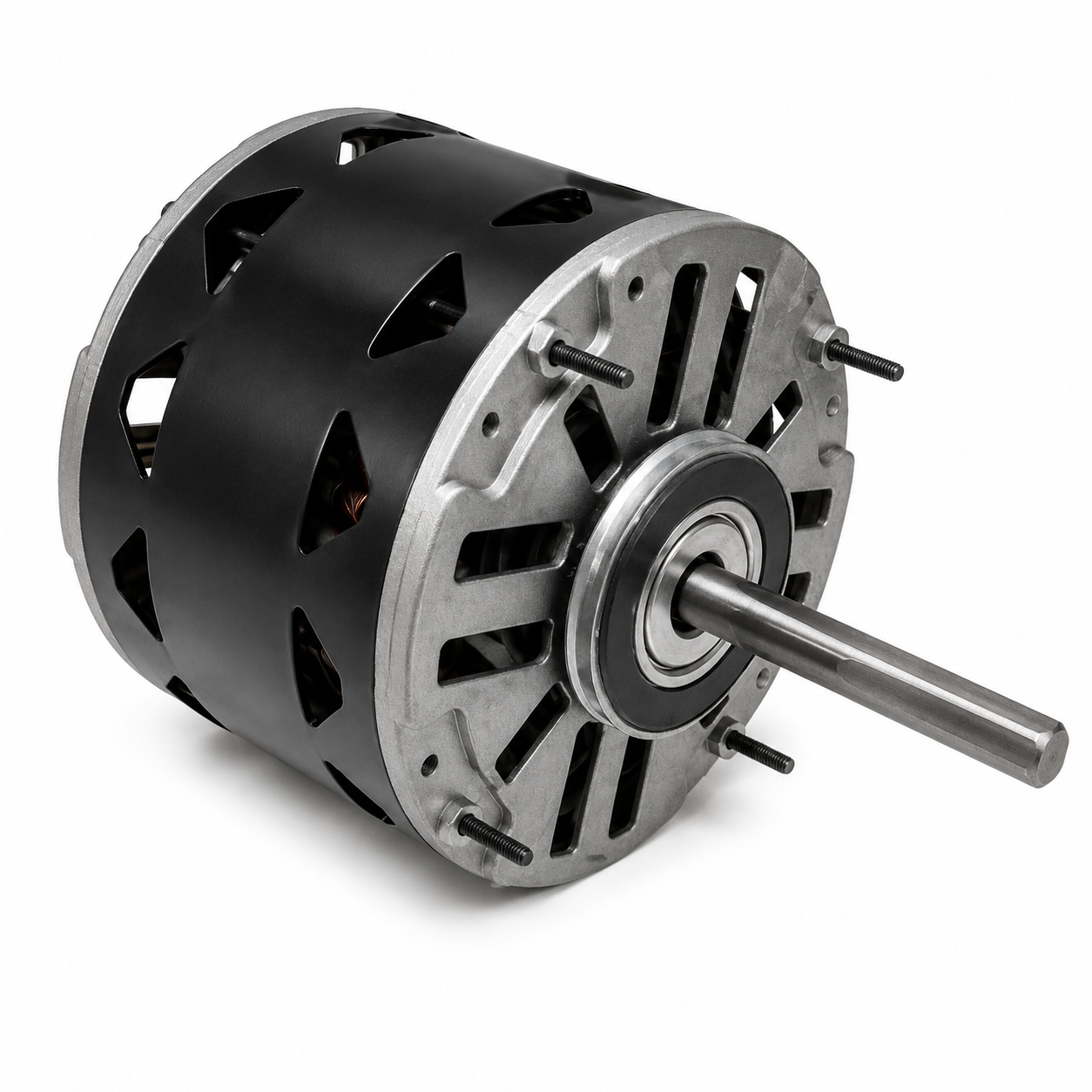

Century Fan & Blower Motors (HVAC/R) EM3585 - 1/3 HP - 115 V - 1075 RPM - Single phase

Century Fan & Blower Motors (HVAC/R) EM3585 - 1/3 HP - 115 V - 1075 RPM - Single phase

$150.00 CAD
$150.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : EM3585

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 48

Mounting : Resilient Ring Mount

  • Horsepower :1/3
  • Voltage :115
  • Amps :5.0
  • RPM :1075
  • Frequency :60 Hz
  • Length :4-5/8"
  • Enclosure :Open
  • Shaft Dim. :1/2" x 5.00"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Sleeve
  • Rotation :Reversible
  • Protector :Thermally Protected
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :10MFD-370V
  • Feature(s) :Resilient Rings, Reversing Plug, Extended Thru-Bolts
  • Weight (lbs.) :12
  • References: A.O. Smith F48AD24A01 SS3585, General Electric 5KCP39HGAA37
