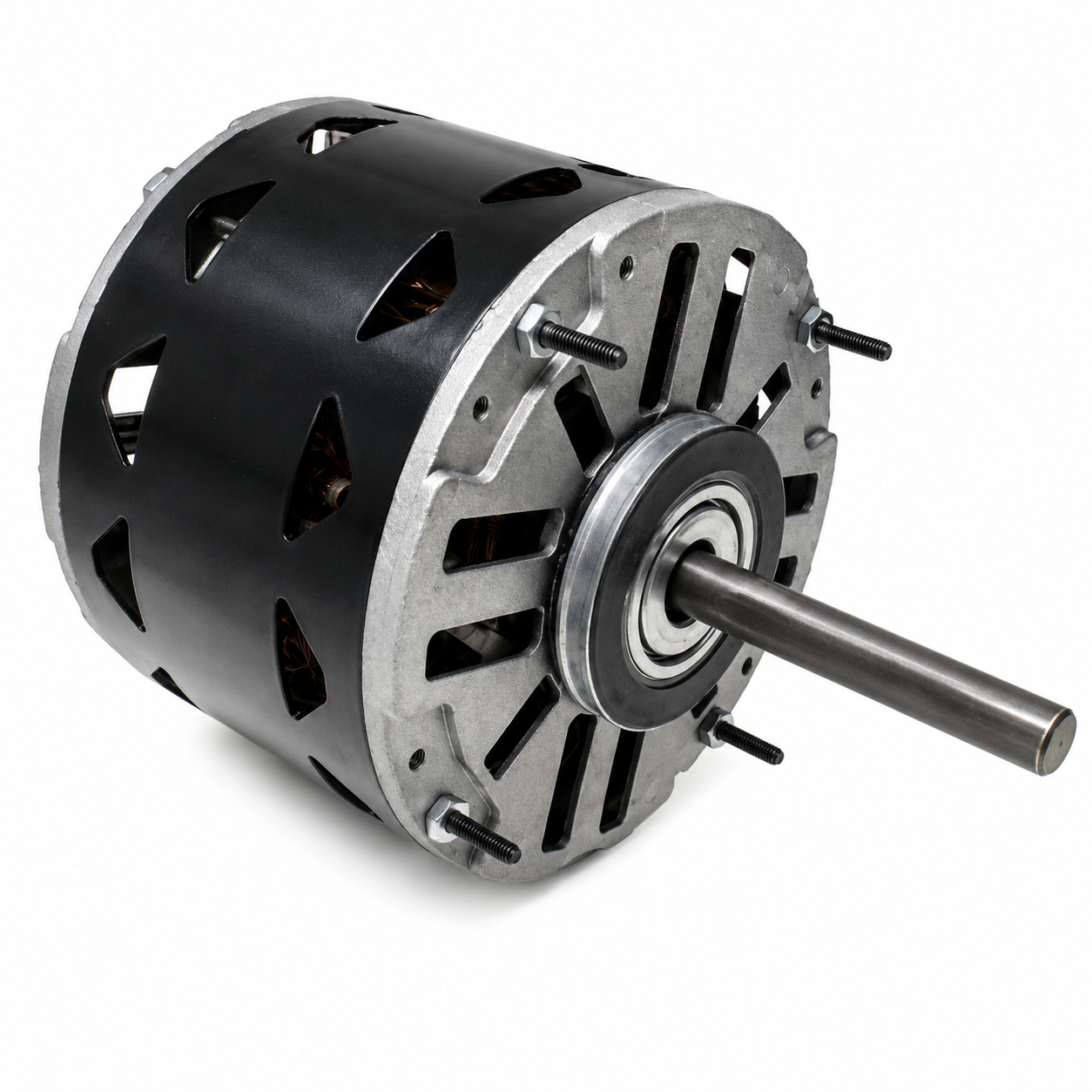

Century Fan & Blower Motors (HVAC/R) EM3583 - 1/4 HP - 115 V - 1075 RPM - Single phase

Century Fan & Blower Motors (HVAC/R) EM3583 - 1/4 HP - 115 V - 1075 RPM - Single phase

$139.00 CAD
$139.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : EM3583

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Thru-Bolt Mount / Resilient Ring

  • Horsepower :1/4
  • Voltage :115
  • Amps :3.50/4.60
  • RPM :1075
  • Frequency :60 Hz
  • Length :4-1/8"
  • "C" Dim. :8-5/8"
  • Enclosure :Open Air Over
  • Shaft Dim. :1/2" x 4-1/2"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Sleeve
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :5MFD-370V
  • Feature(s) :Class 'B' Insulation, Thru-Bolts, 26" Leads
  • Weight (lbs.) :11
  • Reference : Rotom DD-3583, Century Ao Smith DL1026, GE 3583, WG840583, 1863, D721, E2013583 X000, 533, R43583, DD-3583, EM3583
