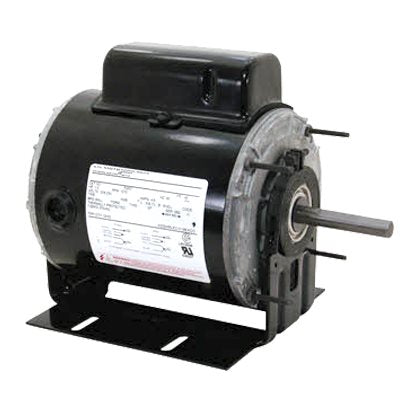

Century Fan & Blower Motors (HVAC/R) C043A - 1/3 HP - 115/230 V - 1725 RPM - Single phase

Century Fan & Blower Motors (HVAC/R) C043A - 1/3 HP - 115/230 V - 1725 RPM - Single phase

$373.00 CAD
$373.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : C043A

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 1725

Voltage : 115/230 V

Phase : Single

Frame : 48Z

Mounting : Resilient Base

  • Horsepower :1/3
  • Voltage :115/230
  • Amps :3.60/1.80
  • RPM :1725
  • Frequency :60 Hz
  • "C" Dim. :10.10"
  • Enclosure :Totally Enclosed, Air Over
  • Shaft Dim. :1/2" x 3-1/8"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48Z
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :10MFD-370V
  • Feature(s) :Class 'B' Insulation, Resilient Base, Extended 10-32 Thru-Bolts 3/4" Past Nut, Fully Gasketed
  • Weight (lbs.) :20
  • References: A.O. Smith F48Y95A01, A.O. Smith C043, A.O. Smith F48Y34A01, Baldor CHC3416A, Dayton 4M252, Leeson 100804, Marathon W48A17T2003, Marathon X025, Universal Electric HF2J035, Universal Electric HF2J071, Universal Electric HF2J7035
