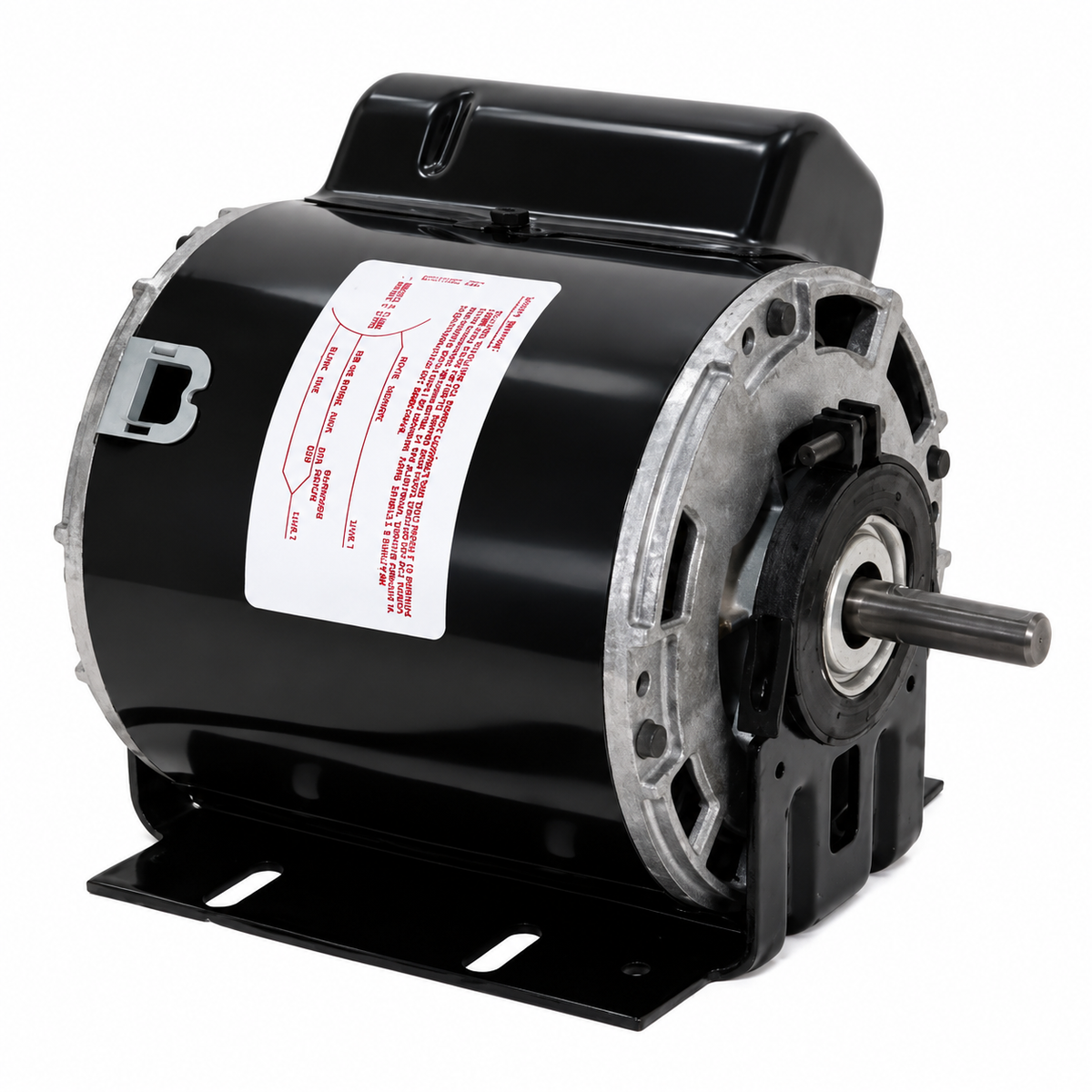

Century Fan & Blower Motors (HVAC/R) 9618A - 1/4 HP - 115 V - 1075 RPM - Single phase

Century Fan & Blower Motors (HVAC/R) 9618A - 1/4 HP - 115 V - 1075 RPM - Single phase

$429.00 CAD
$429.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 9618A

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Resilient Base

  • Horsepower :1/4
  • Voltage :115
  • Amps :3.00
  • RPM :1075
  • Frequency :60 Hz
  • Length :5.00"
  • Enclosure :Semi-Enclosed
  • Shaft Dim. :1/2" x 2-1/8"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Ball
  • Rotation :CWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :7.5MFD-370V
  • Feature(s) :Class 'B' Insulation, Lead & Plug Assembly Supplied, Resilient Base Mounting
  • Weight (lbs.) :20
  • Reference :63261702, 5KCP39PGV873S-S, 5KCP39PGV873S, K55HXUUM-1365, 105676701
