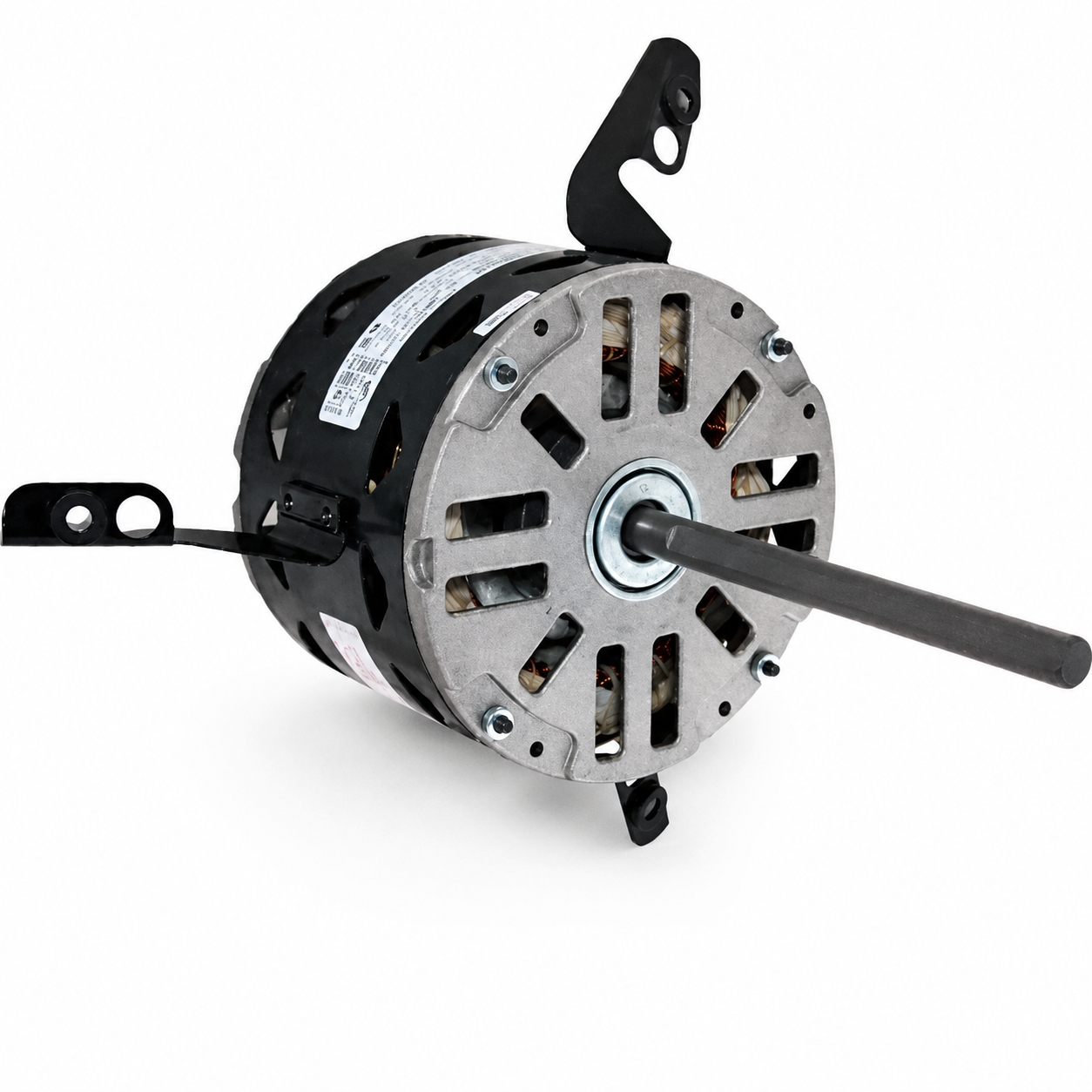

Century Fan & Blower Motors (HVAC/R) 753A - 1/3 HP - 115 V - 1075 RPM - Single phase

Century Fan & Blower Motors (HVAC/R) 753A - 1/3 HP - 115 V - 1075 RPM - Single phase

$345.00 CAD
$345.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 753A

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Bracket Mount

  • Horsepower :1/3
  • Voltage :115
  • Amps :5.60
  • RPM :1075
  • Frequency :60 Hz
  • Length :4-3/4"
  • "C" Dim. :10-1/4"
  • Enclosure :Open Air Over
  • Shaft Dim. :1/2" x 5-1/2"
  • Type :Permanent Split Capacitor
  • Speeds :4
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Sleeve
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :5MFD/370V
  • Feature(s) :Class 'B' Insulation, Flex mount, Reversing plug
  • Weight (lbs.) :17

  • Reference : Johnstone Supply S88-369, A.O. Smith 753, A.O. Smith F48P23A50, A.O. Smith F48Y61A01, A.O. Smith FML1036, Emerson K55HXMSR5950, Dayton 3M874, Dayton 4MB36, Universal Electric 753, Universal Electric HE3J228, Universal Electric HE3J7228
