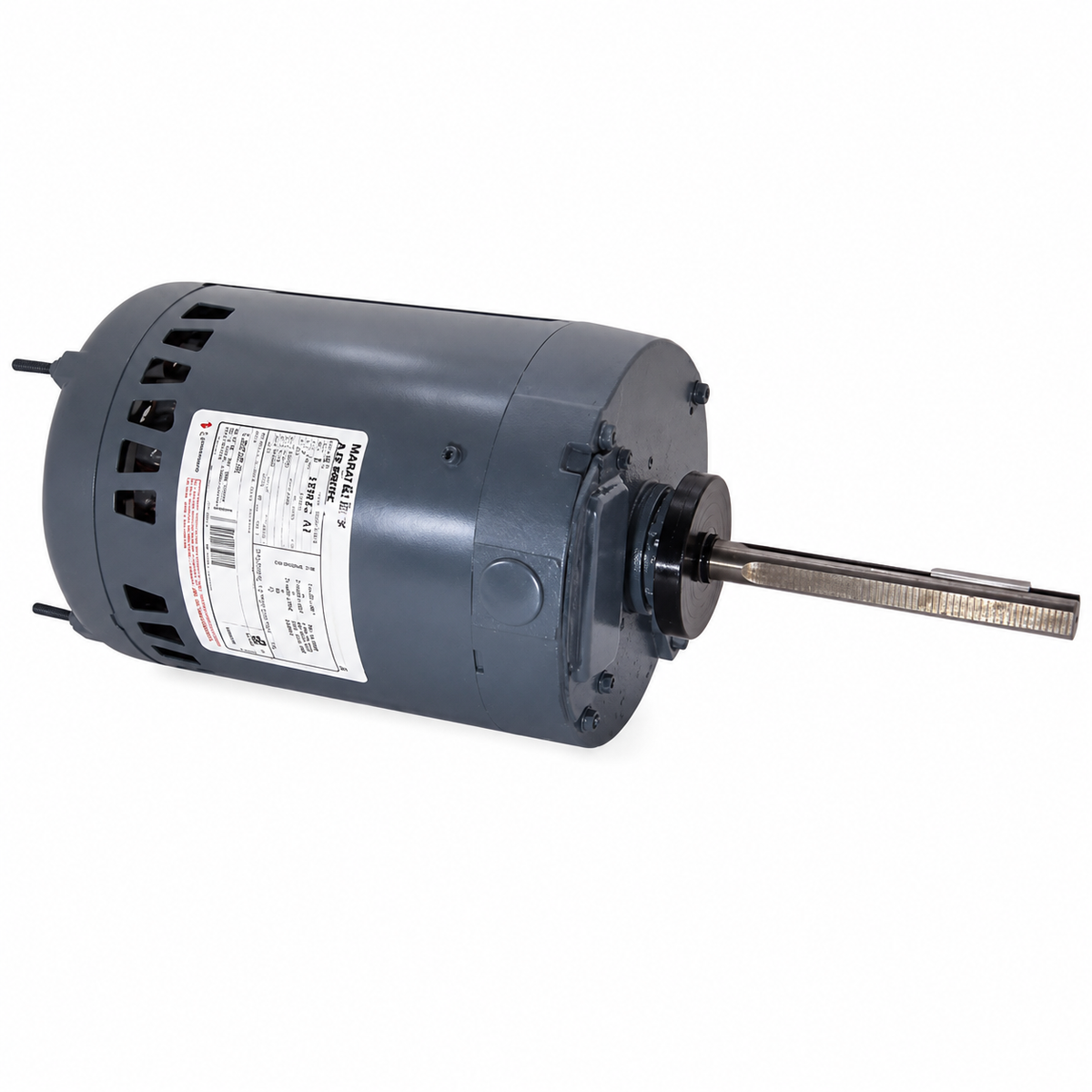

Century Condenser Fan Motors (HVAC/R) H961 - 3/4 HP - 575 V - 1140 RPM - Three phase

Century Condenser Fan Motors (HVAC/R) H961 - 3/4 HP - 575 V - 1140 RPM - Three phase

$632.00 CAD
$632.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : H961

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 3/4 HP

RPM : 1140

Voltage : 575 V

Phase : Three

Frame : 56Y

Mounting : Stud Mount

  • Horsepower :3/4
  • Voltage :575
  • Amps :1.25
  • RPM :1140
  • Frequency :60 Hz
  • Length :10-5/16"
  • "C" Dim. :16-5/16"
  • Enclosure :Open Opposite Shaft-End
  • Shaft Dim. :5/8” x 6.00”
  • Type :Three Phase
  • Speeds :1
  • Diameter :6-1/2"
  • Frame :56Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :60°C
  • Feature(s) :Class 'B' Insulation, Round Body
  • Weight (lbs.) :33
  • Reference : Century 165694 193350, General Electric F378 4J152LBXAS 4J152BX4 4J152BBX8 4J152BX7, U.S. Motors 4958
