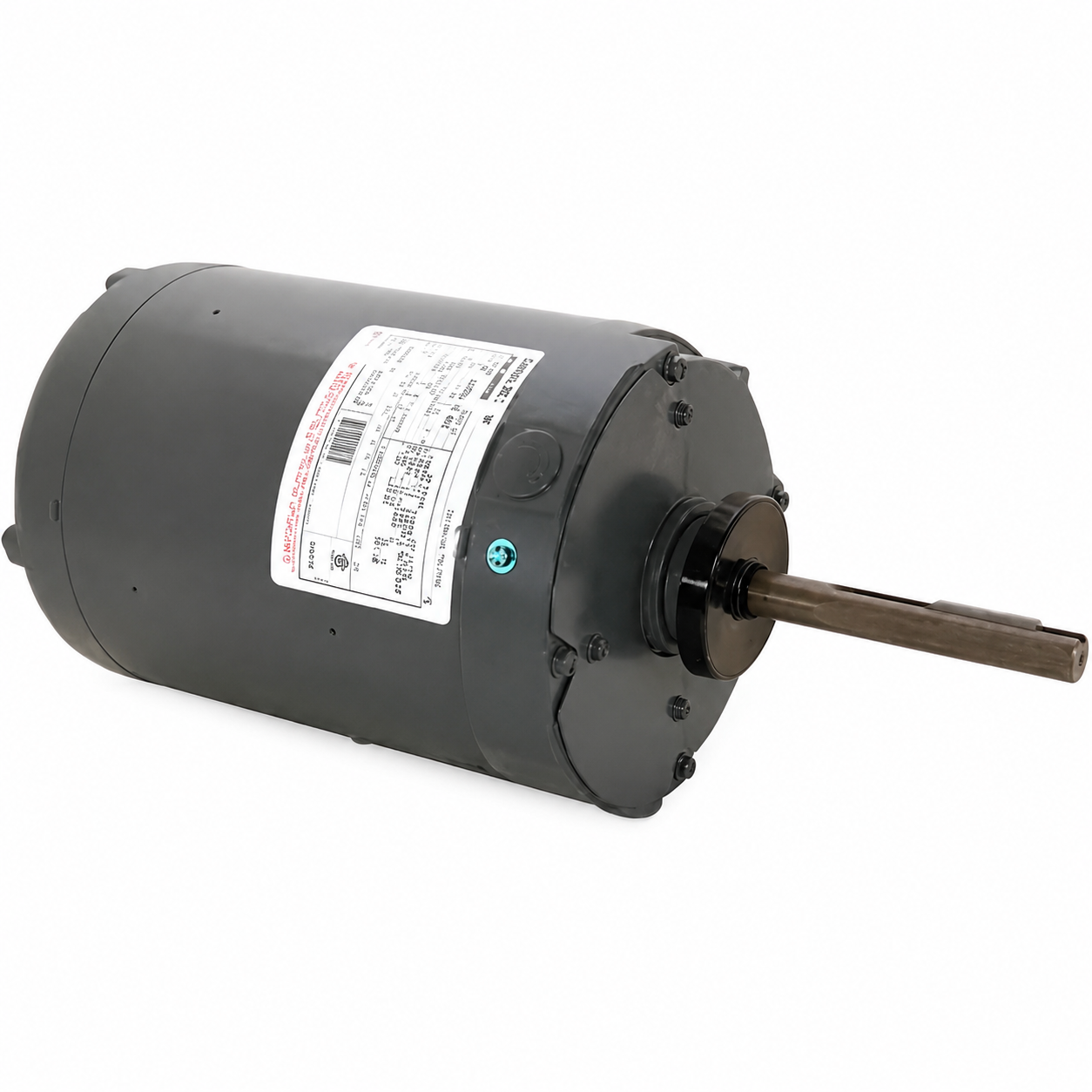

Century Condenser Fan Motors (HVAC/R) H698V1 - 2 HP - 230/460 V - 1140 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) H698V1 - 2 HP - 230/460 V - 1140 RPM - Single phase

$798.00 CAD
$798.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : H698V1

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 2 HP

RPM : 1140

Voltage : 230/460 V

Phase : Three

Frame : 56Y

Mounting : Round Body Mount

  • Horsepower :2
  • Voltage :208-230/460
  • Amps :6.80-6.20/3.10
  • RPM :1140
  • Frequency :60 Hz
  • Length :12"
  • "C" Dim. :15-5/8"
  • Enclosure :Totally Enclosed
  • Shaft Dim. :5/8” x 6.00”
  • Type :Three Phase
  • Speeds :1
  • Diameter :6-1/2"
  • Frame :56Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :3
  • Ambient Temp. :70°C
  • Feature(s) :Class 'B' Insulation, Round Body
  • Weight (lbs.) :44
  • Reference : M0041-2, Blanchard Bohn E5034, Carrier HD52AK654 HD52GE650, Century 173207 176354 177646 181649 186125, Emerson 1822 8987, General Electric 5K49ZN6069 5K49ZN6146 5K49ZN6201 5K49ZN6254 5K49ZN6256, Marathon X509, Rotom T2544
