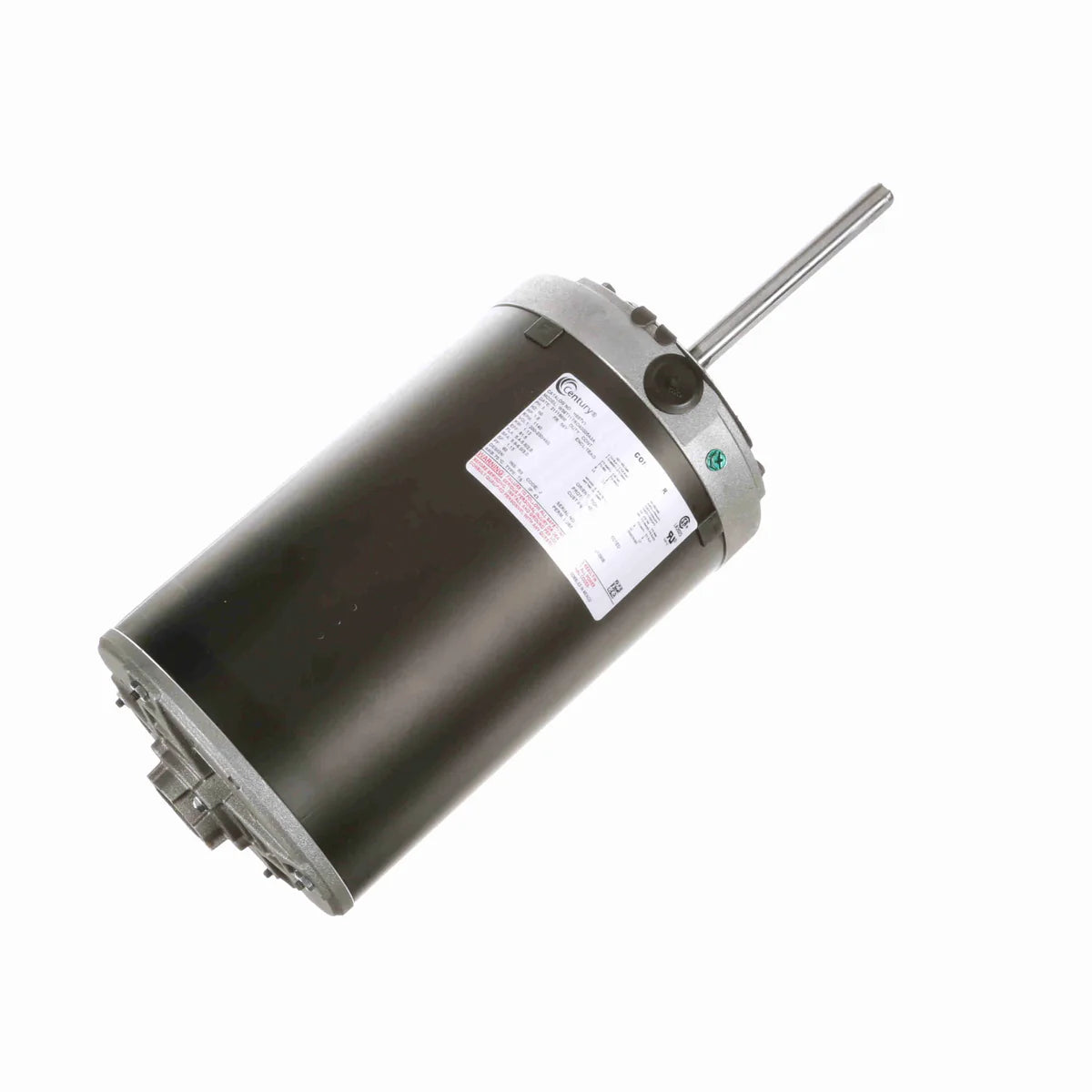

Century Condenser Fan Motors (HVAC/R) H697V1 - 1.5 HP - 230/460 V - 1140 RPM - Three phase

Century Condenser Fan Motors (HVAC/R) H697V1 - 1.5 HP - 230/460 V - 1140 RPM - Three phase

$1,125.00 CAD
$1,125.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : H697V1

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1.5 HP

RPM : 1140

Voltage : 230/460 V

Phase : Three

Frame : 56Y

Mounting : Round / Band Mount

  • Horsepower :1.5
  • Voltage : 230/460
  • Amps :2.60/5.40-5.20
  • RPM :1140
  • Frequency :60 Hz
  • Length :11-1/4"
  • "C" Dim. :17-7/16"
  • Enclosure :Totally Enclosed Air Over
  • Shaft Dim. :5/8" x 6-3/16"
  • Type :Three Phase
  • Speeds :1
  • Diameter :6-1/2"
  • Frame :56Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :3
  • Ambient Temp. :70°C
  • Feature(s) :No Base, Class 'B' Insulation
  • Weight (lbs.) :39
