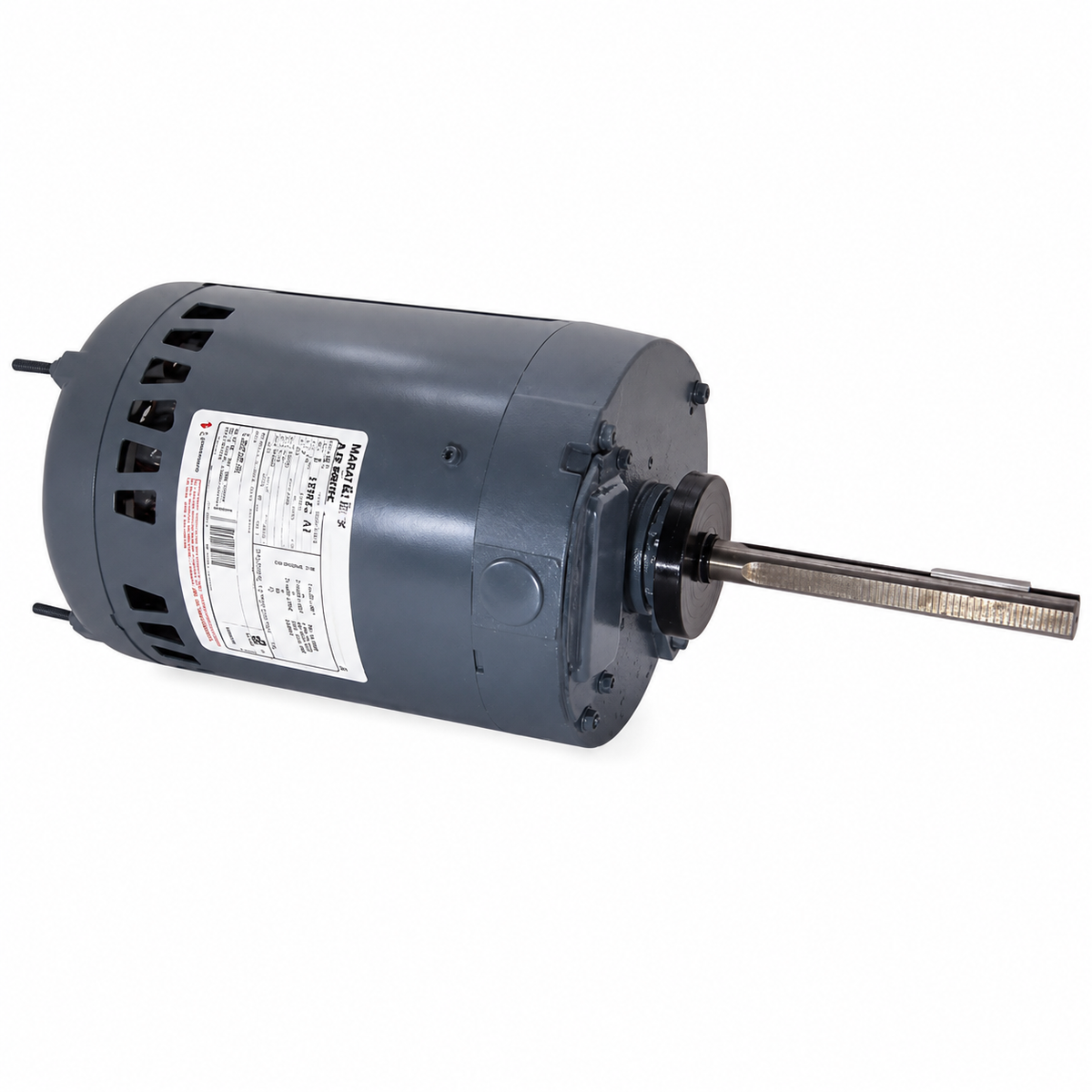

Century Condenser Fan Motors (HVAC/R) H686 - 1 HP - 230/460 V - 850 RPM - Three phase

Century Condenser Fan Motors (HVAC/R) H686 - 1 HP - 230/460 V - 850 RPM - Three phase

$820.00 CAD
$820.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : H686

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1 HP

RPM : 850

Voltage : 230/460 V

Phase : Three

Frame : 56Y

Mounting : Stud Mount

  • Horsepower :1
  • Voltage :200-230/460
  • Amps :4.40-4.00/2.00
  • RPM :850
  • Frequency :60 Hz
  • Length :9-3/8"
  • "C" Dim. :14-1/4"
  • Enclosure :Open Opposite Shaft End
  • Shaft Dim. :5/8” x 4-7/8”
  • Type :Three Phase
  • Speeds :1
  • Diameter :6-1/2"
  • Frame :56Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :3
  • Ambient Temp. :60°C
  • Feature(s) :Class 'B' Insulation, Round Body, No keyway, Double flat
  • Weight (lbs.) :32

  • Reference : A.O. Smith 182513 EB3054, Blanchard Bohn E5026 E5028, Century 165138 165831 182513 164591 182513 184234, Dayton 4ME24, Dayton 5U263, Emerson P63SYABY1158 1828, General Electric K1482 3J786FB, Johnstone Supply S88-661, Marathon 145TTDR717A X507, Rotom T2537, Universal Electric 722, M0036-1
