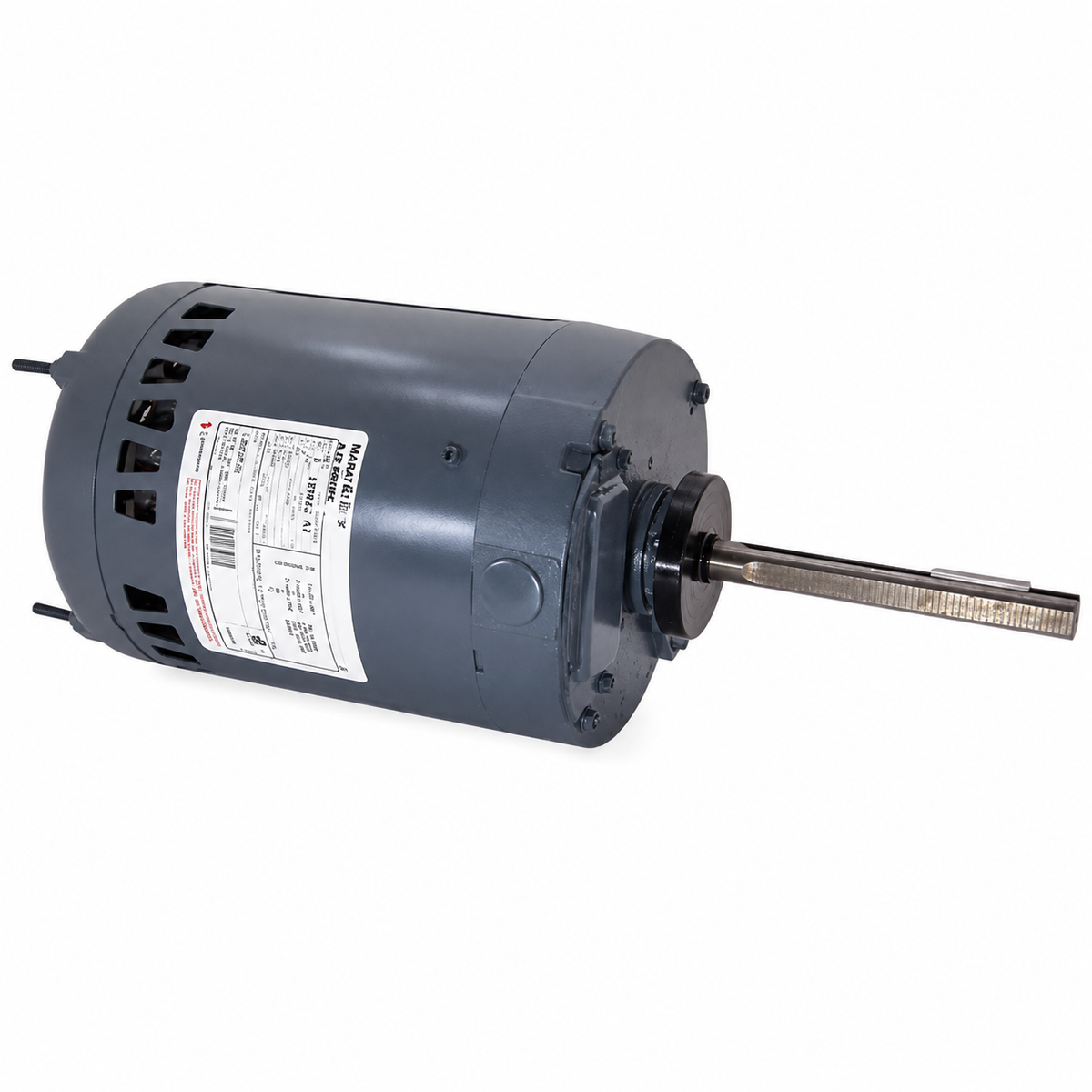

Century Condenser Fan Motors (HVAC/R) H564 - 1/2 HP - 230/460 V - 1140 RPM - Three phase

Century Condenser Fan Motors (HVAC/R) H564 - 1/2 HP - 230/460 V - 1140 RPM - Three phase

$615.00 CAD
$615.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : H564

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1140

Voltage : 230/460 V

Phase : Three

Frame : 56Y

Mounting : Belly Band Mount

  • Horsepower :1/2
  • Voltage : 230/460
  • Amps :2.80-2.60/1.30
  • RPM :1140
  • Frequency :60 Hz
  • Length :10-5/16"
  • "C" Dim. :16-5/16"
  • Enclosure :Open Opposite Shaft-End
  • Shaft Dim. :5/8” x 6.00”
  • Type :Three Phase
  • Speeds :1
  • Diameter :6-1/2"
  • Frame :56Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :3
  • Ambient Temp. :60°C
  • Feature(s) :Class 'B' Insulation, Round Body
  • Weight (lbs.) :27
  • Reference : A.O. Smith 182752, Baldor CFM3136A, Century 165951, Century 182752, GE 5K46LN6032AS, GE 5K46LN6032S, GE 5K49QG2723, Dayton 4MB87, Johnstone Supply S88-153, Leeson 116772, Mcquay/Snyder Gen 879-426462-00, Emerson K3568, Dayton 3N760, Marathon W56T1105300, Marathon X500, Universal Electric 717, Rotom T2532, Marathon X500, General Electric K578
