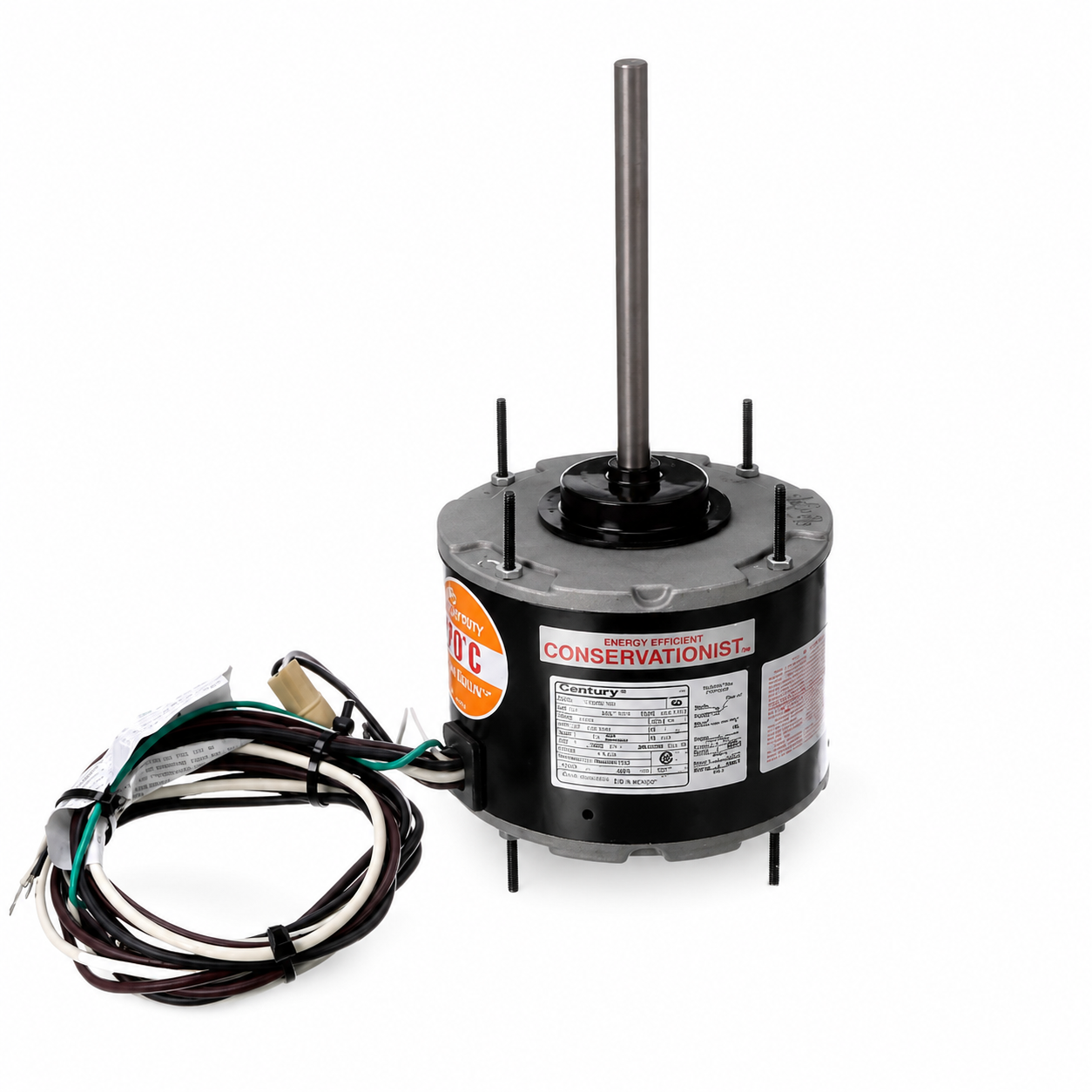

Century Condenser Fan Motors (HVAC/R) FSE1036SF - 1/3 HP - 208/230 V - 1075 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) FSE1036SF - 1/3 HP - 208/230 V - 1075 RPM - Single phase

$208.00 CAD
$208.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : FSE1036SF

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Stud Mount

  • Horsepower :1/3
  • Voltage :208-230
  • Amps :2.80
  • RPM :1075
  • Frequency :60 Hz
  • Length :4-7/8"
  • "C" Dim. :11-3/8"
  • Enclosure :Totally Enclosed Air Over
  • Shaft Dim. :1/2" x 6"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Sleeve
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :70°C
  • Capacitor Rating :7.5MFD-370V
  • Feature(s) :Class 'F' Insulation, HeatMaster, Thru-Bolts, 36" leads
  • Weight (lbs.) :16
