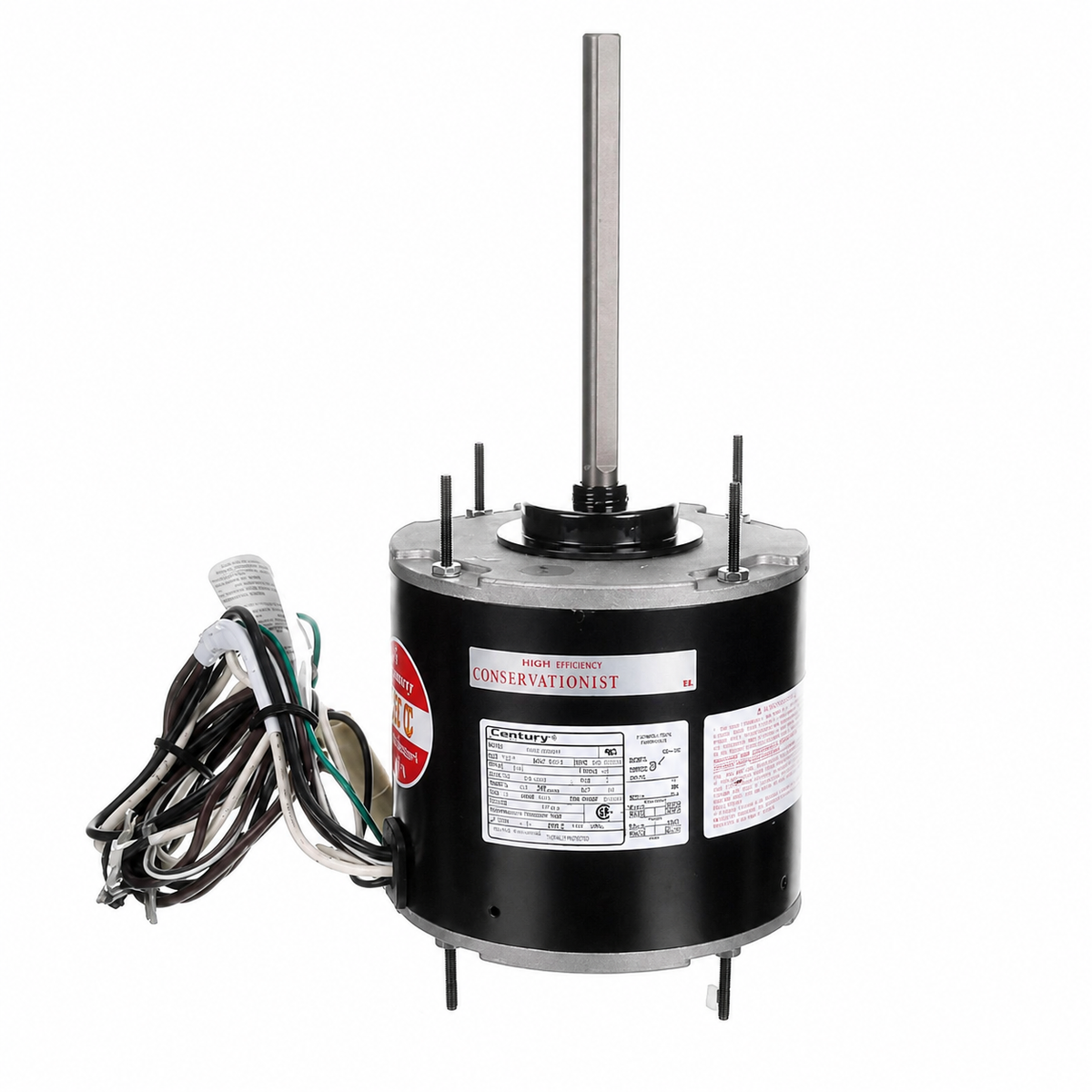

Century Condenser Fan Motors (HVAC/R) FE1076SU - 3/4 HP - 208/230 V - 1075 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) FE1076SU - 3/4 HP - 208/230 V - 1075 RPM - Single phase

$407.00 CAD
$407.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : FE1076SU

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 3/4 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Belly Band / Stud

  • Horsepower :3/4
  • Voltage :208-230
  • Amps :5.1
  • RPM :1075
  • Frequency :60 Hz
  • "C" Dim. :12.99"
  • Enclosure :TEAO
  • Shaft Dim. :1/2" x 6.5"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1
  • Phase :1
  • Ambient Temp. :80°C
  • Capacitor Rating :15MFD @ 370V
  • Feature(s) :48" Leads, Class F Insulation, 80°C Ambient
  • Weight (lbs.) :18
  • Reference : Century EM3731F, eMotoreK 3731E, Fasco D931, U.S. Motors 1879
