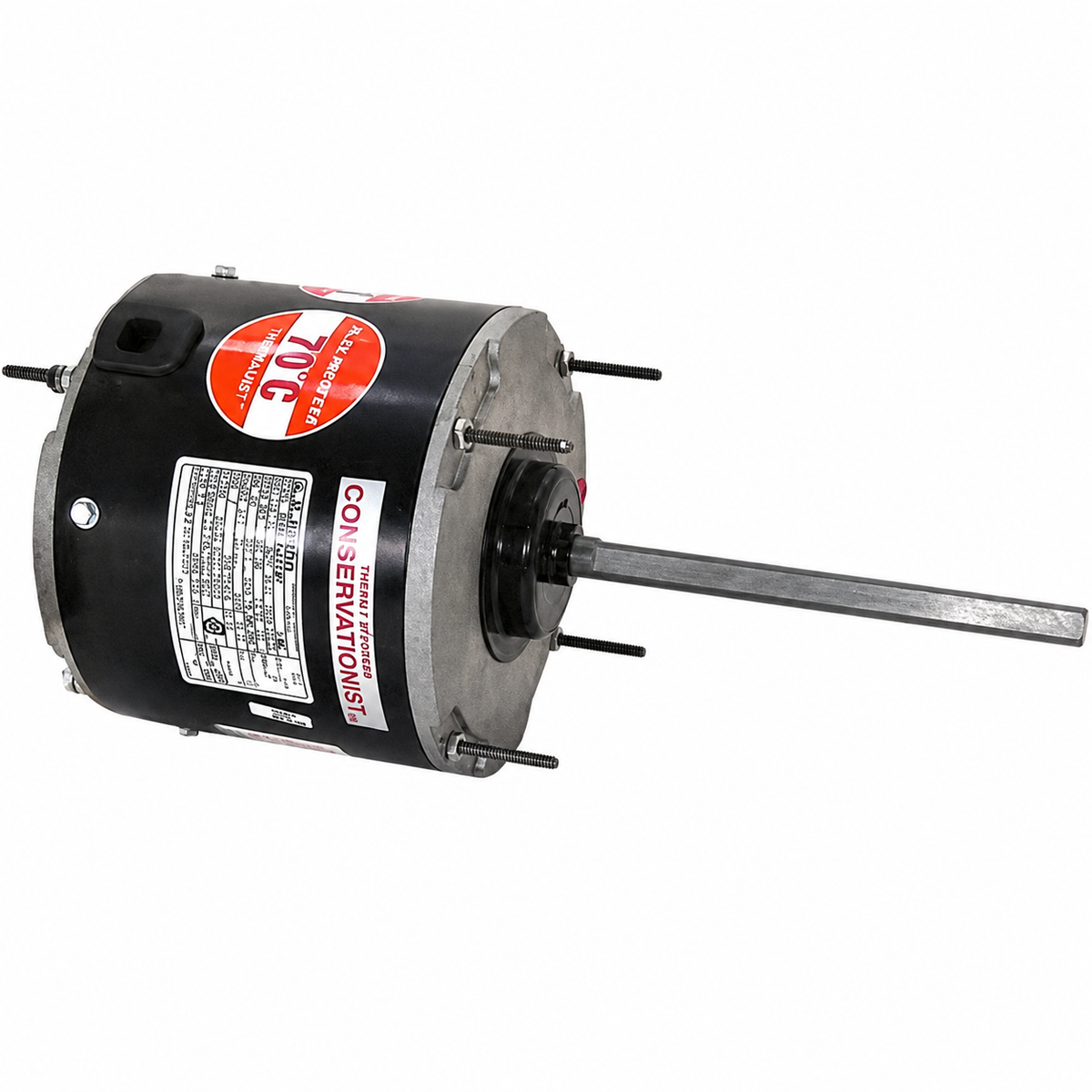

Century Condenser Fan Motors (HVAC/R) FE1056SF - 1/2 HP - 208-230 V - 1075 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) FE1056SF - 1/2 HP - 208-230 V - 1075 RPM - Single phase

$259.00 CAD
$259.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : FE1056SF

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48Y

Mounting : Stud Mount

  • Horsepower :1/2
  • Voltage :208-230
  • Amps :4.00
  • RPM :1075
  • Frequency :60 Hz
  • Length :5-3/8"
  • "C" Dim. :11-7/8"
  • Enclosure :Totally Enclosed Air Over
  • Shaft Dim. :1/2" x 6-1/2"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :60°C
  • Capacitor Rating :10MFD-370V
  • Feature(s) :Class 'F' Insulation, HeatMaster, Thru-Bolts, 48" Leads
  • Weight (lbs.) :18
  • Reference : A.O.Smith F48AD52A01 F48U25A01, M0028-1, G.E. 3734, CF-3734
