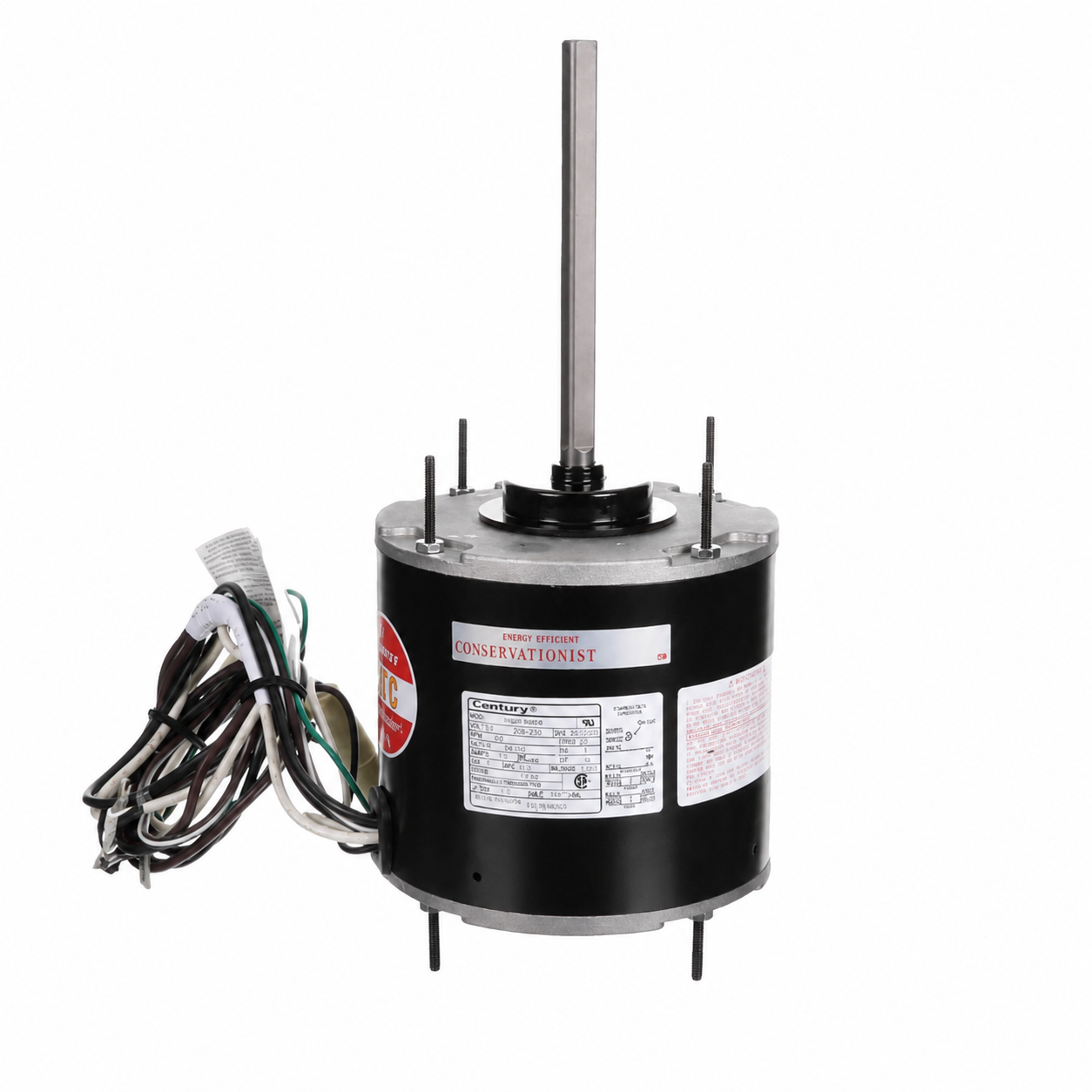

Century Condenser Fan Motors (HVAC/R) FE1038SU - 1/3 HP - 208/230 V - 825 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) FE1038SU - 1/3 HP - 208/230 V - 825 RPM - Single phase

$397.00 CAD
$397.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : FE1038SU

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 825

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Stud Mount

• HP: 1/3
• Voltage: 208-230
• RPM: 825
• AMPs: 1.6
• Phase: 1
• Rotation: Reversible
• Frame: 48
• Enclosure: Totally Enclosed
• Speeds: 1
• Protector: Thermally Protected
• Ambient Temp: 80°C
• Service Factor: 1.00
• Shaft Dimensions: 0.500 in X 6.5 in
• Frequency: 60Hz
• Diameter: 5.5 in
• Length: 4.50 in
• Bearings: Ball
• Features: Class F Insulation, 48" Leads, Extended Studs Shaft End, Mounting Holes in Shell, Belly Band, 4.33BC Lead End End-Frame
• Weight: 16 lbs
• Reference : A.O. Smith F48E03A01, Emerson K55HXLEW9981
