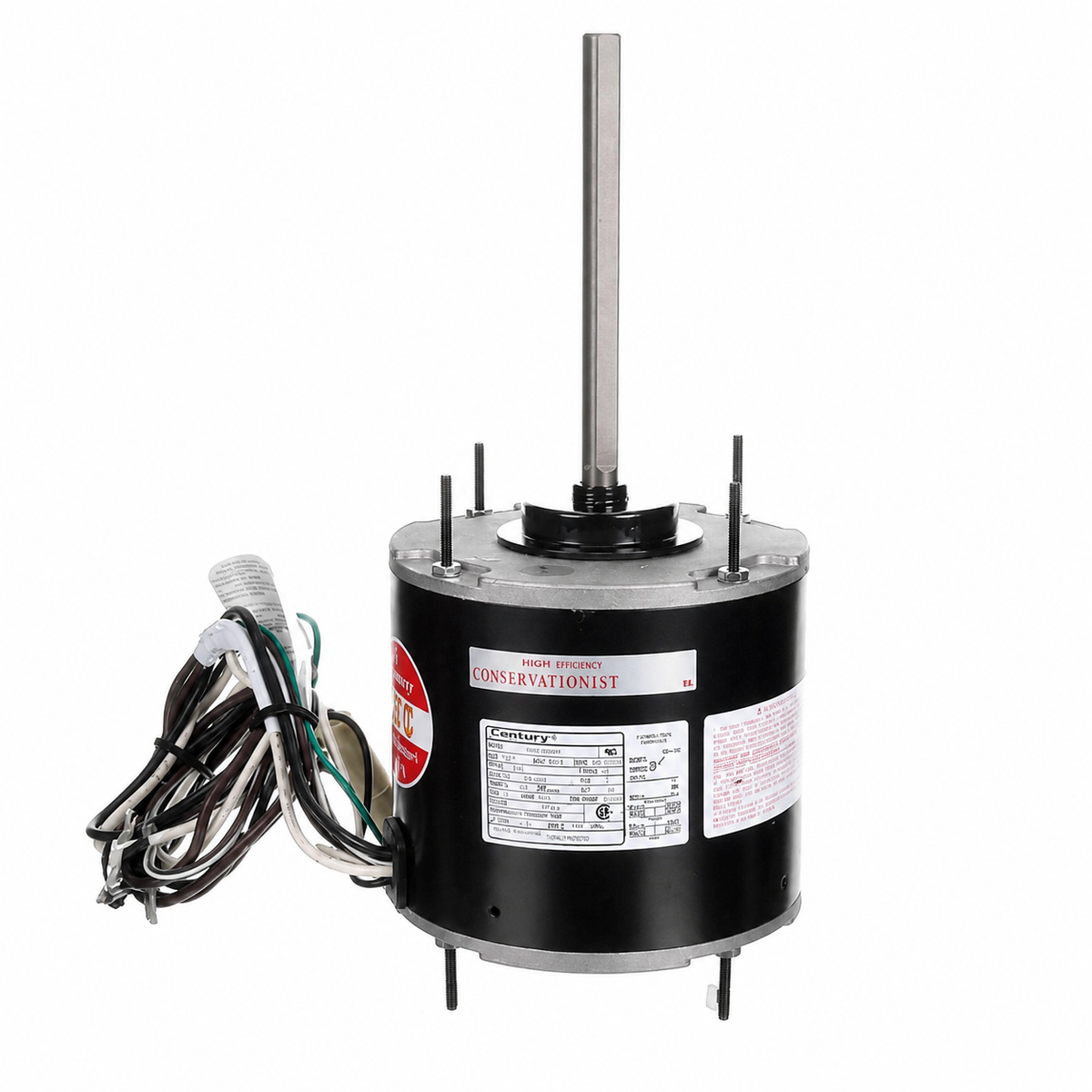

Century Condenser Fan Motors (HVAC/R) FE1028SU - 1/4 HP - 208/230 V - 825 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) FE1028SU - 1/4 HP - 208/230 V - 825 RPM - Single phase

$412.00 CAD
$412.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : FE1028SU

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 825

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Belly Band / Stud

  • Horsepower :1/4
  • Voltage :208-230
  • Amps :1.50
  • RPM :825
  • Frequency :60Hz
  • Length :4-5/8"
  • "C" Dim. :11-1/8"
  • Enclosure :TEAO
  • Shaft Dim. :1/2” x 5 1/2”
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :80°C
  • Capacitor Rating :5MFD-370V
  • Feature(s) :Class 'F' Insulation, HeatMaster, Thru-Bolts, 48" Leads
  • Weight (lbs.) :15
  • Reference : Century EM3404F, Marathon X450, eMotoreK SS739B
