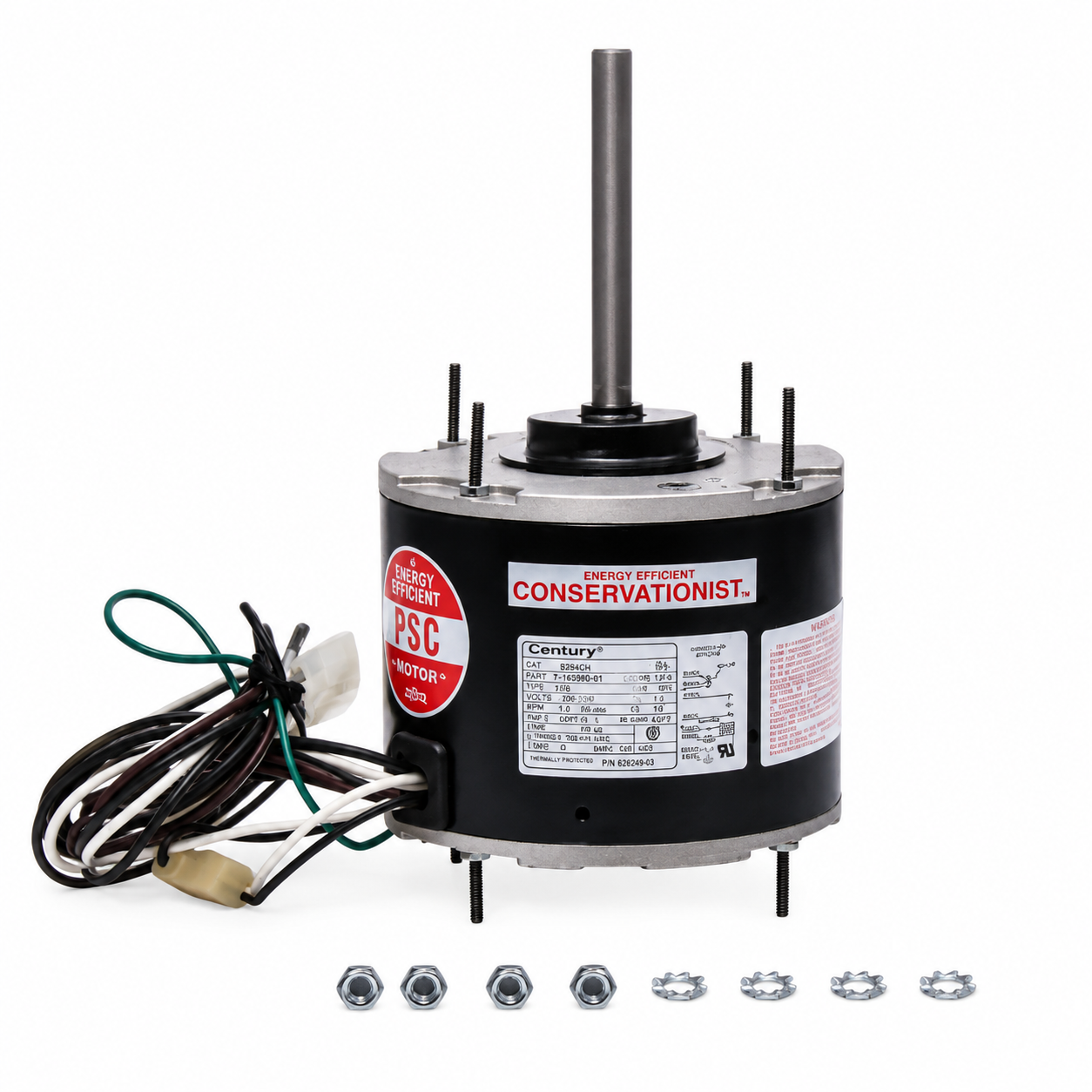

Century Condenser Fan Motors (HVAC/R) FE1026SU - 1/4 HP - 208/230 V - 1075 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) FE1026SU - 1/4 HP - 208/230 V - 1075 RPM - Single phase

$273.00 CAD
$273.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : FE1026SU

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Stud Mount

• HP : 1/4
• Voltage : 208-230
• RPM : 1075
• AMPs : 1.9
• Phase : 1
• Rotation : Reversible
• Frame : 48
• Enclosure : Totally Enclosed
• Speeds : 1
• Protector : Thermally Protected
• Ambient Temp : 80°C
• Service Factor : 1.00
• Shaft Dimensions : 0.500 X 6.5 in
• Frequency : 60Hz
• Diameter : 5.5 in
• Length : 3.75 in
• Bearings : Ball
• Features : Class F Insulation, 48" Leads, Extended Studs Shaft End, Mounting Holes in Shell, Belly Band, 4.33BC Lead End End-Frame
• Weight (lbs) : 13
• Cross References : Century EM3728F, 3728E
