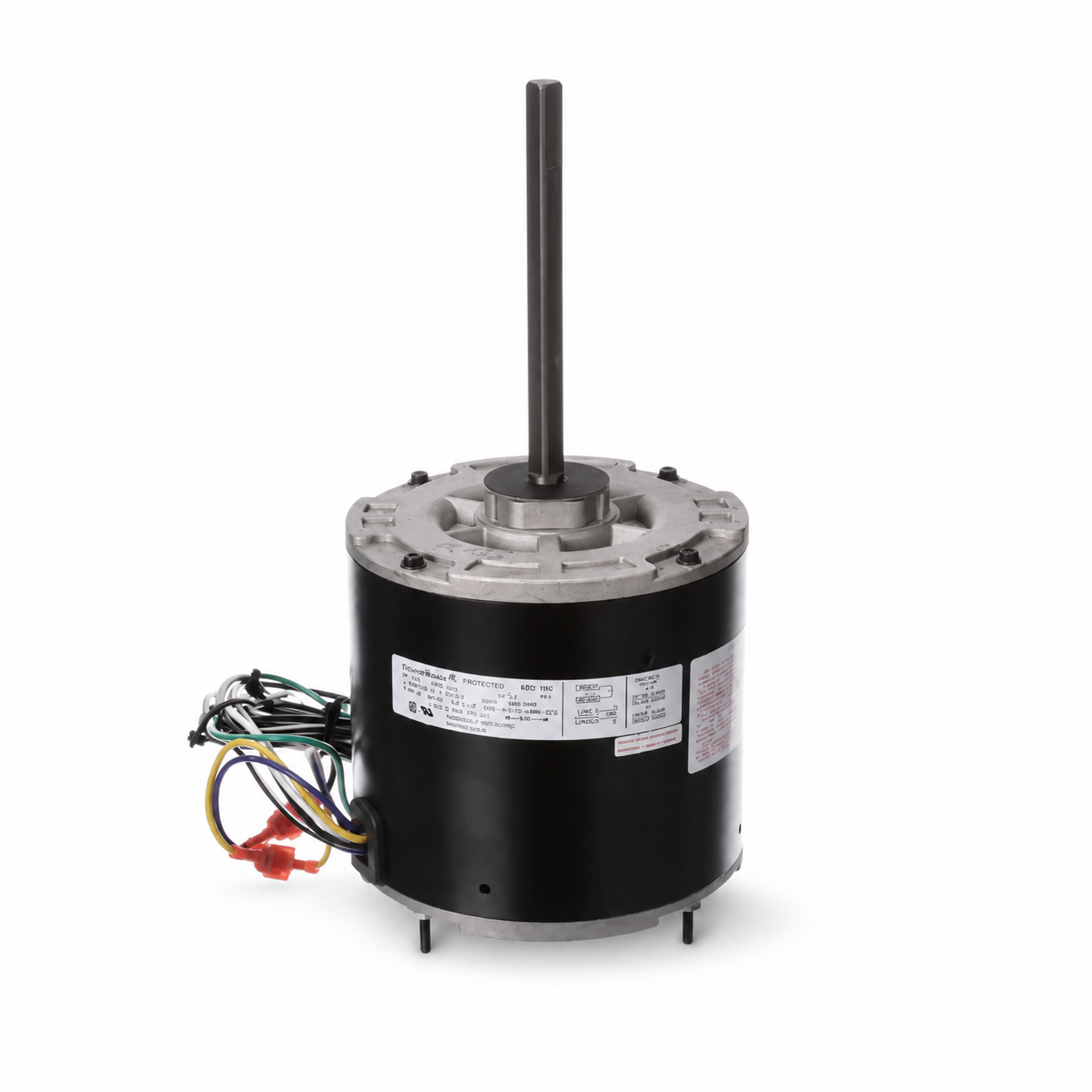

Century Condenser Fan Motors (HVAC/R) EM3707F - 1/2 HP - 208/230 V - 1075 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) EM3707F - 1/2 HP - 208/230 V - 1075 RPM - Single phase

$219.00 CAD
$219.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : EM3707F

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Belly Band / Stud

  • Horsepower :1/2
  • Voltage :208-230
  • Amps :3.50
  • RPM :1075
  • Frequency :60 Hz
  • Length :5-1/8"
  • Enclosure :Totally Enclosed
  • Shaft Dim. :1/2" x 6"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :70°C
  • Capacitor Rating :10MFD-370V
  • Feature(s) :No Base, Class 'F' Insulation, Thru Bolts Included
  • Weight (lbs.) :17
  • Reference : 3730F, 187, FE1056SC, FSE1056SV1, X414, D907, R22187
