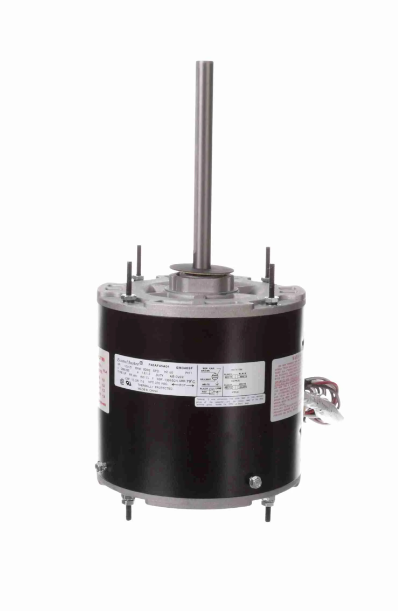

Century Condenser Fan Motors (HVAC/R) EM3469F - 1/3 HP - 208/230 V - 825 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) EM3469F - 1/3 HP - 208/230 V - 825 RPM - Single phase

$225.00 CAD
$225.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : EM3469F

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 825

Voltage : 208/230 V

Phase : Single

Frame : 48Y

Mounting : Stud Mount

• HP: 1/3 - 1/5
• Voltage: 208/230
• RPM: 825
• Current (Amp): 1.90 - 1.20
• Phase: 1
• Rotation: Reversible
• Frame: 48Y
• Enclosure: Totally Enclosed
• Speeds: 2
• Protector: Automatic
• Ambient Temp: 70°C
• Service Factor: 1.00
• Shaft Dimensions: 0.50 in X 6.00 in
• Frequency: 60Hz
• Diameter: 5.5 in
• Frame Length: 11.84 in
• Bearings: Ball
• Capacitor Rating: 7.5Mfd-370Vac or 10Mfd-370Vac
• Reference : A.O. Smith F48AE79A01, General Electric 5KCP39PFBE40
