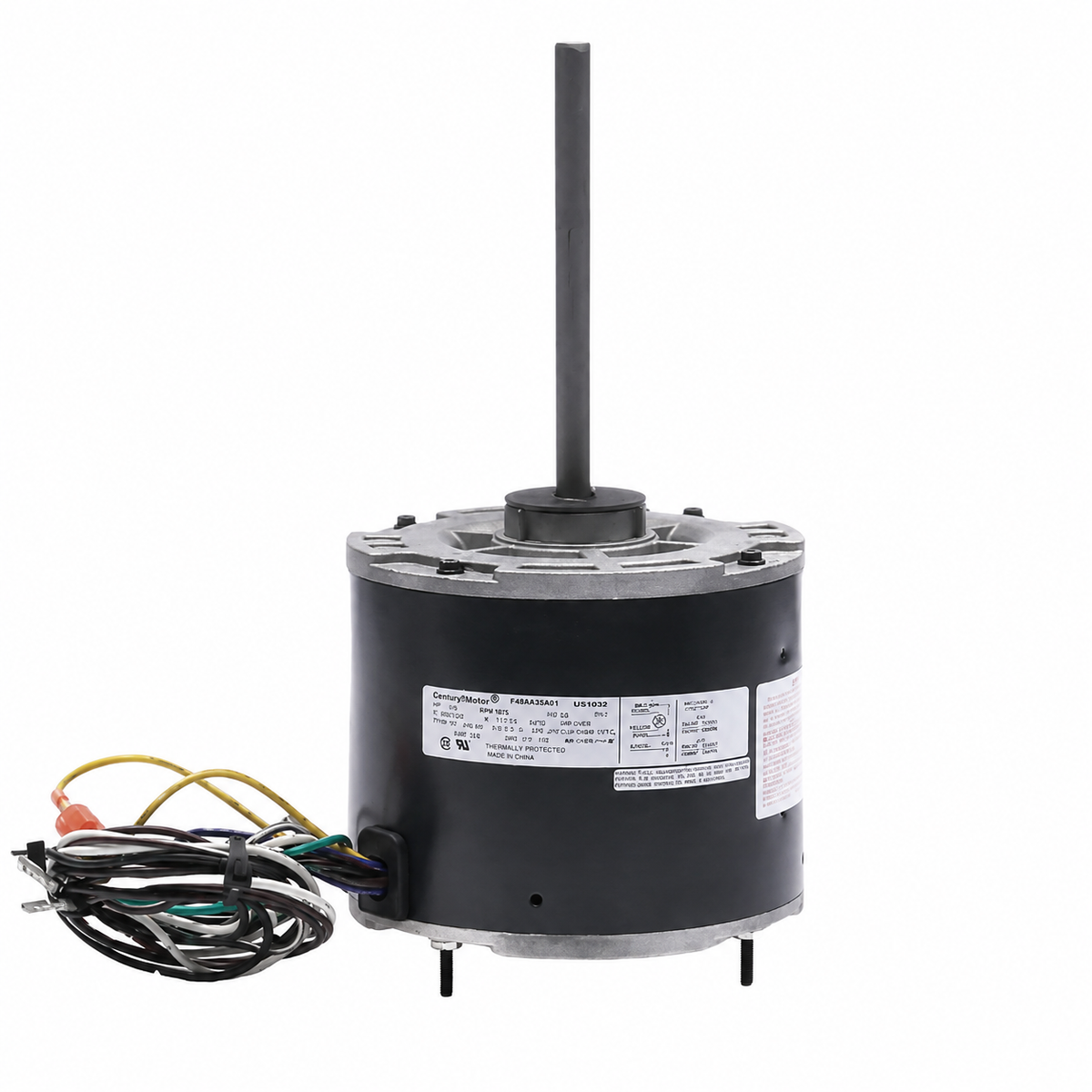

Century Condenser Fan Motors (HVAC/R) EM3403F - 1/6 HP - 208/230 V - 825 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) EM3403F - 1/6 HP - 208/230 V - 825 RPM - Single phase

$224.00 CAD
$224.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : EM3403F

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/6 HP

RPM : 825

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Stud Mount

  • Horsepower :1/6
  • Voltage :208/230
  • Amps :1.10
  • RPM :825
  • Frequency :60 Hz
  • Length :4-1/8"
  • Enclosure :Totally Enclosed
  • Shaft Dim. :1/2" x 6"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :60°C
  • Capacitor Rating :5MFD-370VAC
  • Feature(s) :No Base, Class 'B' Insulation, Thru Bolts Included
  • Weight (lbs.) :12
